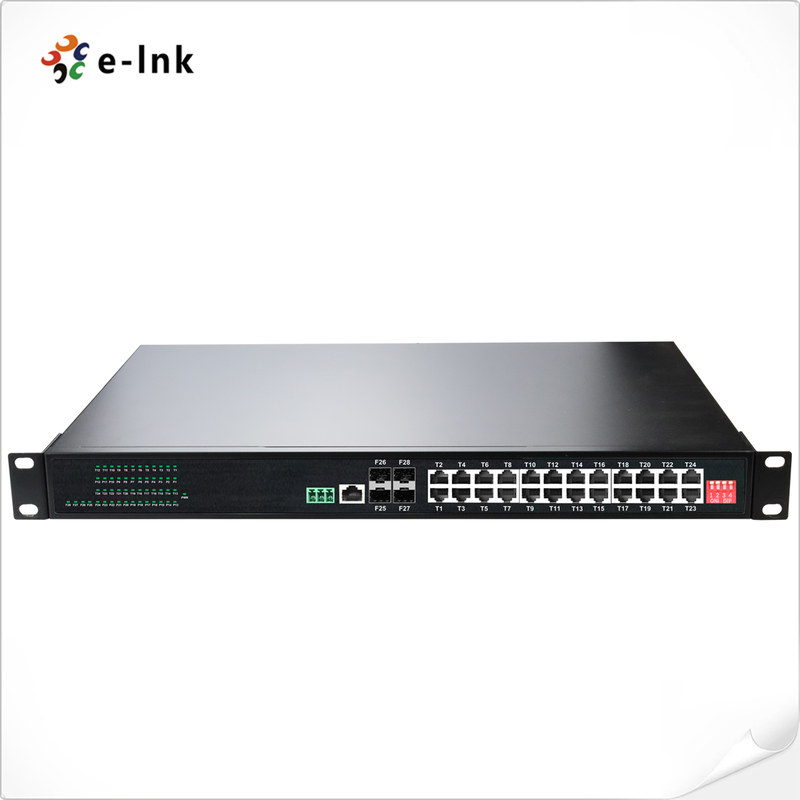

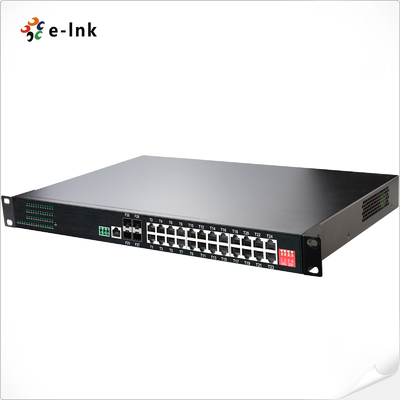

Industrial L2+ Rackmount 24-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFP Managed Ethernet Switch
Industrial Managed Ethernet Switch Overview
The ETH-IMC2424MP Series is a ruggedized, L2+ managed, rack-mountable switch featuring
24 10/100/1000Base-T RJ45 ports with 802.3at PoE+ support and 4x 1000Base-X SFP fiber slots.
Designed for harsh environments, the switch delivers high-power PoE to multiple devices,
such as IP cameras and wireless access points. It provides flexible fiber uplink connectivity
(single-mode and multi-mode) and offers advanced management capabilities for reliable network
integration in industrial and remote applications.
Industrial Managed Ethernet Switch Features
►Provides 24×10/100/1000Base-T RJ45 ports, 4×1000Base-X SFP slots, and 1×RS485 interface
►RJ45 ports support 10/100/1000Mbps full/half-duplex, auto-negotiation, and Auto MDI/MDIX
►IEEE 802.3af/at compliant for PoE applications
►DIP switch functions: one-key VLAN, one-key ring management, PoE reset, and extended 250m PoE transmission
►USB-C management port for simplified configuration, eliminating the need for RS232 serial access
►Supports 10K Jumbo Frames for enhanced data transfer performance
►Compliant with IEEE 802.3az Energy Efficient Ethernet (EEE)
►Durable IP40-rated aluminum enclosure for industrial use
►Supports 1U 19” rackmount installation for flexible deployment
►Wide operating temperature range: -40°C to 80°C (-40°F to 176°F)
Industrial Managed Ethernet Switch Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.3 10BASE-T
|
|
IEEE802.3u 100BASE-TX/FX
|
|
IEEE802.3ab 1000BASE-T
|
|
IEEE802.3z 1000BASE-X
|
|
IEEE802.3p QoS
|
|
IEEE802.1d Spanning Tree
|
|
Forward & Filtering Rate:
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
1,488,000pps (1000Mbps)
|
|
Packet Buffer Memory:
|
12M bits
|
|
Processing Type:
|
Store-and-Forward
|
|
Backplane bandwidth
|
110Gbps
|
|
Max Packet Length:
|
10K Bytes Jumbo Frame
|
|
Address Table Size:
|
8K MAC Addresses
|
|
Interface
|
|
Connector:
|
24 x RJ45
|
|
RS485:
|
1 x RS485 (Optional)
|
|
Optical Port:
|
4 x 1000Base-X SFP
|
|
USB-C:
|
1 x USB-C (for Management)
|
|
RS485 Serial Interface (Optional)
|
|
Physical interface
|
Industrial standard 3-pin screw terminal
|
|
Data type
|
1Ch RS485 Bi-Direction
|
|
RS-485 signals
|
Data+, Data-, GND
|
|
Serial port line distance (copper)
|
1000 meters
|
|
Baud rate
|
0 ~ 800kbps
|
|
PoE (Power over Ethernet)
|
|
Standard:
|
IEEE 802.3at Power over Ethernet Plus
|
|
IEEE 802.3af Power over Ethernet
|
|
Port:
|
RJ45
|
|
Power Pin Assignment
|
4/5(+), 7/8(-)
|
|
PoE Budget:
|
Up to 720-watt PoE budget
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 80°C (-40°F to 176°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Electrical and Mechanical
|
|
Input Power:
|
48~57VDC, Redundant Power (6-pin Terminal Block)
|
|
Power Consumption:
|
15W Max.(PoE in Use<720W)
|
|
Protection:
|
|
Power Input Overload:
|
Automatic Resettable
|
|
Reverse Polarity:
|
Present
|
|
DIP Switch
|
|
4-digit DIP switch function
|
DIP
|
Function
|
Settings
|
|
SW 1
|
VLAN
|
ON - Enabled
|
OFF - Disabled
|
|
SW 2
|
Ring Management
|
ON - Enabled
|
OFF - Disabled
|
|
SW 3 (to be upgraded)
|
250m PoE Network
|
ON - Enabled
|
OFF - Disabled
|
|
SW 4 (to be upgraded)
|
PoE Reset
|
ON - Enabled
|
OFF - Disabled
|
|
LED Indicators:
|
|
PWR:
|
Power Status
|
|
Ethernet (Per Port):
|
Link/Activity
|
|
PoE
|
PoE Status (T1~T24)
|
|
Fiber:
|
Gigabit SFP Port: F1~F4
|
|
Dimensions (L x W x H):
|
440mm x 300mm x 45mm
|
|
Weight:
|
3.5Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
Rackmount
|
|
Software Features
|
|
Redundancy Protocols
|
Support STP/RSTP/MSTP/ERPSv2, Link Aggregation
|
|
Multicast Support
|
Support IGMP Snooping V1/V2/V3,support GMRP, GVMP,802.1Q
|
|
VLAN
|
Support IEEE 802.1Q 4K VLAN,support QINQ, Double VLAN,
|
|
Time Management
|
SNTP
|
|
QOS
|
Flow-based redirection
Flow-based rate limiting
Flow-based packet filtering
8*Output queues of each port 802.1p/DSCP priority mapping
Diff-Serv QoS, Priority Mark/Remark
Queue Scheduling Algorithm (SP, WRR, SP+WRR)
|
|
ACL
|
Port-based Issuing ACL
ACL based on port and VLAN
L2 to L4 packet filtering, matching first 80 bytes message.
Provide ACL based on MAC, Destination MAC address, IP Source, Destination IP, IP Protocol Type, TCP/UDP Port, TCP/UDP Port Range, and VLAN, etc
|
|
PoE Management
|
Total power limit of PoE power supply
PoE output power allocation
PoE output priority configuration
PoE working status
Scheduling of PoE operation
|
|
Diagnostic Maintenance
|
Support port mirroring, Syslog, Ping
|
|
Management Function
|
Support CLI, WEB, SNMPv1/v2/v3, Telnet server for management, EEE, LLDP, DHCP Server/Client (IPv4/IPv6), Cloud/MQTT
|
|
Alarm Management
|
Support 1 way relay alarm output, RMON, TRAP
|
|
Security
|
Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.0
Support DHCP Snooping, Option 82,802.1X security access,
Support user hierarchical management, ACL access control list,
Support DDOS,port-based MAC filtering / binding, MAC black holes, IP source protection, Port isolation, ARP message speed limit
|
|
Advance Layer 2+ Features
|
IPv4/IPv6 Management
Static Route
|
|
Regulatory Approvals
|
|
ISO9001, CE, RoHS, FCC
|
|
EN55022:2010+AC: 2011, Class A
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009
|
|
EN 61000-3-3: 2013
|
|
EN55024:2010
|
|
IEC 61000-4-2: 2008 (ESD)
|
|
IEC 61000-4-3: 2010 (RS)
|
|
IEC 61000-4-4: 2012 (EFT)
|
|
IEC 61000-4-5: 2014 (Surge)
|
|
IEC 61000-4-6: 2013 (CS)
|
|
IEC 61000-4-8: 2009 (PFMF)
|
Industrial Managed Ethernet Switch Ordering Information
|
Model
|
Description
|
|
ETH-IMC2424MP
|
Industrial L2+ Rackmount 24-Port 10/100/1000T 802.3at PoE + 4-Port 1000X SFP Managed Ethernet Switch
|
|
SFP Options
|
► SFP option. Please select your SFP on our SFP Options Page
|
|
► SFP module is to be purchased separately.
|
|
Mounting Options
|
► Rackmount Installation
|
|
Power Options
|
► Industrial Power Supply. Open Wire for Terminal Block.
|
|
► Power Supply is to be purchased separately.
|
