Mini Industrial 10G/5G/2.5G/1G/100M 802.3at to 10GBASE-X SFP+ Media Converter
Mini Industria Media Converter Overview

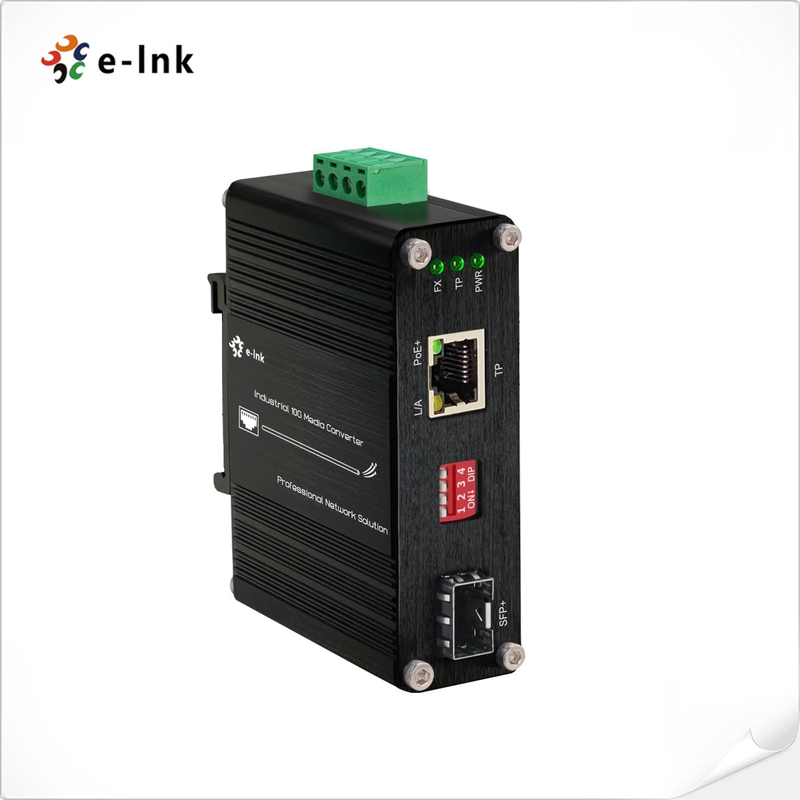

The LNK-IMC10GP60-SFP+ is a hardened industrial-grade 10G media converter with integrated
802.3at PoE+ support, designed to deliver non-blocking, wire-speed performance in the most
demanding environments. It seamlessly bridges the gap between copper and fiber infrastructures,
featuring one versatile Multi-Gigabit RJ45 port (supporting 100M/1G/2.5G/5G/10G speeds)
and one 10GBASE-X SFP+ fiber slot for ultimate deployment flexibility.
Encased in a compact, IP40-rated rugged metal housing, it is built to operate reliably in extreme
climatic conditions, with a wide operating temperature range from -40°C to 80°C. Its integrated
redundant power input system ensures continuous operation and network resilience for critical
applications. This converter is the ideal solution for extending high-bandwidth, power-over-ethernet
connections over fiber in industrial automation, intelligent transportation systems, and outdoor security networks.
Mini Industrial Media Converter Features
►100M/1G/2.5G/5G/10GBASE-T RJ45 interface with auto MDI/MDI-X
►10GBASE-X SFP+ slot for flexible fiber connectivity
►IEEE 802.3af/at PoE compliant
►Supports auto-negotiation:
►100Mbps / 1Gbps (half or full duplex)
►2.5Gbps / 5Gbps / 10Gbps (full duplex)
►LED indicators for real-time network status and diagnostics
►48~57VDC terminal block power input
►DIN-Rail and wall-mount installation options for versatile deployment
►Industrial-grade design, operating temperature range: -40°C to 75°C (-40°F to 167°F)
Mini Industrial Media Converter Technical Indexes
|
Ethernet
|
|
PoE Standard
|
IEEE802.3af/at
|
|
Forward & Filtering Rate:
|
100Mbps
|
|
1000Mbps
|
|
2.5Gbps
|
|
5Gbps
|
|
10Gbps
|
|
Network Cables:
|
10G/5G/2.5G/1G/100M BASE-T:
10G – Cat 6A/7
5G – Cat 6/6A/7
1G/2.5G – Cat 5e/6/6A/7
100M – Cat 5/5e/6/6A/7
Cat 5/5e/6/6A/7 UTP cable (100 meters, max.)
EIA/TIA-568 100-ohm STP (100 meters, max.)
10GBASE-LR/SR/BX:
50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 300m
9/125μm single-mode fiber optic cable, up to 80km
|
|
Processing Type:
|
Store-and-Forward
|
|
Fabric:
|
20Gbps
|
|
Jumbo Frame:
|
16K
|
|
Address Table:
|
9K entries, automatic source address learning and aging
|
|
Interface
|
|
Connector:
|
1 x RJ45
|
|
Optical Port:
|
1 x SFP+
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 80°C (-40°F to 176°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Electrical and Mechanical
|
|
Input Power:
|
48~57VDC, Redundant Power (4-pin Terminal Block)
|
|
Power Consumption:
|
65W Max
|
|
Protection:
|
|
Power Input Overload:
|
Automatic Resettable
|
|
Reverse Polarity:
|
Present
|
|
DIP Switch
|
|
4-digit DIP switch function
|
DIP
|
Function
|
Settings
|
|
SW 1
|
Reserved
|
ON - Reserved
|
OFF - Reserved
|
|
SW 2
|
Reserved
|
ON - Reserved
|
OFF - Reserved
|
|
SW 3
|
Reserved
|
ON - Reserved
|
OFF - Reserved
|
|
SW 4
|
Reserved
|
ON - Reserved
|
OFF - Reserved
|
|
Note: DIP Switch’s function can be customized based on client’s requirements.
|
|
Dimensions (WxDxH):
|
95 x 70 x 30 mm
|
|
Weight:
|
0.25Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail/Wall-mount
|
|
Regulatory Approvals
|
|
ISO9001, CE, RoHS, FCC
|
|
EN55022:2010+AC: 2011, Class A
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009
|
|
EN 61000-3-3: 2013
|
|
EN55024:2010
|
|
IEC 61000-4-2: 2008 (ESD)
|
|
IEC 61000-4-3: 2010 (RS)
|
|
IEC 61000-4-4: 2012 (EFT)
|
|
IEC 61000-4-5: 2014 (Surge)
|
|
IEC 61000-4-6: 2013 (CS)
|
|
IEC 61000-4-8: 2009 (PFMF)
|
Mini Industrial Media Converter Ordering Information
|
Model
|
Description
|
|
LNK-IMC10GP60-SFP+
|
Mini Industrial 10G/5G/2.5G/1G/100M 802.3at to 10GBASE-X SFP+ Media Converter
|
|
SFP Options
|
► SFP+ option. Please select your SFP+ on our SFP+ Options Page (Industrial SFP).
|
|
► SFP+ module is to be purchased separately.
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
|
Power Options
|
► Power Supply is to be purchased separately.
|
Mini Industrial Media Converter Application
After-Sales and Warranty Policy
It is composed of online customer service and telephone customer service, providing product consultation,
remote technical support, maintenance and acceptance services.
Service Policy: Three-month replacement and three-year warranty.
Replacement: Within three months of purchasing a series of products, after testing the product failure
by technicians and man-made damage caused by non-natural disasters, the purchaser can directly
go to the purchasing point to replace the same type of products.Or a product of comparable performance.
If there is no trouble in product testing, the original sample will be returned.
Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.
[The following circumstances do not fall within the scope of replacement and free maintenance]
1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
