Mini Industrial 10G/5G/2.5G/1G/100M 802.3at to 10GBASE-X SFP+ Media Converter
Mini Industria Media Converter Overview

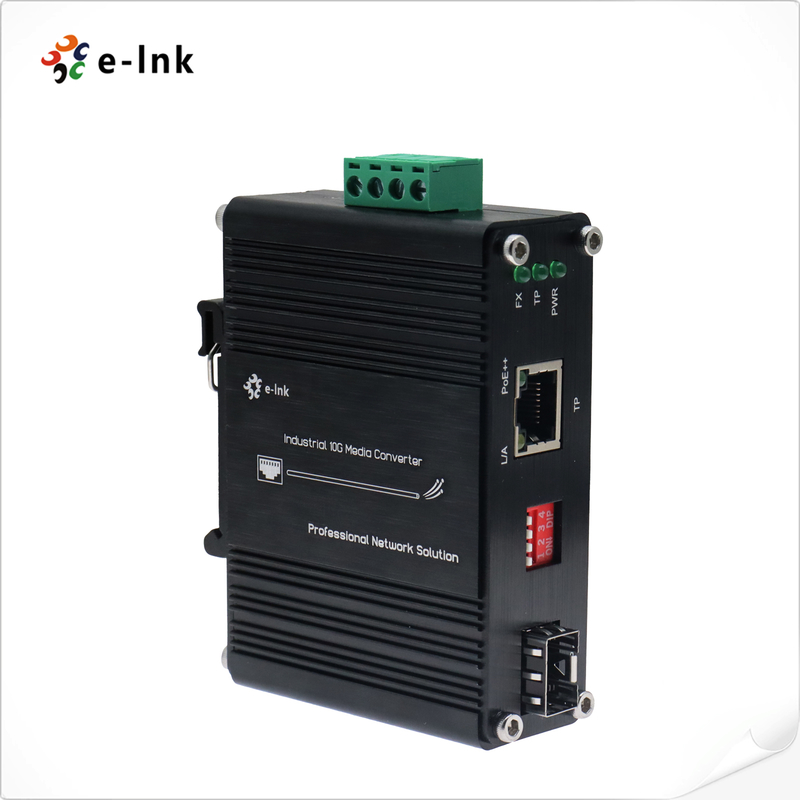

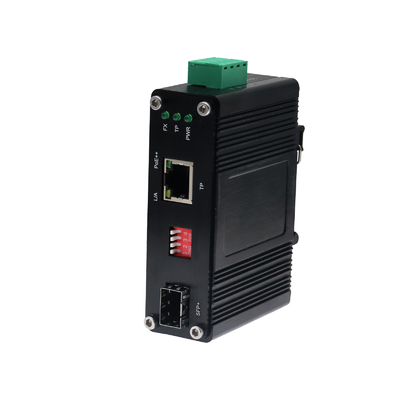

The LNK-IMC10GP30-SFP+ is a robust industrial-grade 10G media converter with 802.3at PoE support,
engineered for reliable non-blocking, wire-speed performance in harsh environments. It seamlessly
bridges copper and fiber networks, featuring one Multi-Gigabit (100M/1G/2.5G/5G/10G) RJ45 port
and one 10G SFP+ fiber slot, providing ultimate flexibility for 10 Gigabit Ethernet extension.
Housed in a compact, IP40-rated rugged metal case, it is built to withstand climatically demanding
conditions with an operating temperature range of -40°C to 80°C. For critical applications,
it includes a redundant power input system to ensure maximum uptime and network resilience.
This converter is the ideal solution for extending high-bandwidth, power-over-ethernet connections
over fiber in industrial automation, transportation, and outdoor applications.
Mini Industrial Media Converter Features
►100M/1G/2.5G/5G/10GBASE-T RJ45 interface with auto MDI/MDI-X
►10GBASE-X SFP+ slot for flexible fiber connectivity
►IEEE 802.3af/at PoE compliant for power-over-Ethernet applications
►Supports auto-negotiation:
►100Mbps / 1Gbps (half & full duplex)
►2.5Gbps / 5Gbps / 10Gbps (full duplex)
►Comprehensive LED indicators for real-time network diagnostics
►48~57VDC terminal block power input
►Flexible installation with DIN-Rail and wall-mount support
►Rugged, industrial-grade design, operating temperature: -40°C to 75°C (-40°F to 167°F)
Mini Industrial Media Converter Technical Indexes
|
Ethernet
|
|
PoE Standard
|
IEEE802.3af/at
|
|
Forward & Filtering Rate:
|
100Mbps
|
|
1000Mbps
|
|
2.5Gbps
|
|
5Gbps
|
|
10Gbps
|
|
Network Cables:
|
10G/5G/2.5G/1G/100M BASE-T:
10G – Cat 6A/7
5G – Cat 6/6A/7
1G/2.5G – Cat 5e/6/6A/7
100M – Cat 5/5e/6/6A/7
Cat 5/5e/6/6A/7 UTP cable (100 meters, max.)
EIA/TIA-568 100-ohm STP (100 meters, max.)
10GBASE-LR/SR/BX:
50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 300m
9/125μm single-mode fiber optic cable, up to 80km
|
|
Processing Type:
|
Store-and-Forward
|
|
Fabric:
|
20Gbps
|
|
Jumbo Frame:
|
16K
|
|
Address Table:
|
9K entries, automatic source address learning and aging
|
|
Interface
|
|
Connector:
|
1 x RJ45
|
|
Optical Port:
|
1 x SFP+
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 80°C (-40°F to 176°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Electrical and Mechanical
|
|
Input Power:
|
48~57VDC, Redundant Power (4-pin Terminal Block)
|
|
Power Consumption:
|
35W Max
|
|
Protection:
|
|
Power Input Overload:
|
Automatic Resettable
|
|
Reverse Polarity:
|
Present
|
|
DIP Switch
|
|
4-digit DIP switch function
|
DIP
|
Function
|
Settings
|
|
SW 1
|
Reserved
|
ON - Reserved
|
OFF - Reserved
|
|
SW 2
|
Reserved
|
ON - Reserved
|
OFF - Reserved
|
|
SW 3
|
Reserved
|
ON - Reserved
|
OFF - Reserved
|
|
SW 4
|
Reserved
|
ON - Reserved
|
OFF - Reserved
|
|
Note: DIP Switch’s function can be customized based on client’s requirements.
|
|
Dimensions (WxDxH):
|
95 x 70 x 30 mm
|
|
Weight:
|
0.25Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail/Wall-mount
|
|
Regulatory Approvals
|
|
ISO9001, CE, RoHS, FCC
|
|
EN55022:2010+AC: 2011, Class A
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009
|
|
EN 61000-3-3: 2013
|
|
EN55024:2010
|
|
IEC 61000-4-2: 2008 (ESD)
|
|
IEC 61000-4-3: 2010 (RS)
|
|
IEC 61000-4-4: 2012 (EFT)
|
|
IEC 61000-4-5: 2014 (Surge)
|
|
IEC 61000-4-6: 2013 (CS)
|
|
IEC 61000-4-8: 2009 (PFMF)
|
Mini Industrial Media Converter Ordering Information
|
Model
|
Description
|
|
LNK-IMC10GP30-SFP+
|
Mini Industrial 10G/5G/2.5G/1G/100M 802.3at to 10GBASE-X SFP+ Media Converter
|
|
