Gigabit 30W IEEE802.3at PoE Injector High-Power 48V for IP Devices

Large Image : Gigabit 30W IEEE802.3at PoE Injector High-Power 48V for IP Devices

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, FCC, RoHS, ISO9001
Model Number:	LNK-POE300AT
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$17-$23
Packaging Details:	PoE Injector Standard Export Package
Delivery Time:	3-7 working days
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	1000 pcs/month

Contact Now

Detailed Product Description

PoE Standard:	IEEE802.3af/at	Power Output:	DC 48V, 30W Via 2 Pairs
Ethernet Speed:	10/100/1000Mbps	Installation:	Desktop, Plug-and-play
Efficiency:	>85%, Low Idle <0.5W	Dimensions:	145×58×39mm, Weight: 0.25kg

Gigabit 30W IEEE802.3at PoE Injector High-Power 48V for IP Devices

Overview

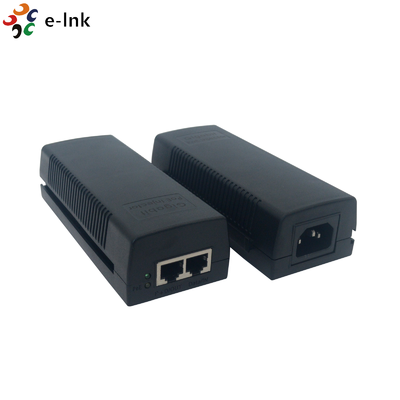

The LNK-POE300AT delivers up to 30W of IEEE802.3at power over Cat5/5e/6 cables for

wireless APs, IP cameras, and VoIP devices. Compact and desktop-friendly, it features

plug-and-play installation, energy-efficient operation, and multiple protection mechanisms,

ensuring reliable Gigabit PoE connectivity up to 100 meters.

Features

High-Power PoE – 30W output over 2-pair cable, IEEE802.3af/at compliant

Gigabit Ethernet – Supports 10/100/1000Base-T connections

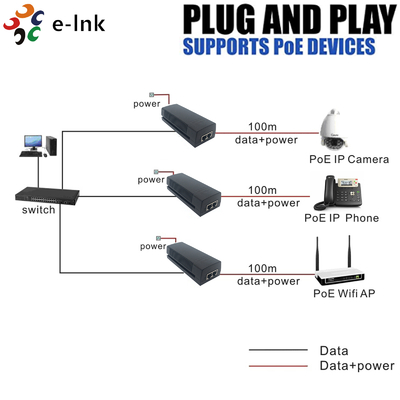

Plug & Play – No configuration required for quick deployment

Energy Efficient – High efficiency >85%, low idle <0.5W

Protection Mechanisms – Over-voltage, overload, short-circuit, and thermal protection

Status LEDs – Power and PoE indicators for real-time monitoring

Compact & Lightweight – Desktop installation with 0.25kg plastic casing

Technical Indexes

Ethernet
Standards:	IEEE 802.3 10Base-T Ethernet
	IEEE 802.3u 100Base-TX Fast Ethernet
	IEEE 802.3ab 1000Base-T Gigabit Ethernet
Processing Type:	Forward
Processing Type:	Half-duplex, Full-duplex
Forward Filter Rate:	1,488,000pps (1000Mbps)
Cabling:	10/100/1000Base-T: Cat5 or above
Maximum Distance:	IEEE802.3af/at PoE (30W): 2-pair UTP Cat. 3, 4, 5, up to 100m (328ft)
Connector:	LAN: 1 x RJ-45 STP, “Data” Input Port POE: 1 x RJ-45 STP, “Data + Power” Output Port AC Connector: 1 x AC Input power socket, IEC-60320 C13
Environmental
Operating Temperature:	-10°C to 50°C (14°F to 122°F)
Storage Temperature:	-20°C to 70°C (-4°F to 158°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Electrical and Mechanical
Input Voltage Range:	100-240V AC @50/60Hz.
Output Voltage:	DC 48V
Power Consumption:	30 watts max.
PoE (Power over Ethernet)
Standard:	IEEE 802.3af
Standard:	IEEE 802.3at
Port:	RJ45
Pin Assignment	Data provide over pairs 1/2(+) and 3/6(-) Power over spare pairs 4/5(+) and 7/8(-)
PoE Power Output	DC 48V/30-watt PoE via 2-pairs
LED Indicators
Power:	Power Status
PoE:	PoE Status
Dimensions (W×D×H):	145 x 58 x 39mm
Weight:	0.25Kg
Casing:	Plastic Case
Mounting Options:	Desktop
Regulatory Approvals
ISO9001
FCC part 15, Class A
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500W
ESD: 4KV/8KV
