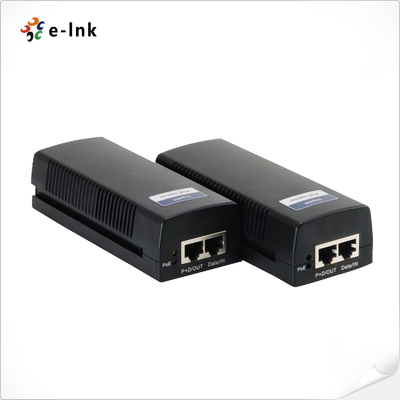

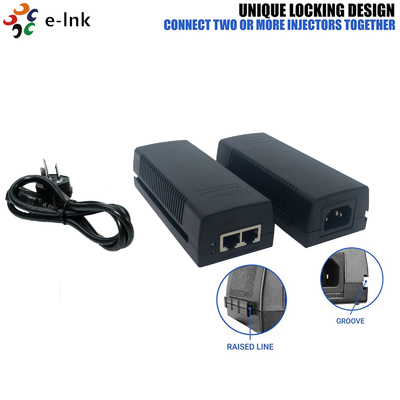

30W IEEE802.3at PoE Injector Reliable 48V Power for IP Cameras APs

Ethernet

Standards:

IEEE 802.3 10Base-T Ethernet

IEEE 802.3u 100Base-TX Fast Ethernet

Processing Type:

Forward

Half-duplex, Full-duplex

Forward Filter Rate:

148,800pps (100Mbps)

Cabling:

10/100Base-T: Cat5 or above

Maximum Distance:

IEEE802.3af/at PoE (30W): 2-pair UTP Cat. 3, 4, 5, up to 100m (328ft)

Connector:

LAN: 1 x RJ-45 STP, “Data” Input Port

POE: 1 x RJ-45 STP, “Data + Power” Output Port

AC Connector: 1 x AC Input power socket, IEC-60320 C13

Environmental

Operating Temperature:

-10°C to 50°C (14°F to 122°F)

Storage Temperature:

-20°C to 70°C (-4°F to 158°F)

Relative Humidity:

5% to 95% non-condensing

MTBF:

>200,000hrs

Electrical and Mechanical

Input Voltage Range:

100-240V AC @50/60Hz.

Output Voltage:

DC 48V

Power Consumption:

30 watts max.

PoE (Power over Ethernet)

Standard:

IEEE 802.3af

IEEE 802.3at

Port:

RJ45

Pin Assignment

Data provide over pairs 1/2(+) and 3/6(-)

Power over spare pairs 4/5(+) and 7/8(-)

PoE Power Output

DC 48V/30-watt PoE via 2-pairs

LED Indicators

Power:

Power Status

PoE:

PoE Status

Dimensions (W×D×H):

145 x 58 x 39mm

Weight:

0.25Kg

Casing:

Plastic Case

Mounting Options:

Desktop

Regulatory Approvals

ISO9001

FCC part 15, Class A

EN55022:2006+A1: 2007 Class A

Surge Protection:

RJ45: 1KV

Power: 500W

ESD: 4KV/8KV
