LNK-POE200 15.4W IEEE802.3af 10/100M PoE Injector Plug Play Midspan

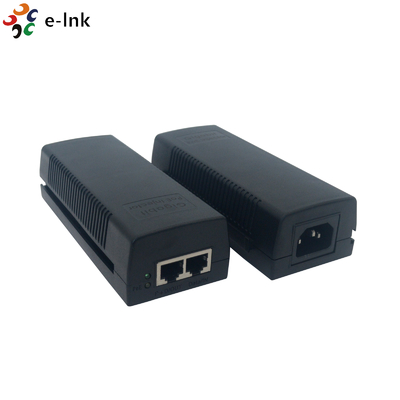

Large Image : LNK-POE200 15.4W IEEE802.3af 10/100M PoE Injector Plug Play Midspan

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, FCC, RoHS, ISO9001
Model Number:	LNK-POE200
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$11-$16
Packaging Details:	PoE Injector Standard Export Package
Delivery Time:	3-7 working days
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	1000 pcs/month

Contact Now

Detailed Product Description

Power Output:	15.4W (IEEE802.3af Standard)	Data Rate:	10/100Mbps Fast Ethernet
Input Voltage:	100–240V AC, 50/60Hz	Output Voltage:	48V DC
Connector Ports:	1× RJ45 Data In, 1× RJ45 Data + Power Out	Operating Temp:	-10°C To 50°C

LNK-POE200 15.4W IEEE802.3af 10/100M PoE Injector Plug Play Midspan

Overview

The LNK-POE200 PoE Injector provides a simple, safe, and cost-effective solution for

delivering power and data over a single Ethernet cable. With IEEE802.3af compliance, up

to 15.4W output, and intelligent device detection, it is ideal for powering IP phones, WLAN

access points, and surveillance cameras. Designed for reliability, it ensures stable

connectivity with surge, overload, and short-circuit protection.

Features

IEEE802.3af Compliant – Delivers up to 15.4W PoE power safely and reliably

Seamless Integration – Plug & Play installation with existing Ethernet networks

Dual LED Indicators – Clear Power and PoE status monitoring

Advanced Protection – Built-in surge, overload, temperature, and short-circuit safeguards

Wide Compatibility – Supports IP cameras, APs, IP phones, and other PoE devices

Compact & Durable – Lightweight plastic case with desktop mounting options

Technical Indexes

Ethernet
Standards:	IEEE 802.3 10Base-T Ethernet
Standards:	IEEE 802.3u 100Base-TX Fast Ethernet
Processing Type:	Forward
Processing Type:	Half-duplex, Full-duplex
Forward Filter Rate:	148,800pps (100Mbps)
Cabling:	10/100Base-T: Cat5 or above
Maximum Distance:	IEEE802.3af PoE (15.4W): 2-pair UTP Cat. 3, 4, 5, up to 100m (328ft)
Connector:	LAN: 1 x RJ-45 STP, “Data” Input Port POE: 1 x RJ-45 STP, “Data + Power” Output Port AC Connector: 1 x AC Input power socket, IEC-60320 C13
Environmental
Operating Temperature:	-10°C to 50°C (14°F to 122°F)
Storage Temperature:	-20°C to 70°C (-4°F to 158°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Electrical and Mechanical
Input Voltage Range:	100-240V AC @50/60Hz.
Output Voltage:	DC 48V
Power Consumption:	15.4 watts max.
PoE (Power over Ethernet)
Standard:	IEEE 802.3af
Port:	RJ45
Pin Assignment	Data provide over pairs 1/2(+) and 3/6(-) Power over spare pairs 4/5(+) and 7/8(-)
PoE Power Output	DC 48V/15.4-watt PoE via 2-pairs
LED Indicators
Power:	Power Status
PoE:	PoE Status

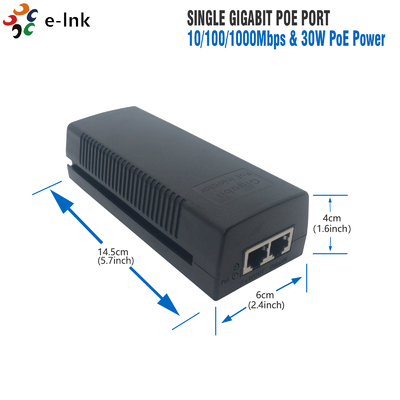

Dimensions (W×D×H):	145 x 58 x 39mm
Weight:	0.25Kg
Casing:	Plastic Case
Mounting Options:	Desktop
Regulatory Approvals
ISO9001
FCC part 15, Class A
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500W
ESD: 4KV/8KV
