6-Port DIN-Rail Fiber Splice Box with 12-Fiber Splicing Multi-Adapter Support

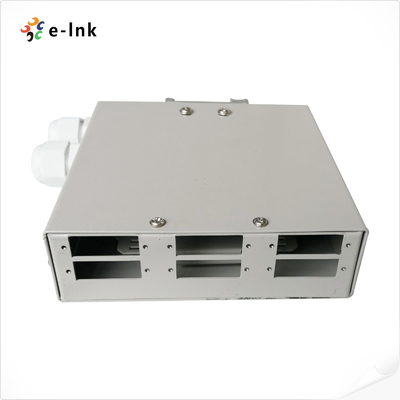

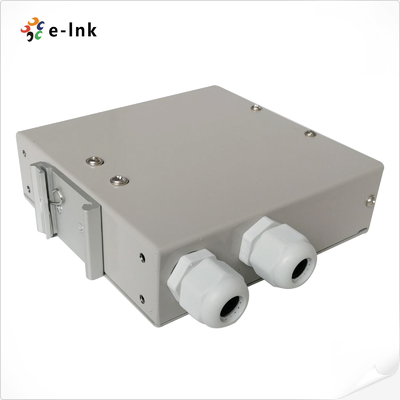

Large Image : 6-Port DIN-Rail Fiber Splice Box with 12-Fiber Splicing Multi-Adapter Support

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, FCC, RoHS, ISO9001
Model Number:	LNK-FSB-6

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$6-10
Packaging Details:	Fiber Splice Box Standard Export Package
Delivery Time:	3-7 working days
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	1000 pcs/month

Contact Now

Detailed Product Description

Model:	LNK-FSB-6 DIN-Rail Fiber Splice Box	Capacity:	12-fiber Splicing, Up To 6 Adapters
Compatibility:	SC Duplex, ST Duplex, LC Quadruplex, FC Adapters	Ports:	2 Cable Entries, 12 Pigtail Entries
Material:	Cold-rolled Steel With Electrostatic Painting	Application:	Fiber Distribution & Termination In Mini-networks

6-Port DIN-Rail Fiber Splice Box with 12-Fiber Splicing Multi-Adapter Support

Overview

The LNK-FSB-6 Series Fiber Splice Box is a compact DIN-rail mounted solution designed

for fiber optic distribution and termination. Built with durable cold-rolled steel and electrostatic

painting, it supports multiple adapter types and provides reliable splicing for up to 12 fibers.

Ideal for mini-network terminal applications, it ensures flexible cable management in

industrial and telecom environments.

Features

DIN-rail mount design for quick and space-saving installation

Supports multiple adapter types (SC, ST, LC, FC)

12-fiber splicing capacity with organized internal module

Up to 6 adapters supported for flexible configurations

2 cable entry/exit ports & 12 pigtail ports for easy wiring

Cold-rolled steel housing with electrostatic paint for durability

Ordering Information

Model	Description
LNK-FSB-6	6-Port DIN-Rail Fiber Splice Box: 2-cable entries, without adapters and pigtails, suitable for 6-Port SC Duplex Adapter, ST Duplex Adapter or LC Quadruplex Adapter.
