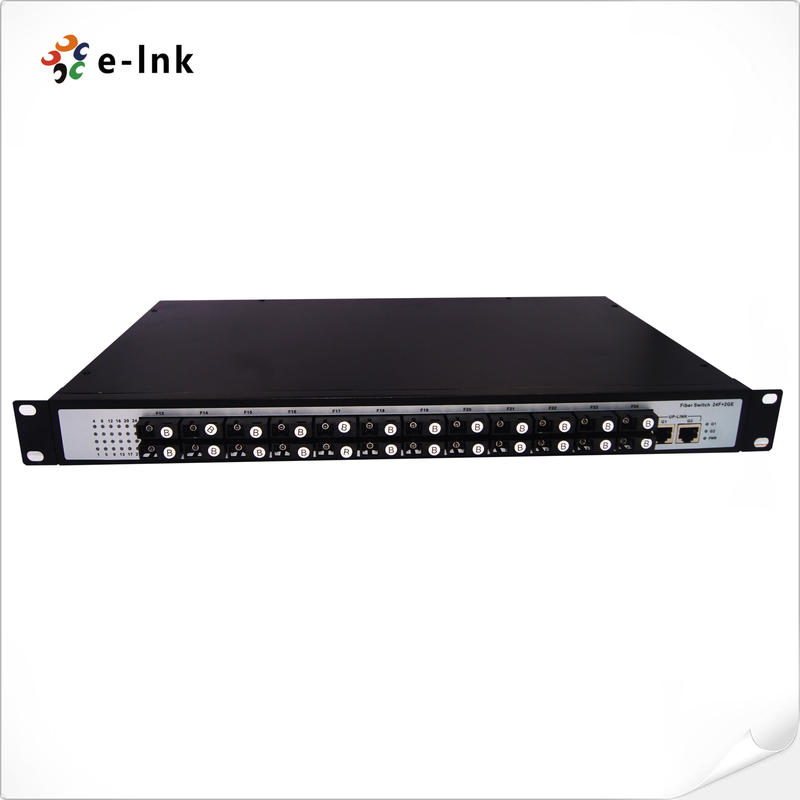

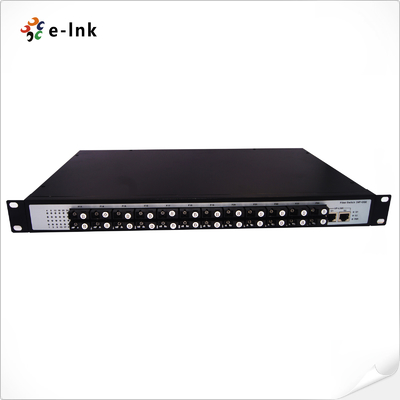

Unmanaged 24-port 100Base-FX SC + 2-10/100/1000-TX Optical Fiber Switch
Unmanaged 24-Port SC Fiber Switch Overview
The LNK-FS24SC02 Series is a high-density, high-performance managed optical fibre switch designed
for robust, scalable network deployment. It features 24 100Base-FX SC fibre ports for extensive
connectivity of fibre optic links, as well as 2 Gigabit Ethernet ports for high-speed uplinks or aggregation.
Exceptionally flexible, it supports both single and dual fibre modes, offering a transmission range
of 2km to 120km and making it suitable for short- and long-haul applications. This switch operates
efficiently in both half-duplex and full-duplex modes to ensure reliable and adaptable data transmission.
It is the perfect future-proof solution for setting up fibre-to-the-home (FTTH) networks, metropolitan
area networks (MANs) and other challenging fibre optic infrastructure projects.
Unmanaged 24-Port SC Fiber Switch Features
►24x 100Base-FX SC Ports + 2x 10/100/1000Base-TX Ports for flexible fiber and copper connectivity
►Auto-negotiation support with 10/100/1000Mbps full/half-duplex and Auto MDI/MDI-X at TX ports
►Hot-swappable 100BASE-SC modules for easy maintenance and expansion
►2K MAC address capacity with 1Mbit frame buffer memory for stable data forwarding
►19-inch 1U rack-mount design, suitable for standard network cabinets
►Wide operating temperature range: -10°C to 60°C, ensuring reliable performance in diverse environments
►110~240VAC universal power input for flexible deployment
►Durable aluminum housing with lightning protection design for enhanced safety and longevity
Unmanaged 24-Port SC Fiber Switch Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.3 10BASE-T
|
|
IEEE802.3u 100BASE-TX
|
|
IEEE802.3u 100BASE-FX
|
|
IEEE802.3ab 1000BASE-T
|
|
Forward & Filtering Rate:
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
1,488,000pps (1000Mbps)
|
|
Processing Type:
|
Store-and-Forward
|
|
Max Packet Length:
|
1522 Bytes
|
|
Address Table Size:
|
2K MAC Addresses
|
|
Backplane capacity
|
25.6G
|
|
RJ45 Port
|
2*10/100/1000Base-T(X)
|
|
Optical Port:
|
24*100Base-FX SC
|
|
Environmental
|
|
Operating Temperature:
|
-10°C to 60°C
|
|
Storage Temperature:
|
-40°C to 85°C
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
Electrical and Mechanical
|
|
Input Power:
|
110~220VAC
|
|
Power Consumption:
|
25W Max. (Off-load)
|
|
40W Max. (Full load)
|
|
Dimensions (WxDxH):
|
485 x 235 x 45 mm
|
|
Weight:
|
2560g
|
|
Casing:
|
Metal Case, IP40 protection
|
|
Regulatory Approvals
|
|
ISO9001
|
|
EN55022:2006+A1: 2007 Class A
|
|
Surge Protection:
|
|
RJ45: 1KV
|
|
Power: 500V
|
|
ESD: 4KV
|
Unmanaged 24-Port SC Fiber Switch Ordering Information
|
Model
|
Description
|
|
LNK-FS24SC02-MM
|
Unmanaged 24-port 100Base-FX SC (Multimode Dual Fiber 2KM, 1310nm) + 2-10/100/1000-TX Optical Fiber Switch
|
|
LNK-FS24SC02-SM
|
Unmanaged 24-port 100Base-FX SC (Single Mode Dual Fiber 20KM, 1310nm) + 2-10/100/1000-TX Optical Fiber Switch
|
|
LNK-FS24SC02-SS
|
Unmanaged 24-port 100Base-FX SC (Single Mode Single Fiber 20KM, 1310nm TX/1550nm RX) + 2-10/100/1000-TX Optical Fiber Switch
|
