4 Channel Video Multiplexer for 1 Coaxial Cable
4 Channel Video Multiplexer for 1 Coaxial Cable Overview

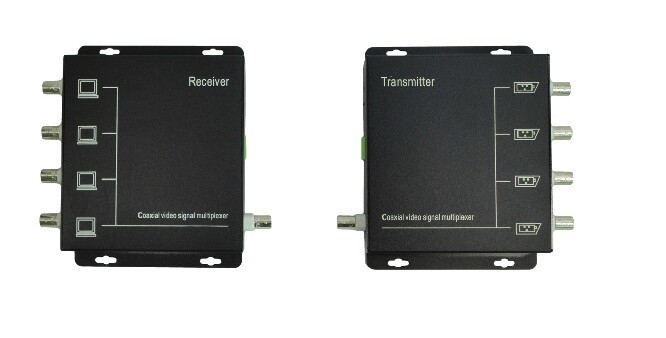

The E-link LNK-MV Series Video Multiplexer is an efficient and cost-effective solution for modern
surveillance systems. This innovative system combines a transmitter and receiver to bind 4 channels
of video signals from cameras along with RS485 reverse control data, transmitting them simultaneously
over a single coaxial cable. Eliminating the need for separate data cabling significantly reduces installation
time and material costs. This multiplexer is engineered for long-distance, stable transmission,
ensuring high-quality video and reliable PTZ control for your CCTV setup.
4 Channel Video Multiplexer for 1 Coaxial Cable Features
►Supports 4 channel video signal transmission for cameras over a single coaxial cable
►Compact design, ideal for projects with limited installation space
►Enables long-distance transmission up to 500m
►Utilizes Frequency Division Multiplexing (FDM) for real-time transmission of video and data with high-definition, zero-delay images
►Requires only one coaxial cable, eliminating the need for additional cabling and reducing infrastructure costs by 25–30%
►Ensures high-quality video performance with strong anti-interference capability
►Easy installation with standard BNC harness connection
4 Channel Video Multiplexer for 1 Coaxial Cable Technical Indexes
|
Transmitter
|
|
|
VIDEO 1
|
VIDEO 2
|
VIDEO 3
|
VIDEO 4
|
VIDEO 5
|
VIDEO 6
|
|
Central Frequency
|
|
46MHZ
|
38MHZ
|
30MHZ
|
30MHZ
|
30MHZ
|
|
Signal Output Intensity
|
105db
|
105db
|
103db
|
102db
|
102db
|
102db
|
|
Video Input Impedance
|
75 Ohm (Unbalanced)
|
|
Video Input Amplitude
|
0.8-1.5VPP
|
|
Video Compatible Format
|
PAL, NTSC
|
|
Video Interface
|
BNC
|
|
2-62-2-
|
8MHZ
|
|
Power Supply
|
DC12V/1A
|
|
Receiver
|
|
Signal Output Amplitude
|
0.9-1.1VPP
|
|
Output Polarity
|
Positive
|
|
Output Impedance
|
75(Unbalanced)
|
|
Video Interface
|
BNC
|
|
Power Supply
|
DC12V/1A
|
|
RS485 Output Parameter(Switch with VIDEO 1)
|
|
Quantity of Node Supported
|
10
|
|
Baud Rate
|
300-57600bps
|
|
 Interface
|
Double terminal block
|
|
Dimension
|
158*124*39mm
|
4 Channel Video Multiplexer for 1 Coaxial Cable Ordering Information
|
LNK-MV201
|
2-Ch video converter transmitter and receiver for camera by one coaxial cable
|
|
LNK-MV401
|
4-Ch video converter transmitter and receiver for camera by one coaxial cable
|
