12-48VDC Industrial 2-Port Gigabit PoE+ Injector 60W High Power

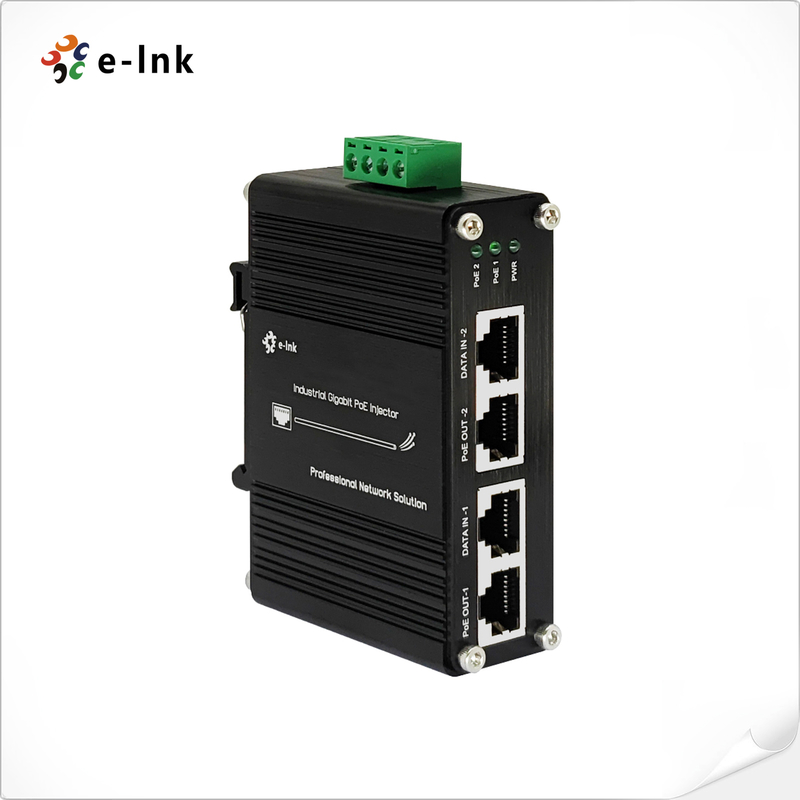

Large Image : 12-48VDC Industrial 2-Port Gigabit PoE+ Injector 60W High Power

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, RoHS, FCC, ISO9001
Model Number:	LNK-INJ302
Document:	E-link LNK-INJ302 12-48VDC ....0.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 PCS
Price:	$49-$73
Packaging Details:	Power over Ethernet Injector Standard Export Package
Delivery Time:	3-7 days
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	2000pcs/month

Contact Now

Detailed Product Description

Power Input:	12~48VDC (Terminal Block)	PoE Standard:	IEEE802.3af/at, 60W Max Per Port
Ethernet Ports:	2 Data In + 2 PoE Out (Gigabit RJ45)	Throughput:	10/100/1000Base-T, 100m Max Distance
Mounting:	DIN-Rail / Wall-mount	Casing:	Rugged Aluminum, 0.26Kg

12-48VDC Industrial 2-Port Gigabit PoE+ Injector 60W High Power

Overview

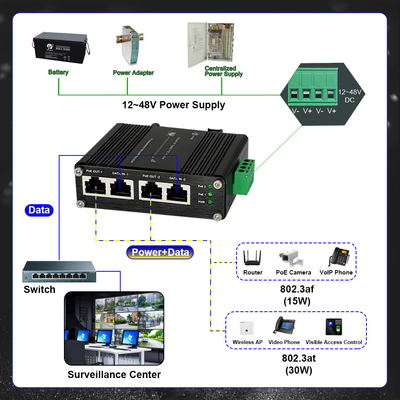

The LNK-INJ302 is a rugged 2-port Gigabit PoE+ injector designed for industrial

applications. It delivers up to 60W power per port with 12~48VDC input, ensuring reliable

connectivity for cameras, APs, and other powered devices in harsh environments.

Features

Dual PoE+ Ports – Supports up to 60W on one port, total budget ≤60W

Wide Power Input – Operates on 12~48VDC, ideal for field deployment

Industrial-Grade Design – Hardened aluminum casing with -40°C~80°C range

Flexible Installation – DIN-Rail and wall-mount options

Reliable Networking – Gigabit throughput with 100m Cat5e/6 support

Intelligent Power Delivery – IEEE802.3af/at compliant with diagnostic LEDs

Technical Indexes

Ethernet
Standards:	IEEE802.3af Power over Ethernet
Standards:	IEEE802.3at Power over Ethernet
Processing Type:	Forward
Processing Type:	Half-duplex, Full-duplex
Forward Filter Rate:	1,488,000pps (1000Mbps)
Cabling:	10/100/1000Base-T: Cat5 or above
Maximum Distance:	Cat5 UTP up to 100m
Connector:	4x RJ45
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Electrical and Mechanical
Input Power:	12~48VDC (Terminal Block)
Power Consumption:	70W Max.
PoE (Power over Ethernet)
Standard:	IEEE802.3af/at
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
Max. Power per Port:	60W Max (Alternative B Mode)
LED Indicators:
Power:	Power Status
PoE:	PoE Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.26Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
FCC part 15, Class A
CE-EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500W
ESD: 4KV/8KV

Ordering Information

Model	Description
LNK-INJ302	12~48VDC Power Input Industrial 2 ports Gigabit PoE+ Injector
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately
