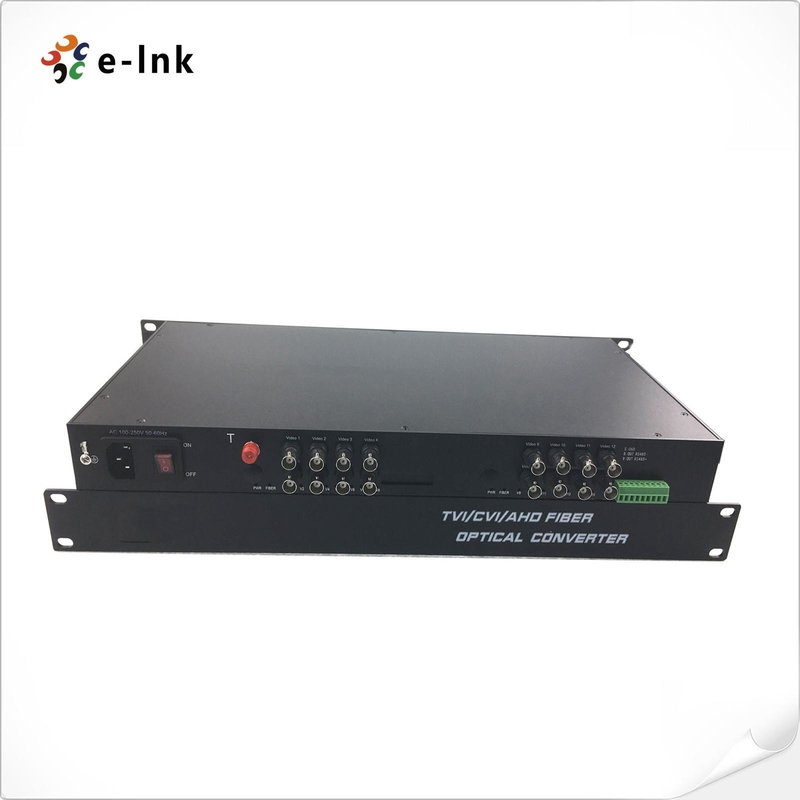

16Ch 5MP HD-Video 4-in-1 Video Fiber Converter
HD-Video Fiber Converter Overview
The E-Link 16-Channel 4-in-1 Video Fibre Converter is at the forefront of high-density video
transmission technology. This advanced system converts AHD, HD-CVI, HD-TVI or CVBS analogue
signals into optical signals, enabling exceptional long-distance transmission of up to 120 km over
a single fibre. Using uncompressed HD video technology, it can transmit sixteen channels of video
simultaneously while supporting resolutions of up to 5MP. Its fully plug-and-play design eliminates
the need for any electronic or optical adjustments, and it features comprehensive LED status monitoring
for all channels. With both standalone and rack-mount installation options, this enterprise-grade solution
is ideal for large-scale surveillance systems, broadcasting facilities and security applications requiring
substantial video channel capacity.
HD-Video Fiber Converter Features
-
Non-Compression Coding: Maintains original video quality without loss.
-
Auto Video Detection: Automatically recognizes various input video formats.
-
Multi-Signal over Fiber: Supports simultaneous transmission of AHD, HDCVI, HD-TVI, or CVBS video signals with PTZ control data (RS485) over a single fiber optic cable.
-
Wide Camera Compatibility: Works with 5MP, 4MP, 3MP, 1080P, and 720P cameras.
-
LED Indicators: Provide clear status monitoring of functional modes.
-
Industrial Reliability: Designed for stable operation in demanding environments.
-
Plug-and-Play Installation: Simple setup with no configuration required.
-
Wide Operating Temperature: Reliable performance from –15°C to +65°C.
HD-Video Fiber Converter Technical Indexes
|
Optical Fiber
|
|
Wavelength
|
WDM:1310nm/1550nm
|
|
Output Power
|
-8~3dBm
|
|
Optic fiber
|
50/125u multimode,62.5/125u multimode,9/125u single mode
|
|
Rx sensitivity
|
-26dBm
|
|
Optical connector
|
FC (default), ST or SC (optional)
|
|
Transmission Distance
|
0~550M (MM) / 0~80KM (SM) (Default distance is 20Km)
|
|
Video
|
|
Number of Channels
|
16
|
|
Input/output impedance
|
75 Ohm (unbalance)
|
|
Standard video input/output voltage
|
1.0Vp-p
|
|
Video Bandwidth
|
50MHz
|
|
Sampling Bandwidth
|
8bit
|
|
Sampling Frequency
|
108MHz
|
|
Signal to noise ratio
|
>67dB
|
|
Rise and Fall time
|
<0.8ns
|
|
Optical Signal Intrinsic Jitter
|
<0.2 UI
|
|
Differential Gain
|
< ±1.5%
|
|
Differential Phase
|
< ±1°
|
|
Connector
|
BNC
|
|
Supporting video
|
5MP 4MP 3MP 1080P 720P Camera
|
|
PTZ Data
|
|
Protocol
|
Default: RS485 (RS232/RS422 Optional)
|
|
Number of channels
|
1
|
|
Connector
|
3pins Terminal Blocks
|
|
Data Rate
|
0-200Kbps
|
|
Directions
|
Default :Simplex from Rx to Tx (BIDI duplex optional)
|
|
Environmental
|
|
Operating Temperature:
|
-15°C to 65°C (5°F to 149°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 100,000 hrs
|
|
Electrical and Mechanical
|
|
Input Power:
|
DC5V 2A
|
|
Power Consumption:
|
≤6W
|
|
LED Indicators:
|
|
Fiber
|
Fiber Status
|
|
Video
|
LED1, LED2, LED3, LED4
|
|
Data
|
Data status
|
|
PWR
|
Power Status
|
|
Dimensions(WxDxH):
|
19” 1U chassis
482 x 220 x 44 mm
|
|
Weight:
|
7Kg
|
|
Casing:
|
Metal Case
|
|
Mounting Options:
|
Wall-mount/Rack-mount
|
|
Regulatory Approvals
|
|
ISO9001
|
|
CE, RoHS and FCC
|
HD-Video Fiber Converter Ordering Information
|
Model
|
Details
|
|
LNK-5MP-16V-20
|
16-Ch HD-AHD/CVI/TVI/CVBS video (5MP 4MP 3MP 1080P 720P Camera), 20km, single mode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs
|
|
LNK-5MP-16V-20R
|
16-Ch HD-AHD/CVI/TVI/CVBS video (5MP 4MP 3MP 1080P 720P Camera ) + 1-Ch Backward Data RS485 (for PTZ Cameras), 20km, single mode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs
|
