Industrial Gigabit PoE+ Injector 12~48VDC 30W per Port DIN-Rail Mount

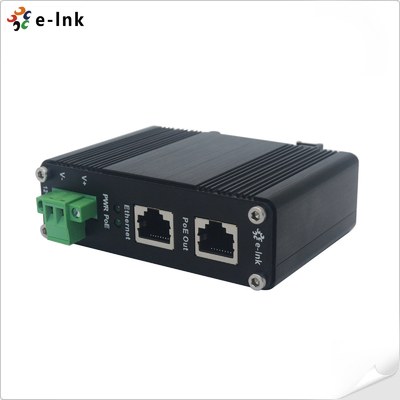

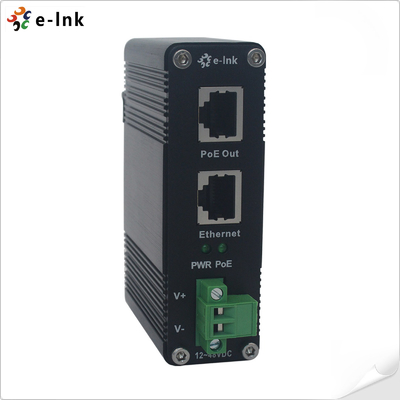

Large Image : Industrial Gigabit PoE+ Injector 12~48VDC 30W per Port DIN-Rail Mount

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, ISO9001, RoHS, FCC
Model Number:	LNK-INJ301-30
Document:	E-link LNK-INJ301-30 Indust....0.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 piece
Price:	$39-$48
Packaging Details:	Gigabit PoE Injector Standard Export Package
Delivery Time:	2-7 days
Payment Terms:	T/T,Western Union,MoneyGram
Supply Ability:	2000pcs/month

Contact Now

Detailed Product Description

Model:	LNK-INJ301	Ethernet Ports:	1x RJ45 Data In, 1x RJ45 PoE Out
PoE Standard:	IEEE 802.3af/at	Input Power:	12~48VDC, Terminal Block
Dimensions & Weight:	95 × 70 × 30 Mm, 0.25 Kg	Mounting:	DIN-Rail & Wall-mount, IP40 Aluminum Housing
Highlight:	Industrial Gigabit PoE+ injector , DIN-rail mount PoE injector , 30W per port PoE+ injector

Industrial Gigabit PoE+ Injector 12~48VDC 30W per Port DIN-Rail Mount

Overview

The LNK-INJ301 is a hardened industrial Gigabit PoE+ injector that delivers both data and

power over a single Ethernet cable. Supporting IEEE 802.3af/at devices, it allows non-PoE

switches to connect PoE cameras or access points up to 100 meters. Designed for harsh

environments, it operates from -40°C to 80°C and features a wide 12~48VDC input range,

DIN-Rail and wall-mount support, and built-in surge/ESD protection for reliable industrial

deployments.

Features

Wide Voltage Range: 12~48VDC input for high availability

High-Power PoE+: Up to 30W per port (IEEE 802.3at)

Gigabit Ethernet Support: 10/100/1000Base-TX, forward/filter at 1.488Mpps

Industrial Reliability: Hardened aluminum case, -40°C to 80°C operation

Flexible Mounting: DIN-Rail or wall installation

Protection & Diagnostics: Surge and ESD protection, extensive LED indicators

Technical Indexes

Ethernet
Standards:	IEEE802.3af Power over Ethernet
Standards:	IEEE802.3at Power over Ethernet
Processing Type:	Forward
Processing Type:	Half-duplex, Full-duplex
Forward Filter Rate:	1,488,000pps (1000Mbps)
Cabling:	10/100/1000Base-T: Cat5 or above
Maximum Distance:	Cat5 UTP up to 100m
Connector:	2x RJ45
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Electrical and Mechanical
Input Power:	12~48VDC (Terminal Block)
Power Consumption:	36W Max.
PoE (Power over Ethernet)
Standard:	IEEE802.3af/at
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
Max. Power per Port:	30W Max per port (Alternative B Mode)
LED Indicators:
Power:	Power Status
PoE:	PoE Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
FCC part 15, Class A
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500V
ESD: 4KV/8KV

Ordering Information

Model	Description
LNK-INJ301	12~48VDC Power Input Industrial Gigabit PoE+ Injector
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately
