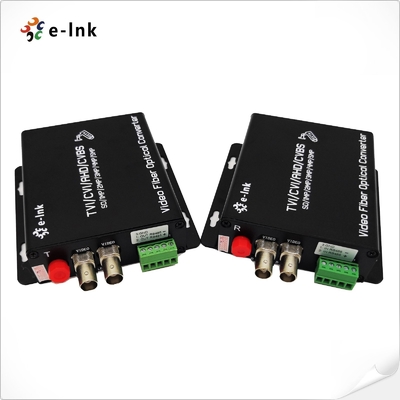

2Ch 5MP HD-Video 4-in-1 Video Fiber Converter
HD-Video Fiber Converter Overview
The E-Link 2-Channel 4-in-1 Video Fibre Converter can seamlessly convert AHD, HD-CVI, HD-TVI
or CVBS analogue signals into optical signals for ultra-long-distance transmission of up to 120 km
over a single fibre. Using uncompressed HD video and high-speed digital optical technology,
it can transmit two channels of video simultaneously while supporting resolutions of up to 5MP.
This plug-and-play solution requires no electronic or optical adjustments and features LED status
indicators for real-time monitoring. Offering flexible standalone or rack-mount installation options,
it is the ideal high-performance solution for extending high-definition surveillance video in security,
industrial and broadcasting applications.
HD-Video Fiber Converter Features
- Lossless Transmission: Non-compression coding technology preserves original video quality.
- Auto Video Format Detection: Automatically recognizes input video formats.
- Multi-Signal over Fiber: Supports simultaneous transmission of AHD, HDCVI, HD-TVI, or CVBS video signals with PTZ control data (RS485) via a single fiber optic cable.
- Wide Camera Compatibility: Compatible with 5MP, 4MP, 3MP, 1080P, and 720P cameras.
- LED Status Indicators: Provide clear functional mode monitoring.
- Industrial-Grade Design: Ensures stable operation in harsh environments.
- Easy Installation: Plug-and-play design for quick setup.
- Extended Temperature Range: Operates reliably from -15ºC to +65ºC.
HD-Video Fiber Converter Technical Indexes
|
Optical Fiber
|
|
Wavelength
|
WDM:1310nm/1550nm
|
|
Output Power
|
-8~3dBm
|
|
Optic fiber
|
50/125u multimode,62.5/125u multimode,9/125u single mode
|
|
Rx sensitivity
|
-26dBm
|
|
Optical connector
|
FC (default), ST or SC (optional)
|
|
Transmission Distance
|
0~550M (MM) / 0~80KM (SM) (Default distance is 20Km)
|
|
Video
|
|
Number of Channels
|
2
|
|
Input/output impedance
|
75 Ohm (unbalance)
|
|
Standard video input/output voltage
|
1.0Vp-p
|
|
Video Bandwidth
|
50MHz
|
|
Sampling Bandwidth
|
8bit
|
|
Sampling Frequency
|
108MHz
|
|
Signal to noise ratio
|
>67dB
|
|
Rise and Fall time
|
<0.8ns
|
|
Optical Signal Intrinsic Jitter
|
<0.2 UI
|
|
Differential Gain
|
< ±1.5%
|
|
Differential Phase
|
< ±1°
|
|
Connector
|
BNC
|
|
Supporting video
|
5MP 4MP 3MP 1080P 720P Camera
|
|
PTZ Data
|
|
Protocol
|
Default: RS485 (RS232/RS422 Optional)
|
|
Number of channels
|
1
|
|
Connector
|
3pins Terminal Blocks
|
|
Data Rate
|
0-200Kbps
|
|
Directions
|
Default :Simplex from Rx to Tx (BIDI duplex optional)
|
|
Environmental
|
|
Operating Temperature:
|
-15°C to 65°C (5°F to 149°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 100,000 hrs
|
|
Electrical and Mechanical
|
|
Input Power:
|
DC5V 2A
|
|
Power Consumption:
|
≤6W
|
|
LED Indicators:
|
|
Fiber
|
Fiber Status
|
|
Video
|
LED
|
|
Data
|
Data status
|
|
PWR
|
Power Status
|
|
Dimensions(WxDxH):
|
167 x 172 x 28 mm
|
|
Weight:
|
1.5Kg
|
|
Casing:
|
Metal Case
|
|
Mounting Options:
|
Wall-mount/Rack-mount
|
|
Regulatory Approvals
|
|
ISO9001
|
|
CE, RoHS and FCC
|
HD-Video Fiber Converter Ordering Information
|
Model
|
Details
|
|
LNK-5MP-2V-20
|
2-Ch HD-AHD/CVI/TVI/CVBS video (5MP 4MP 3MP 1080P 720P Camera), 20km, single mode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs
|
|
LNK-5MP-2V-20R
|
2-Ch HD-AHD/CVI/TVI/CVBS video (5MP 4MP 3MP 1080P 720P Camera ) + 1-Ch Backward Data RS485 (for PTZ Cameras), 20km, single mode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs
|
HD-Video Fiber Converter Application
After-Sales and Warranty Policy
It is composed of online customer service and telephone customer service, providing product consultation,
remote technical support, maintenance and acceptance services.
Service Policy: Three-month replacement and three-year warranty.
Replacement: Within three months of purchasing a series of products, after testing the product failure
by technicians and man-made damage caused by non-natural disasters, the purchaser can directly
go to the purchasing point to replace the same type of products.Or a product of comparable performance.
If there is no trouble in product testing, the original sample will be returned.
Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.
[The following circumstances do not fall within the scope of replacement and free maintenance]
1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
