1Ch 5MP HD-Video 4-in-1 Video Fiber Converter
HD-Video Fiber Converter Overview

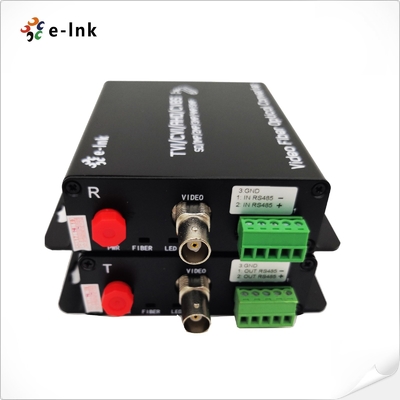

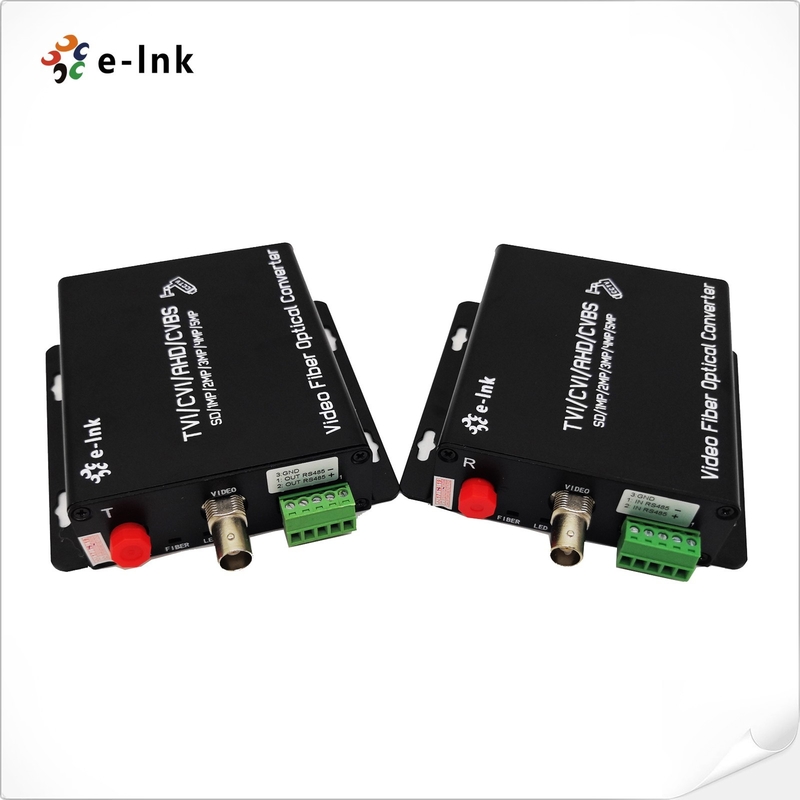

The E-Link HD-AHD/HD-CVI/HD-TVI/CVBS 4-in-1 Video Fibre Converter uses advanced uncompressed
video and high-speed optical transmission technology to convert AHD, HD-CVI, HD-TVI or CVBS
analogue signals into optical signals for ultra-long-distance transmission of up to 120 km via
fibre optic cable. This versatile transceiver supports resolutions from 720p to 5MP, transmitting
one video channel over a single single-mode or multimode fibre. With plug-and-play operation,
there is no need for electronic or optical adjustments. It provides LED status monitoring
and offers flexible standalone or rack-mount installation options. It is ideal for extending
high-definition video in surveillance, security and industrial applications.
HD-Video Fiber Converter Features
-
High-Quality Transmission: Non-compression coding technology ensures original video quality.
-
Automatic Video Format Detection: Supports auto-identification of input video formats.
-
Multi-Signal Integration: Transmits AHD, HDCVI, HD-TVI, or CVBS signals along with PTZ control data (RS485) over a single fiber optic cable.
-
Camera Compatibility: Supports 5MP, 4MP, 3MP, 1080P, and 720P cameras.
-
Status Monitoring: LED indicators provide real-time functional status.
-
Industrial-Grade Design: Reliable performance across a wide operating temperature range.
-
Easy Deployment: Plug-and-play setup for quick installation.
-
Wide Temperature Range: Operates from -15ºC to +65ºC.
HD-Video Fiber Converter Technical Indexes
|
Optical Fiber
|
|
Wavelength
|
WDM:1310nm/1550nm
|
|
Output Power
|
-8~3dBm
|
|
Optic fiber
|
50/125u multimode,62.5/125u multimode,9/125u single mode
|
|
Rx sensitivity
|
-26dBm
|
|
Optical connector
|
FC (default), ST or SC (optional)
|
|
Transmission Distance
|
0~550M (MM) / 0~80KM (SM) (Default distance is 20Km)
|
|
Video
|
|
Number of Channels
|
1
|
|
Input/output impedance
|
75 Ohm (unbalance)
|
|
Standard video input/output voltage
|
1.0Vp-p
|
|
Video Bandwidth
|
50MHz
|
|
Sampling Bandwidth
|
8bit
|
|
Sampling Frequency
|
108MHz
|
|
Signal to noise ratio
|
>67dB
|
|
Rise and Fall time
|
<0.8ns
|
|
Optical Signal Intrinsic Jitter
|
<0.2 UI
|
|
Differential Gain
|
< ±1.5%
|
|
Differential Phase
|
< ±1°
|
|
Connector
|
BNC
|
|
Supporting video
|
5MP 4MP 3MP 1080P 720P Camera
|
|
PTZ Data
|
|
Protocol
|
Default: RS485 (RS232/RS422 Optional)
|
|
Number of channels
|
1
|
|
Connector
|
3pins Terminal Blocks
|
|
Data Rate
|
0-200Kbps
|
|
Directions
|
Default :Simplex from Rx to Tx (BIDI duplex optional)
|
|
Environmental
|
|
Operating Temperature:
|
-15°C to 65°C (5°F to 149°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 100,000 hrs
|
|
Electrical and Mechanical
|
|
Input Power:
|
DC5V 2A
|
|
Power Consumption:
|
≤6W
|
|
LED Indicators:
|
|
Fiber
|
Fiber Status
|
|
Video
|
LED
|
|
Data
|
Data status
|
|
PWR
|
Power Status
|
|
Dimensions(WxDxH):
|
104 x 104 x 28 mm
|
|
Weight:
|
1Kg
|
|
Casing:
|
Metal Case
|
|
Mounting Options:
|
Wall-mount/Rack-mount
|
|
Regulatory Approvals
|
|
ISO9001
|
|
CE, RoHS and FCC
|
HD-Video Fiber Converter Ordering Information
|
Model
|
Details
|
|
LNK-5MP-1V-20
|
1-Ch HD-AHD/CVI/TVI/CVBS video (5MP 4MP 3MP 1080P 720P Camera), 20km, single mode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs
|
|
LNK-5MP-1V-20R
|
1-Ch HD-AHD/CVI/TVI/CVBS video (5MP 4MP 3MP 1080P 720P Camera ) + 1-Ch Backward Data RS485 (for PTZ Cameras), 20km, single mode single fiber, FC, including 1 transmitter & 1 receiver, used by pairs
|
HD-Video Fiber Converter Application
After-Sales and Warranty Policy
It is composed of online customer service and telephone customer service, providing product consultation,
remote technical support, maintenance and acceptance services.
Service Policy: Three-month replacement and three-year warranty.
Replacement: Within three months of purchasing a series of products, after testing the product failure
by technicians and man-made damage caused by non-natural disasters, the purchaser can directly
go to the purchasing point to replace the same type of products.Or a product of comparable performance.
If there is no trouble in product testing, the original sample will be returned.
Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.
[The following circumstances do not fall within the scope of replacement and free maintenance]
1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
