Industrial 8-Port Gigabit + 6 SFP Hardened Ethernet Switch -40~80°C DIN-Rail

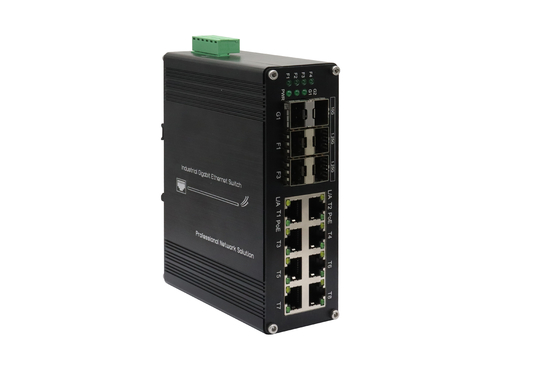

Large Image : Industrial 8-Port Gigabit + 6 SFP Hardened Ethernet Switch -40~80°C DIN-Rail

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, RoHS, FCC, ISO9001
Model Number:	LNK-IMC608G-SFP
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$99-$125
Packaging Details:	Fiber Optic Switch Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	T/T,Western Union,MoneyGram,paypal,Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Ports:	8 × RJ45 Gigabit, 6 × SFP Gigabit	Switching Capacity:	Wire-speed Forwarding Up To 1.488Mpps
Packet Buffer:	2.75Mbit, 9K Jumbo Frame Support	Power:	12–48VDC, Redundant With Auto-recovery
Certifications:	ISO9001, EN55022/24, IEC 61000-4 Surge/EMI Immunity	Installation:	DIN-Rail Mount, Compact 149×114×50mm, 0.55kg
Highlight:	Industrial 8-port Gigabit DIN-rail switch , Hardened Ethernet switch with SFP ports , Gigabit fiber optic switch for extreme temperatures

Industrial 8-Port Gigabit + 6 SFP Hardened Ethernet Switch -40~80°C DIN-Rail

Overview

The LNK-IMC608G-SFP Series is a rugged industrial-grade Ethernet switch featuring 8

Gigabit RJ45 ports and 6 Gigabit SFP slots. Designed for harsh environments, it delivers

reliable high-speed connectivity for IP cameras, wireless APs, and remote networking

deployments. With redundant power inputs, aluminum IP40 housing, and wide operating

temperature, it ensures uninterrupted operation in mission-critical applications.

Features

High Port Density: 8x 10/100/1000 RJ45 + 6x 1000Base-X SFP

Industrial Reliability: IP40 aluminum case, MTBF >200,000 hrs

Extended Temperature: Operates from -40°C to +80°C

Efficient Networking: Supports Jumbo Frame (9K) & IEEE 802.3az EEE

Resilient Power: Dual redundant 12~48VDC inputs with protection

DIN-Rail Mount: Compact, easy-to-install form factor

Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX/FX
	IEEE802.3ab 1000BASE-T
	IEEE802.3z 1000BASE-X
	IEEE802.3p QoS
	IEEE802.1d Spanning Tree
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	2.75M bits
Processing Type:	Store-and-Forward
Max Packet Length:	9K Bytes Jumbo Frame
Address Table Size:	8K MAC Addresses
Interface
Connector:	8 x RJ45
Optical Port:	6 x 1000Base-X SFP
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	12~48VDC, Redundant Power (6-pin Terminal Block)
Power Consumption:	8W Max.
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
LED Indicators:
Power:	Power Status
Ethernet (Per Port):	Link/Activity
Fiber:	Gigabit SFP Port: F1~F6
Dimensions (WxDxH):	149 x 114 x 50 mm
Weight:	0.55Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail mount
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC608G-SFP	Industrial 8-Port 10/100/1000T + 6-Port 1000X SFP Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed
Power Options	► DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.
