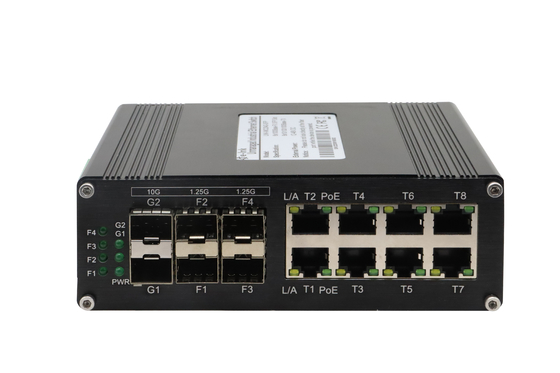

Industrial 8-Port Gigabit PoE+ 6-Port SFP Hardened Ethernet Switch 240W

Large Image : Industrial 8-Port Gigabit PoE+ 6-Port SFP Hardened Ethernet Switch 240W

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, RoHS, FCC, ISO9001
Model Number:	LNK-IMC608GP-SFP
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$119-$145
Packaging Details:	Industrial Ethernet PoE Switch Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	T/T,Western Union,MoneyGram,paypal,Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

PoE Power:	Up To 240W Total, 30W Per Port (802.3af/at)	Uplinks:	6× Gigabit SFP For Flexible Fiber Expansion
Throughput:	Wire-speed Switching, 1.488Mpps @ 1Gbps	Installation:	Compact 149×114×50mm, DIN-Rail Mountable
Reliability:	Dual DC Power Input With Overload & Reverse Protection	Environment:	-40°C To 80°C Operation, Fanless Design
Highlight:	Industrial 8-port Gigabit PoE+ switch , Hardened Ethernet switch with SFP , 240W industrial PoE switch

Industrial 8-Port Gigabit PoE+ 6-Port SFP Hardened Ethernet Switch 240W

Overview

The LNK-IMC608GP-SFP Series is a rugged, high-performance industrial Ethernet switch

designed for demanding environments. Featuring 8 Gigabit PoE+ ports and 6 Gigabit SFP

uplinks, it delivers up to 240W PoE power for IP cameras, wireless APs, and other powered

devices. With its hardened aluminum housing, redundant power input, and wide operating

temperature range (-40°C to 80°C), it ensures reliable connectivity in mission-critical

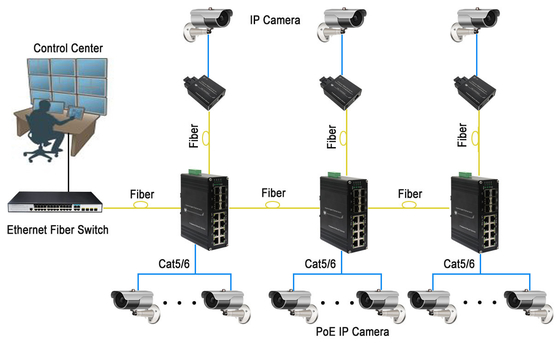

applications such as surveillance, transportation, and industrial automation.

Features

8× Gigabit PoE+ Ports (802.3af/at) — Up to 240W PoE budget for IP cameras and APs

6× Gigabit SFP Slots — Flexible fiber uplinks for long-distance transmission

Rugged Industrial Design — IP40 aluminum housing with DIN-Rail mounting

Wide Temperature Tolerance — Reliable operation from -40°C to 80°C

Redundant Power Inputs — 48~57VDC with protection against overload & reverse polarity

High Performance Switching — 8K MAC, 2.75M buffer, and 9K jumbo frame support

Energy Efficient — IEEE 802.3az compliant for reduced power consumption

EMC & Safety Certified — Meets EN55022/55024, IEC61000 standards

Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX/FX
	IEEE802.3ab 1000BASE-T
	IEEE802.3z 1000BASE-X
	IEEE802.3p QoS
	IEEE802.1d Spanning Tree
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	2.75M bits
Processing Type:	Store-and-Forward
Max Packet Length:	9K Bytes Jumbo Frame
Address Table Size:	8K MAC Addresses
Interface
Connector:	8 x RJ45
Optical Port:	6 x 1000Base-X SFP
PoE (Power over Ethernet)
Standard:	IEEE 802.3at Power over Ethernet Plus
Standard:	IEEE 802.3af Power over Ethernet
ort:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
PoE Budget:	Up to 240-watt PoE budget
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	48~57VDC, Redundant Power (6-pin Terminal Block)
Power Consumption:	8W Max.(PoE in Use<240W)
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
LED Indicators:
Power:	Power Status
Ethernet(Per Port):	Link/Activity
PoE (Optional)	PoE Status
Fiber:	Gigabit SFP Port: F1~F6
Dimensions (WxDxH):	149 x 114 x 50 mm
Weight:	0.55Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail mount
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC608GP-SFP	Industrial 8-Port 10/100/1000T 802.3at PoE + 6-Port 1000X SFP Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed
Power Options	► DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.
