Industrial 8-Port PoE Gigabit + 4 SFP + 2x10G SFP+ Hardened Switch

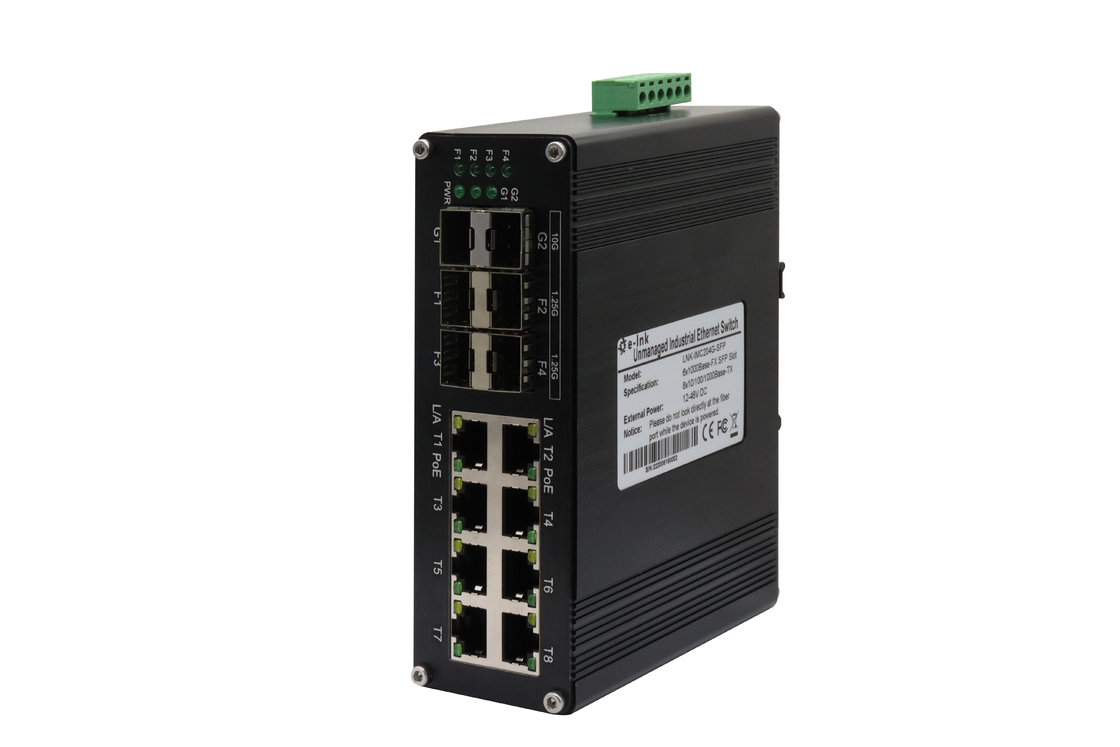

Large Image : Industrial 8-Port PoE Gigabit + 4 SFP + 2x10G SFP+ Hardened Switch

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, RoHS, FCC, ISO9001
Model Number:	LNK-IMC2X4S8GP
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$139-$165
Packaging Details:	Industrial Ethernet PoE Switch Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal,Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Ports:	8x 10/100/1000 PoE RJ45, 4x 1G SFP, 2x 10G SFP+	PoE Standard:	IEEE802.3af/at, Up To 240W Total
Switching Capacity:	Line-rate Forwarding Up To 10Gbps Uplink	Power Input:	Dual 48–57VDC, Redundant Protection
Temperature::	-40°C To 80°C Operating Range	Casing:	IP40 Rugged Aluminum, DIN-rail Mount
Highlight:	Industrial 8-port PoE Gigabit switch , Hardened Ethernet switch with SFP+ , 10G SFP+ industrial PoE switch

Industrial 8-Port PoE Gigabit + 4 SFP + 2x10G SFP+ Hardened Switch

Overview

The LNK-IMC2X4S8GP Series is an industrial-grade Ethernet switch featuring 8

PoE-enabled Gigabit ports, 4 Gigabit SFP uplinks, and 2 high-speed 10G SFP+ slots.

Designed with a rugged aluminum case, wide -40°C to 80°C operating range, and

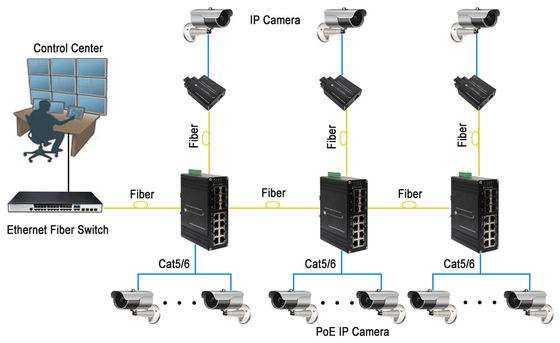

redundant power inputs, it ensures reliable connectivity for mission-critical networks such

as IP surveillance, wireless backhaul, and industrial automation.

Features

High-density ports: 8x Gigabit PoE, 4x Gigabit SFP, 2x 10G SFP+ uplinks

240W PoE budget to power IP cameras, APs, or VoIP phones

Rugged design with IP40 aluminum housing & wide temp tolerance (-40°C~80°C)

Advanced performance: Jumbo frames up to 9K, 8K MAC address table, 2.75M buffer

Reliable power: Dual redundant 48~57VDC inputs with overload & reverse polarity

protection

Industrial compliance: Meets EN/IEC standards for ESD, surge, and vibration immunity

Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX/FX
	IEEE802.3ab 1000BASE-T
	IEEE802.3z 1000BASE-X
	IEEE802.3ae 10GBase-R
	IEEE802.3p QoS
	IEEE802.1d Spanning Tree
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
	1,488,000,000pps (10000Mbps)
Packet Buffer Memory:	2.75M bits
Processing Type:	Store-and-Forward
Max Packet Length:	9K Bytes Jumbo Frame
Address Table Size:	8K MAC Addresses
Interface
Connector:	8 x RJ45
Optical Port:	4 x 1000Base-X SFP 2 x 10G Base-SR/LR SFP+
PoE (Power over Ethernet)
Standard:	IEEE 802.3at Power over Ethernet Plus
Standard:	IEEE 802.3af Power over Ethernet
ort:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
PoE Budget:	Up to 240-watt PoE budget
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	48~57VDC, Redundant Power (6-pin Terminal Block)
Power Consumption:	8W Max.(PoE in Use<240W)
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
LED Indicators:
Power:	Power Status
Ethernet(Per Port):	Link/Activity
PoE (Optional)	PoE Status
Fiber:	Gigabit SFP Port: F1~F4
Fiber:	10G SFP+ Port: G1, G2
Dimensions (WxDxH):	149 x 114 x 50 mm
Weight:	0.55Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail mount
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC2X4S8GP	Industrial 8-Port 10/100/1000T 802.3at PoE + 4-Port 1G SFP + 2-Port 10G SFP+ Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed
Power Options	► DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.
