Mini Industrial 8-Port PoE+ 2-Port Gigabit Ethernet Switch DIN-Rail -40~80°C

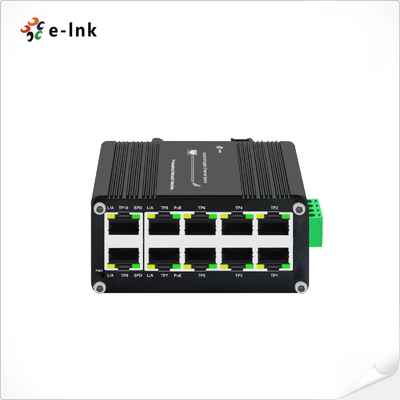

Large Image : Mini Industrial 8-Port PoE+ 2-Port Gigabit Ethernet Switch DIN-Rail -40~80°C

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, RoHS, FCC, ISO9001
Model Number:	LNK-IMC208SGP-SFP
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$39.9
Packaging Details:	Industrial Ethernet PoE Switch Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal,Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Type:	Mini Industrial PoE+ Gigabit Switch	Ports:	8× PoE+ RJ45, 2× Gigabit RJ45
PoE Standard:	IEEE 802.3af/at, Max 30W Per Port	Operating Temp:	-40°C ~ 80°C, Fanless
Housing:	IP40 Aluminum Case, DIN-Rail Mountable	Certifications:	CE, FCC, RoHS, IEC Standards

Mini Industrial 8-Port PoE+ 2-Port Gigabit Ethernet Switch DIN-Rail -40~80°C

Overview

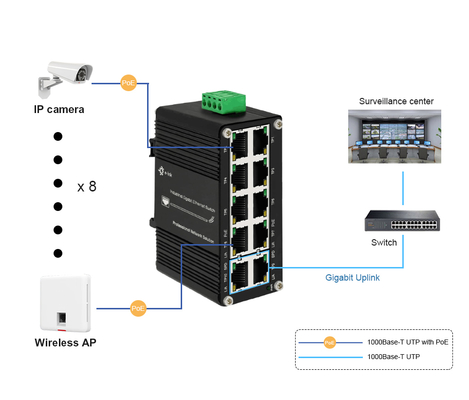

The LNK-IMC010GP is a compact industrial Gigabit switch with 8 PoE+ RJ45 ports and 2

additional Gigabit RJ45 ports for uplinks. Delivering up to 240W PoE budget and fanless

operation, it ensures reliable power and data transmission for IP cameras, wireless APs, and

other powered devices in harsh environments. Its IP40 rugged metal housing and wide -40°C

to 80°C operating range make it ideal for industrial automation, traffic control, and outdoor

applications.

Features

8× 10/100/1000T PoE+ ports + 2× 10/100/1000T uplink ports for flexible network deployment

Up to 240W PoE budget, supporting 30W per port for high-power devices

Fanless, ventilated design with IP40 metal housing for harsh industrial environments

Redundant 48~57VDC power input with reverse polarity & overload protection

IEEE 802.3x flow control & IEEE 802.3az EEE for energy-efficient operation

DIN-Rail mountable for compact installations

Surge, ESD, shock, vibration protection ensures robust industrial performance

Operating range: -40°C to 80°C, ideal for extreme conditions

Technical Indexes

Ethernet
Standards:	IEEE 802.3 Ethernet
	IEEE 802.3u Fast Ethernet
	IEEE 802.3ab Gigabit Ethernet
	IEEE 802.3x Full-Duplex Flow Control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer:	2Mbits
Packet Length:	9216bytes
MAC Address Table:	4K entries
Switch Fabric:	20Gbps/non-blocking
Switch Throughput (packet per second)	14.88Mpps@64bytes
Interface
Connector:	10 10/100/1000BASET RJ45 auto-MDI/MDI-X ports 8 ports with 802.3at PoE+ injector function (Port 1 to 8)
PoE (Power over Ethernet)
Standard:	IEEE 802.3at Power over Ethernet Plus/PSE IEEE 802.3af Power over Ethernet/PSE
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
PoE Budget:	Up to 240-watt PoE budget
Max. Number of Class 4 PDs	8
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 100,000 hrs
Electrical and Mechanical
Input Power:	48~57VDC Redundant power with polarity reverses protection function
Power Consumption:	<250W (Non-PoE<10W)
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
Dimensions (WxDxH):	95 x 88 x 46mm
Weight:	400g
Casing:	Aluminum Case
Mounting Options:	DIN-Rail mount
LED Indicators:
PWR	Power
L/A	Link/Activity
SPD	Data Rate
PoE	Max 30W per port
Regulatory Approvals
EMC	CE (EN55032, EN55035)
EMI	FCC Part 15 Subpart B
EMS	EN61000-4-2 (ESD) EN61000-4-3 (RS)
	EN61000-4-4 (EFT) EN61000-4-5 (Surge)
	EN61000-4-6 (CS) EN61000-4-8 (PFMF) EN61000-4-11
Safety	CE (EN60950-1)
Surge Protection	8KV for PoE, RJ-45 and SFP ports
Shock	IEC60068-2-27
Freefall	IEC60068-2-32
Vibration	IEC60068-2-6

Ordering Information

Model	Description
LNK-IMC010GP	Mini Industrial 8-Port 10/100/1000T 802.3at PoE + 2-Port 10/100/1000T Compact Ethernet Switch
Mounting Options	► Default DIN-Rail Bracket installed.
Power Options	► Power Supply is to be purchased separately
