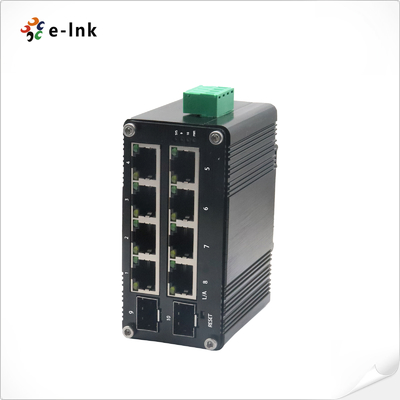

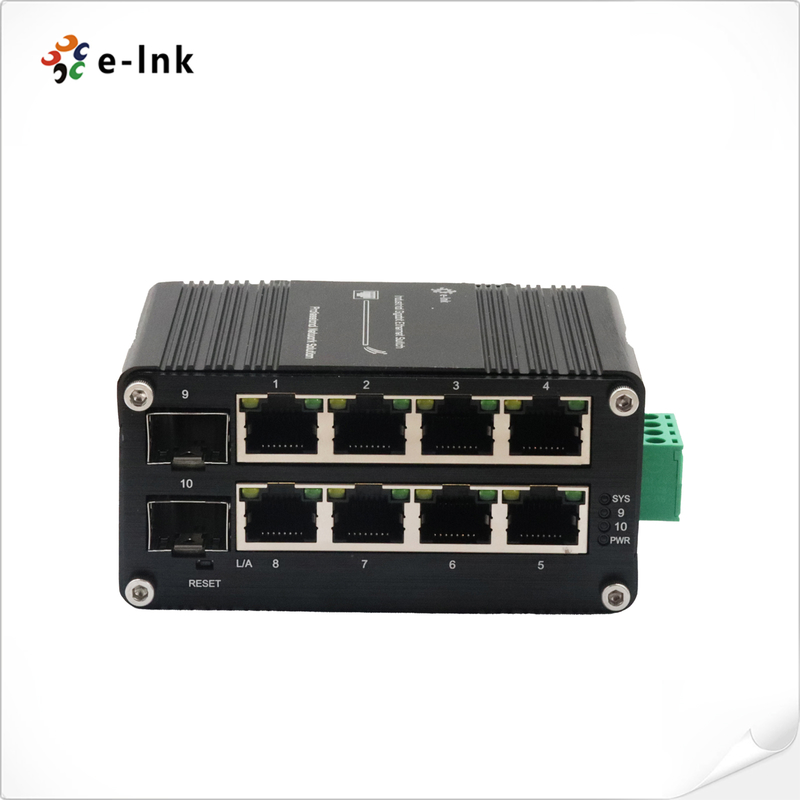

Mini Industrial Managed 8G 2SFP Gigabit Ethernet Switch DIN-Rail -40~80°C

Large Image : Mini Industrial Managed 8G 2SFP Gigabit Ethernet Switch DIN-Rail -40~80°C

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	ISO9001, CE, RoHS, FCC
Model Number:	LNK-IMC208SG-SFP
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1PCS
Price:	$59-$85
Packaging Details:	Ethernet Switch Standard Export Package
Delivery Time:	3~5 working days
Payment Terms:	Paypal,TT,Western Union,MoneyGram,Alipay
Supply Ability:	5000pcs per month

Contact Now

Detailed Product Description

Type:	Managed Industrial Gigabit Switch	Ports:	8×10/100/1000 RJ45, 2×100/1000 SFP
Management:	Web-based, VLAN/QoS/IGMP/STP/RSTP	Power:	12–48VDC, Redundant, Max 5W
Mounting:	DIN-Rail, Aluminum Case	Certifications:	CE, FCC, RoHS, ISO9001

Mini Industrial Managed 8G 2SFP Gigabit Ethernet Switch DIN-Rail -40~80°C

Overview

The LNK-IMC208SG-SFP is a compact, managed industrial Gigabit switch with 8 RJ45 ports

and 2 dual-speed SFP slots. Designed for mission-critical networks, it delivers reliable

connectivity, advanced VLAN/QoS, and redundant DC power for uninterrupted operation in

harsh environments. Ideal for surveillance, wireless backhaul, and industrial automation.

Features

8× Gigabit RJ45 + 2× 100/1000Mbps SFP for flexible fiber uplinks

Wide temperature range -40°C to 80°C with rugged aluminum housing

Advanced L2 management: VLAN, QoS, IGMP Snooping, STP/RSTP

Redundant 12~48VDC power input with overload & reverse polarity protection

9K jumbo frame & 20Gbps switching capacity for high-performance traffic

DIN-Rail mountable for space-saving industrial installation

Security features: storm control, MAC filtering, broadcast/multicast protection

Energy Efficient Ethernet (IEEE 802.3az) reduces power consumption

Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX/FX
	IEEE802.3ab 1000BASE-T
	IEEE802.3z 1000BASE-X
	IEEE 802.3az Energy Efficient Ethernet (EEE)
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Backplane bandwidth	20Gbps
Packet Buffer Memory:	9216 bits
Processing Type:	Store-and-Forward
Max Packet Length:	9K Bytes Jumbo Frame
Address Table Size:	4K MAC Addresses
Interface
Connector:	8 x RJ45
Optical Port:	2 x 100/1000Base-X SFP
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	12~48VDC, Redundant Power (4-pin Terminal Block)
Power Consumption:	5W Max.
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
LED Indicators:
PWR:	Power Status
Ethernet (Per Port):	Link/Activity
Fiber:	Gigabit SFP Port: F9~F10
Dimensions (WxDxH):	95 x 63 x 46 mm
Weight:	300g
Casing:	Aluminum Case
Mounting Options:	DIN-Rail mount
Software Features
Redundancy Protocols	Support STP/RSTP
Multicast Support	Support IGMP Snooping V1/V2/V3
VLAN	Support IEEE 802.1Q 4K VLAN
QOS	Support Port, 1Q, ACL, DSCP, CVLAN, SVLAN, DA, SA, Port Priority, Queue Weight
Diagnostic Maintenance	Support port mirroring, Syslog, Ping
Management Function	WEB
Security	Broadcast/Multicast Storm Protection, MAC filtering, MAC Constraint
Regulatory Approvals
ISO9001, CE, RoHS, FCC
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC208SG-SFP	Mini Industrial Managed 8-Port 10/100/1000T + 2-Port 100/1000X SFP Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.
