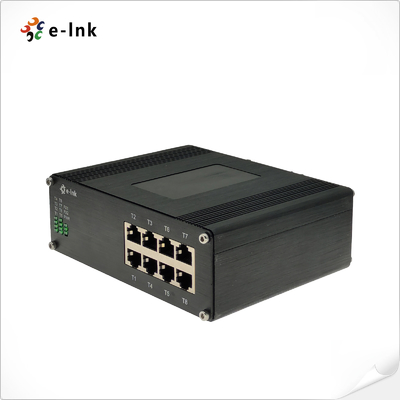

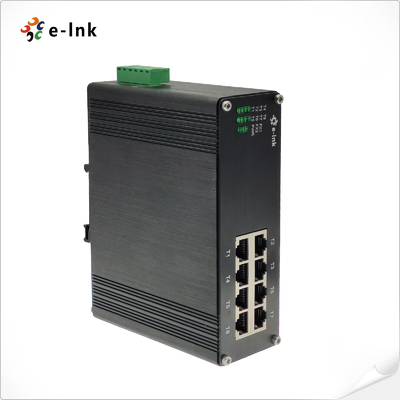

Unmanaged Industrial 8-Port Gigabit Ethernet Switch DIN-Rail Wall Mount
Overview
The LNK-IMC008G Series is an unmanaged industrial Gigabit Ethernet switch featuring
8 RJ45 ports at 10/100/1000Mbps. Designed for high-speed, reliable data transmission
in harsh environments, it offers IP40 dustproof aluminum housing, redundant 12–48VDC
power inputs, and a wide -40°C to 80°C operating range. Ideal for industrial automation,
high-bandwidth surveillance, and factory networking, it provides a cost-effective
plug-and-play solution for demanding applications.
Features
8× 10/100/1000Base-TX RJ45 ports, auto-negotiation, Full/Half-duplex, Auto MDI/MDIX
Unmanaged plug-and-play, no configuration required
High-performance switching: 16Gbps switch fabric, 10K jumbo frame, 16K MAC addresses
Rugged industrial design: IP40 dustproof, high-strength aluminum case
Wide temperature support: -40°C to 80°C
Redundant 12–48VDC power inputs with overload & reverse polarity protection
Low power consumption: ≤5W
Flexible mounting: DIN-Rail or wall-mountable
Energy-efficient: IEEE 802.3az EEE, supports 802.3x flow control
High reliability: MTBF >200,000 hrs, CE/FCC compliant
Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.3 10BASE-T
|
|
IEEE802.3u 100BASE-TX
|
|
IEEE802.3ab 1000BASE-T
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE)
|
|
IEEE802.3z 1000BASE-X
|
|
Forward & Filtering Rate:
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
1,488,000pps (1000Mbps)
|
|
Packet Buffer Memory:
|
2M bits
|
|
Switch Fabric:
|
16 Gbps
|
|
Max Packet Length:
|
10K Bytes
|
|
Address Table Size:
|
16K MAC Addresses
|
|
Interface
|
|
Connector:
|
8 x RJ45
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 80°C (-40°F to 176°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Electrical and Mechanical
|
|
Input Power:
|
12~48VDC, Redundant Power (6-pin Terminal Block)
|
|
Power Consumption:
|
5W Max.
|
|
Protection:
|
|
Power Input Overload:
|
Automatic Resettable
|
|
Reverse Polarity:
|
Present
|
|
LED Indicators:
|
|
Power:
|
Power1, Power2 Status
|
|
Ethernet (Per Port):
|
Link/Activity
|
|
Dimensions (WxDxH):
|
150 x 115 x 50 mm
|
|
Weight:
|
0.6Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
Regulatory Approvals
|
|
ISO9001
|
|
EN55022:2010+AC: 2011, Class A
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009
|
|
EN 61000-3-3: 2013
|
|
EN55024:2010
|
|
IEC 61000-4-2: 2008 (ESD)
|
|
IEC 61000-4-3: 2010 (RS)
|
|
IEC 61000-4-4: 2012 (EFT)
|
|
IEC 61000-4-5: 2014 (Surge)
|
|
IEC 61000-4-6: 2013 (CS)
|
|
IEC 61000-4-8: 2009 (PFMF)
|
Ordering Information
|
Model
|
Description
|
|
LNK-IMC008G
|
Industrial 8-port 10/100/1000BASE-T Ethernet Switch
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
|
Power Options
|
► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
|
|
► Power Supply is to be purchased separately.
|
