Industrial 6-Port Fast Ethernet Switch + 3 Fiber Ports Hardened DIN-Rail

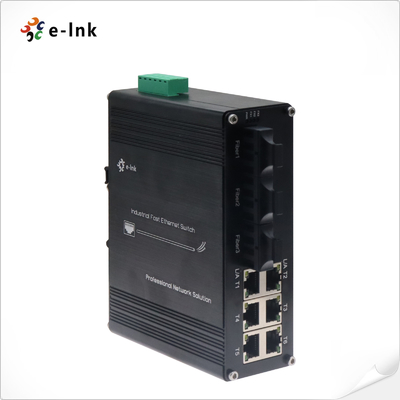

Large Image : Industrial 6-Port Fast Ethernet Switch + 3 Fiber Ports Hardened DIN-Rail

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, RoHS, FCC, ISO9001
Model Number:	LNK-IMC306
Document:	E-link LNK-IMC306 Series In....0.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$110-$149
Packaging Details:	Fiber Optic Switch Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal,Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Ports:	6× RJ45 (10/100Mbps) + 3× 100Base-FX Fiber	Switching Capacity:	148.8Kpps @100M, 14.88Kpps @10M
Power Input:	12–48VDC, Redundant Terminal Block	Operating Temp:	-40°C To 80°C
Housing:	Aluminum, DIN-Rail Mount	Dimensions:	150 × 115 × 50 Mm

Industrial 6-Port Fast Ethernet Switch + 3 Fiber Ports Hardened DIN-Rail

Overview

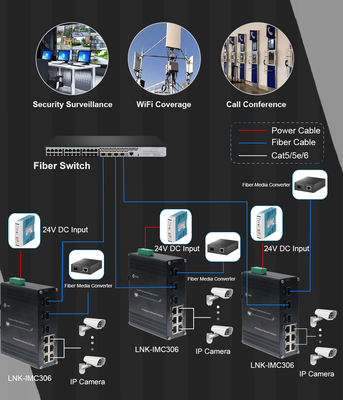

The LNK-IMC306 Series is a rugged industrial Ethernet switch featuring 6 Fast Ethernet

RJ45 ports and 3 fiber uplinks (SFP/SC/FC/ST optional). Designed for reliable long-distance

transmission, it is ideal for surveillance, wireless backhaul, and remote networking. With

redundant DC inputs, -40°C to 80°C wide temperature support, and a compact DIN-Rail

aluminum enclosure, this switch ensures stable performance in harsh industrial

environments.

Features

6× 10/100Base-TX RJ45 + 3× 100Base-FX fiber ports

Flexible fiber options: SFP, SC, FC, or ST interface

Energy-efficient: IEEE 802.3az compliance with low 5W max consumption

Industrial-grade reliability: MTBF >200,000 hrs, rugged aluminum case

Redundant 12–48VDC power inputs with overload & reverse polarity protection

Harsh environment ready: Operates at -40°C to 80°C

DIN-Rail mount design for easy deployment in control cabinets

Standards compliant: ISO9001, CE, EMC, ESD, EFT, surge immunity

Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX/FX
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3x Flow Control
Forward & Filtering Rate:	14,880pps (10Mbps)
Forward & Filtering Rate:	148,800pps (100Mbps)
Packet Buffer Memory:	512K bits
Processing Type:	Store-and-Forward
Address Table Size:	1024 MAC Addresses
Interface
Connector:	6 x RJ45
Optical Port:	3 x 100Base-FX (SFP, SC, FC, ST Optional)
Ethernet Port	RJ45 Port 1 ~ Port 6
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	12~48VDC, Redundant Power (6-pin Terminal Block)
Power Consumption:	5W Max.
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
LED Indicators:
Power:	PWR Status
Ethernet (Per Port):	Link/Activity
Fiber:	FX1, FX2, FX3
Dimensions (WxDxH):	150 x 115 x 50 mm
Weight:	0.6Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC306	Industrial Ethernet Switch: 6-Port 10/100Base-TX + 3-port 100BASE-FX Fiber, Multimode, Dual Fiber, SC, 2KM
LNK-IMC306-20	Industrial Ethernet Switch: 6-Port 10/100Base-TX + 3-port 100BASE-FX Fiber, Single Mode, Dual Fiber, SC, 20KM
LNK-IMC306S-20	Industrial Ethernet Switch: 6-Port 10/100Base-TX + 3-port 100BASE-FX Fiber, Single Mode, Single Fiber, SC, 20KM
LNK-IMC306F-20	Industrial Ethernet Switch: 6-Port 10/100Base-TX + 3-port 100BASE-FX Fiber, Single Mode, Single Fiber, FC, 20KM
LNK-IMC306-SFP	Industrial 6-port 10/100BASE-T + 3-port 100BASE SFP Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed.
Power Options	► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.
