Industrial 8-Port Gigabit PoE+ Switch with 2 Fiber Uplink Rugged Design

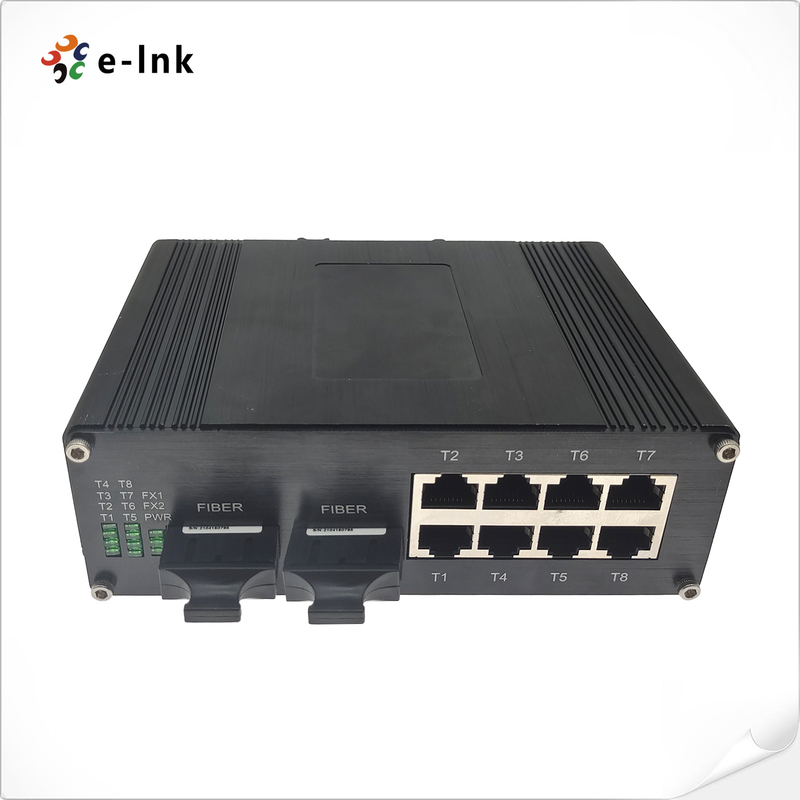

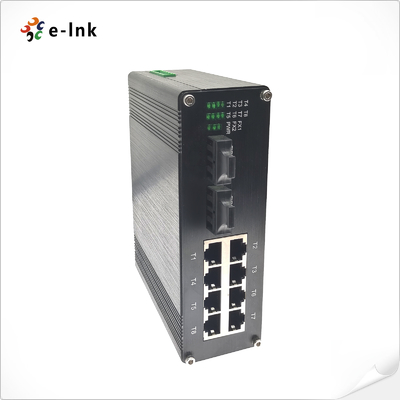

Large Image : Industrial 8-Port Gigabit PoE+ Switch with 2 Fiber Uplink Rugged Design

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, RoHS, FCC, ISO9001
Model Number:	LNK-IMC208GP
Document:	E-link LNK-IMC208GP Series ....1.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$120-$159
Packaging Details:	Industrial Ethernet PoE Switch Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal,Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

RJ45 Ports:	8 × 10/100/1000Base-T PoE+	Fiber Ports:	2 × 100/1000Base-X (SFP/SC/FC/ST Optional)
Power Input:	48–57VDC, Redundant, Overload & Reverse Protection	Operating Temp:	-40°C To 80°C (-40°F To 176°F)
Housing:	Aluminum	Mounting:	DIN-Rail

Industrial 8-Port Gigabit PoE+ Switch with 2 Fiber Uplink Rugged Design

Overview

LNK-IMC208GP Series is a robust industrial 8-port Gigabit PoE+ switch with 2 fiber uplinks.

It delivers up to 30W per PoE port and redundant power support, ideal for IP cameras,

wireless APs, and harsh outdoor or factory environments. DIN-Rail mounting and wide

temperature tolerance ensure reliable long-term operation.

Features

8 × Gigabit RJ45 PoE+ ports, 2 × Gigabit fiber uplink ports (SFP/SC/FC/ST optional)

30W PoE+ per port, total 253W power budget

Supports Auto MDI/MDIX, Full/Half-duplex, 802.3x flow control

Store-and-forward switching with jumbo frame up to 9K bytes

Wide operating temperature: -40°C to 80°C (-40°F to 176°F)

Redundant DC power input for uninterrupted operation

DIN-Rail mount for industrial installations

Energy-efficient design with IEEE 802.3az EEE

Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX/FX
	IEEE802.3ab 1000BASE-T
	IEEE802.3z 1000BASE-X
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	2.75M bits
Processing Type:	Store-and-Forward
Max Packet Length:	9K Bytes Jumbo Frame
Address Table Size:	4K MAC Addresses
Interface
Connector:	8 x RJ45
Optical Port:	2 x 100/1000Base-FX (SFP, SC, FC, ST Optional)
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	48~57VDC, Redundant Power (6-pin Terminal Block)
Power Consumption:	253W Max. (PoE in use)
Power Consumption:	5W Max. (PoE not in use)
Standard:	IEEE802.3af/at
PoE:
Port:	RJ45 Port 1 ~ Port 8
Max. Power per Port:	30W Max per port
Power Pin Assignment	1/2(+), 3/6(-) or 4/5(+), 7/8(-)
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
LED Indicators:
Power:	Power1, Power2 Status
PoE:	Per Port Status
Ethernet(Per Port):	Link/Activity
Fiber:	FX1, FX2
Dimensions (WxDxH):	150 x 115 x 50 mm
Weight:	0.6Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail mount
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC208GP	Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE+) + 2-port 100/1000BASE-X Fiber, Multimode, Dual Fiber, SC, 550m
LNK-IMC208GP-20	Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE+) + 2-port 100/1000BASE-X Fiber, Single Mode, Dual Fiber, SC, 20KM
LNK-IMC208GPS-20	Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE+) + 2-port 100/1000BASE-X Fiber, Single Mode, Single Fiber, SC, 20KM
LNK-IMC208GPF-20	Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE+) + 2-port 100/1000BASE-X Fiber, Single Mode, Single Fiber, FC, 20KM
LNK-IMC208GP-SFP	Industrial 8-port 10/100/1000BASE-T (8-port PoE+) + 2-port 100/1000BASE SFP Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed
Power Options	► 240W/5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.
