Industrial 8-Port Gigabit Ethernet Switch with 2 Fiber Uplink Redundant Power

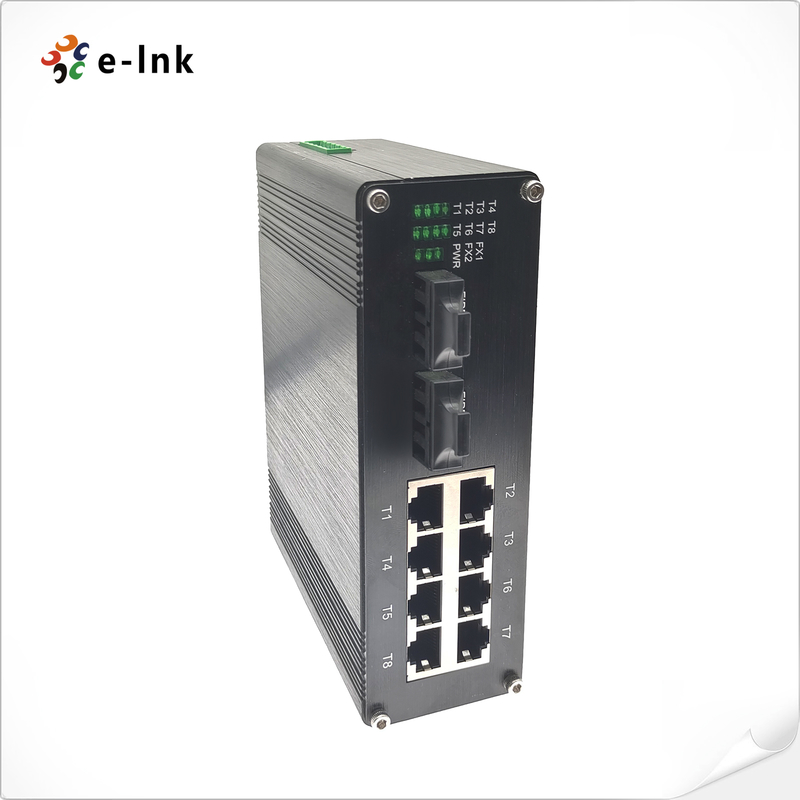

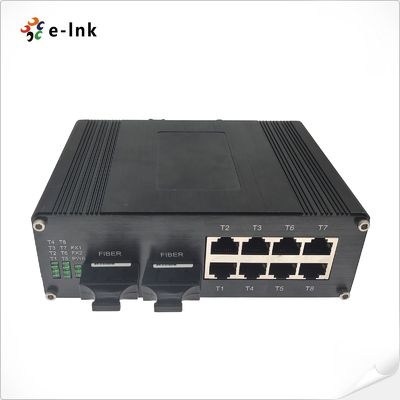

Large Image : Industrial 8-Port Gigabit Ethernet Switch with 2 Fiber Uplink Redundant Power

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, RoHS, FCC, ISO9001
Model Number:	LNK-IMC208G
Document:	E-link LNK-IMC208G Series I....0.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$120-$159
Packaging Details:	Fiber Optic Switch Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal,Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Ports:	8 × 10/100/1000Base-T RJ45, 2 × 1000Base-X Fiber (SFP/SC/FC/ST Optional)	Power Input:	12~58VDC, Redundant
Operating Temp:	-40°C To 80°C (-40°F To 176°F)	Casing:	Aluminum
Mounting:	DIN-Rail / Wall-mount	Dimensions:	150 × 115 × 50 Mm

Industrial 8-Port Gigabit Ethernet Switch with 2 Fiber Uplink Redundant Power

Overview

The LNK-IMC208G Series is an 8-port 10/100/1000Base-TX + 2-port 1000Base-X hardened

industrial switch. Designed for reliable, high-speed network connections in harsh

environments, it supports Gigabit RJ45 and fiber ports, redundant power, and wide operating

temperature, making it ideal for IP cameras, wireless access points, and remote networking

applications.

Features

8 × 10/100/1000Base-TX and 2 × 1000Base-X fiber ports (SFP/SC/FC/ST optional)

Supports Auto MDI/MDIX, Full/Half-duplex, and IEEE 802.3x flow control

IEEE 802.3az Energy Efficient Ethernet (EEE)

Wide operating temperature: -40°C to 80°C (-40°F to 176°F)

Redundant power input for high reliability

Store-and-forward switching with jumbo frame support (9K bytes)

DIN-Rail and Wall-mount installation

Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX/FX
	IEEE802.3x Flow Control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3ab 1000BASE-T
	IEEE802.3z 1000BASE-X
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	2.75M bits
Processing Type:	Store-and-Forward
Max Packet Length:	9K Bytes Jumbo Frame
Address Table Size:	4K MAC Addresses
Interface
Connector:	8 x RJ45
Optical Port:	2 x 1000Base-FX (SFP, SC, FC, ST Optional)
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	12~58VDC, Redundant Power (6-pin Terminal Block)
Power Consumption:	5W Max.
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
LED Indicators:
Power:	Power1, Power2 Status
Ethernet (Per Port):	Link/Activity
Fiber:	FX1, FX2
Dimensions (WxDxH):	150 x 115 x 50 mm
Weight:	0.6Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC208G	Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX + 2-port 1000BASE-X Fiber, Multimode, Dual Fiber, SC, 550m
LNK-IMC208G-20	Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX + 2-port 1000BASE-X Fiber, Single Mode, Dual Fiber, SC, 20KM
LNK-IMC208GS-20	Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX + 2-port 1000BASE-X Fiber, Single Mode, Single Fiber, SC, 20KM
LNK-IMC208GF-20	Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX + 2-port 1000BASE-X Fiber, Single Mode, Single Fiber, FC, 20KM
LNK-IMC208G-SFP	Industrial 8-port 10/100/1000BASE-T + 2-port 1000BASE SFP Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.
