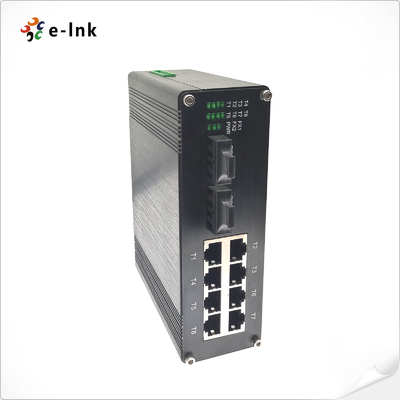

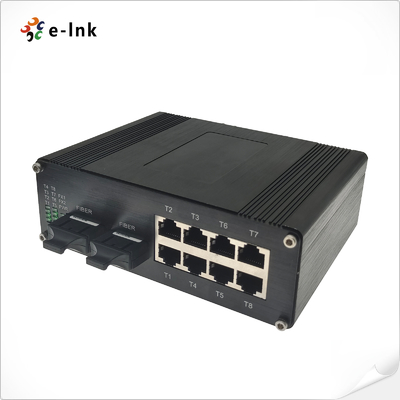

Industrial 8-Port 10/100Base-T + 2-Port 100BASE-FX Hardened Ethernet Switch

Large Image : Industrial 8-Port 10/100Base-T + 2-Port 100BASE-FX Hardened Ethernet Switch

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, RoHS, FCC, ISO9001
Model Number:	LNK-IMC208
Document:	E-link LNK-IMC208 Series In....0.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$90-$129
Packaging Details:	Fiber Optic Switch Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	T/T,Western Union,MoneyGram,paypal,Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Ports:	8 × 10/100Base-TX RJ45, 2 × 100Base-FX Fiber (SFP/SC/FC/ST Optional)	Operating Temperature:	-40°C To 80°C (-40°F To 176°F)
Input Power:	12~58VDC, Redundant Power (6-pin Terminal Block)	Dimensions (WxDxH):	150 X 115 X50 Mm
Casing:	Aluminum Case	Mounting Options:	DIN-Rail / Wall-mount

Industrial 8-Port 10/100Base-T + 2-Port 100BASE-FX Hardened Ethernet Switch

Overview

LNK-IMC208 Series is an 8-port 10/100Base-TX + 2-port 100Base-FX hardened Ethernet

switch designed for industrial environments. Featuring reliable RJ45 and fiber ports, wide

operating temperature range, and redundant power inputs, it ensures stable data

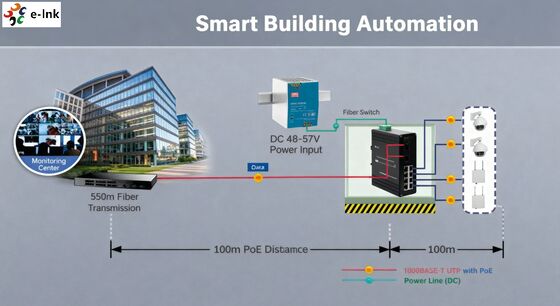

transmission for IP cameras, wireless access points, and other network devices in harsh

conditions. Ideal for industrial and outdoor network deployments.

Features

8 × 10/100Base-TX ports with auto-negotiation, Full/Half-duplex, Auto MDI/MDIX

2 × 100Base-FX fiber ports, SFP, SC, FC, ST optional

Supports IEEE 802.3x Flow Control and IEEE 802.3az Energy Efficient Ethernet (EEE)

Redundant power inputs for reliable operation

Wall-mount and DIN-Rail installation

Hardened design with -40°C to 80°C operating temperature

Automatic resettable overload protection and reverse polarity protection

LED indicators for power, link/activity, and fiber status

Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX/FX
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3x Flow Control
Forward & Filtering Rate:	14,880pps (10Mbps)
Forward & Filtering Rate:	148,800pps (100Mbps)
Packet Buffer Memory:	512K bits
Processing Type:	Store-and-Forward
Address Table Size:	1024 MAC Addresses
Interface
Connector:	8 x RJ45
Optical Port:	2 x 100Base-FX (SFP, SC, FC, ST Optional)
Ethernet Port	RJ45 Port 1 ~ Port 8
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	12~58VDC, Redundant Power (6-pin Terminal Block)
Power Consumption:	5W Max.
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
LED Indicators:
Power:	Power1, Power2 Status
Ethernet (Per Port):	Link/Activity
Fiber:	FX1, FX2

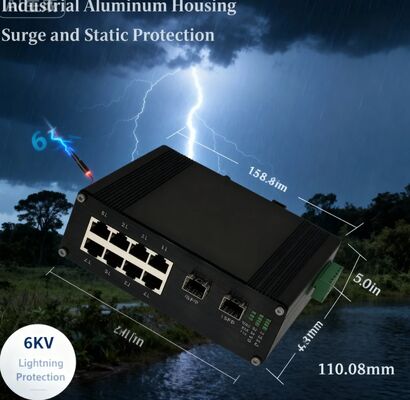

Dimensions (WxDxH):	150 x 115 x50 mm
Weight:	0.6Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)

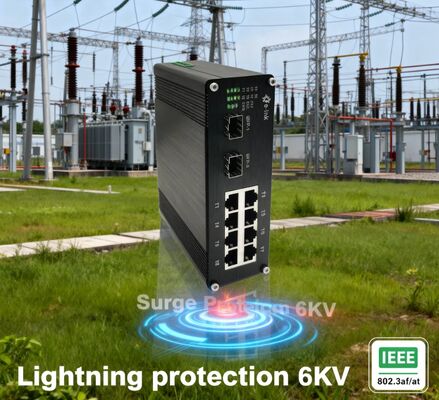

IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC208	Industrial Ethernet Switch: 8-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Multimode, Dual Fiber, SC, 2KM
LNK-IMC208-20	Industrial Ethernet Switch: 8-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Single Mode, Dual Fiber, SC, 20KM
LNK-IMC208S-20	Industrial Ethernet Switch: 8-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Single Mode, Single Fiber, SC, 20KM
LNK-IMC208F-20	Industrial Ethernet Switch: 8-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Single Mode, Single Fiber, FC, 20KM

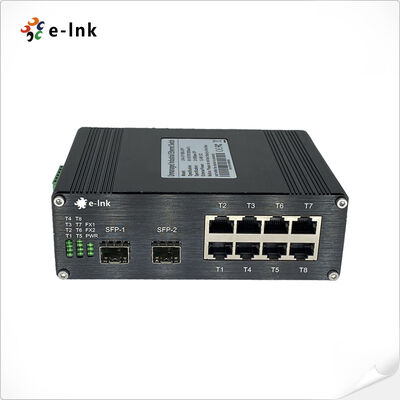

LNK-IMC208-SFP	Industrial 8-port 10/100BASE-T + 2-port 100BASE SFP Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.

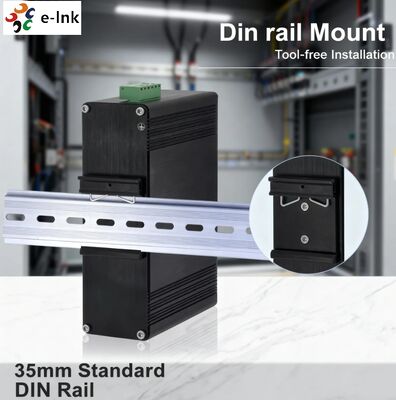

Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.
