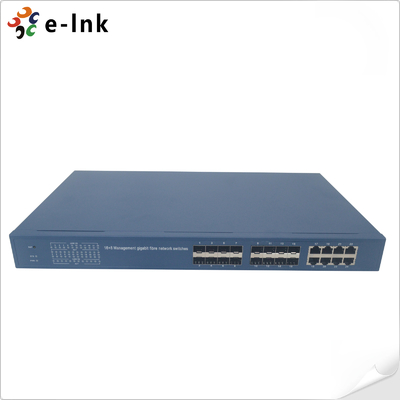

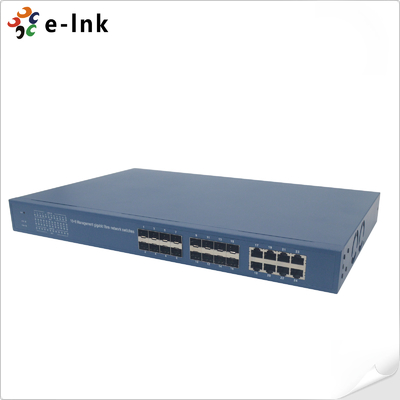

8G + 16SFP Management Gigabit Fiber Switch
8G + 16SFP Management Gigabit Fiber Switch Overview
The 16+8 Port Gigabit Managed Fiber Switch is a high-performance Layer 2/4 managed switch
designed for secure and reliable network operations. It combines 16x 1000M SFP fiber ports
with 8x 10/100/1000M RJ45 copper ports, delivering full wire-speed switching capacity
for maximum data throughput. The switch offers advanced network management through
an intuitive WEB interface and features robust security protections including built-in ARP
and DoS defense systems to prevent network attacks. Comprehensive management
features include QoS, Spanning Tree Protocol (STP), storm suppression, bandwidth control,
IGMP snooping, ACL, and DHCP snooping. This switch is ideally suited for small
and medium-sized enterprises, campus networks, and metropolitan area network
aggregation applications.
8G + 16SFP Management Gigabit Fiber Switch Features
►Supports 802.1x authentication to ensure secure user access control.
►Delivers wire-speed filtering with store-and-forward switching, providing a true non-blocking architecture.
►Offers advanced features such as port mirroring, port aggregation, and port rate limiting
for flexible management.
►Supports port-based VLANs and IEEE 802.1Q VLANs, enabling efficient network segmentation.
►Provides storm suppression, configurable for broadcast, multicast, and unknown unicast (DLF) traffic.
►Complies with IEEE 802.1d (STP), IEEE 802.1w (RSTP), and IEEE 802.1s (MSTP)
to ensure network reliability and loop prevention.
8G + 16SFP Management Gigabit Fiber Switch Technical Indexes
|
Product Type
|
16+8 Management gigabit fiber network switches
|
|
Support agreement
|
IEEE802.3, IEEE802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE802.1q, IEEE802.1p, IEEE802.1z, IEEE802.1d, IEEE802.1s, IEEE802.1w, IEEE802.1ax, IEEE802.1ak
|
|
Maximum frame length
|
9216B
|
|
Ports
|
16 1000M SFP optical ports and 8 10/100/1000M RJ45 ports
|
|
Network Media
|
1000Base-LX: using long wavelength laser (1310nm) over multimode and single mode fiber, multimode fiber the maximum distance is 550m, single mode 10-24km.
|
|
1000Base-SX: 62.5μm multimode fiber the maximum transmission distance of 275m, 50μm multimode fiber using the maximum transmission distance of 550 meters.
|
|
10Base-T: 3 classes or more than 3 kinds UTP; (maximum transmission distance of 200m), 14880P / S
|
|
100Base-TX: 5 Category UTP; (maximum transmission distance of 100m), 148800P / S
|
|
1000Base-T: CAT-5E UTP or Category 6 UTP; (maximum transmission distance of 100m), 1488000P / S
|
|
VLAN Address Table
|
4K
|
|
MAC address table
|
8K
|
|
Cache
|
32Mbits
|
|
Backplane bandwidth
|
52Gbit
|
|
Filtering and forwarding rate
|
10Mbps:14880pps
|
|
100Mbps:148800pps
|
|
1000Mbps:1488000pps
|
|
Dimensions
|
440x230x44mm(1U19-inch standard chassis)
|
|
Use of the environment
|
Operating Temperature: 0℃～40℃;
|
|
Humidity 10% ~ 90% non-condensing
|
|
Storage temperature: -20℃~70℃;
Storage Humidity 5% ~ 90% non-condensing
|
|
Power
|
Input :90-264VAC ,50-60HZ; output: 5V/12A
|
|
Power consumption
|
Power consumption: 60W
|
8G + 16SFP Management Gigabit Fiber Switch Ordering Information
|
 Item
|
Description
|
|
LNK-FS168
|
8G + 16SFP Management Gigabit Fiber Switch: 16 1000M SFP Ports + 8 10/100/1000M RJ45 Port
|
After-Sales and Warranty Policy
It is composed of online customer service and telephone customer service, providing product consultation,
remote technical support, maintenance and acceptance services.
Service Policy: Three-month replacement and three-year warranty.
Replacement: Within three months of purchasing a series of products, after testing the product failure
by technicians and man-made damage caused by non-natural disasters, the purchaser can directly
go to the purchasing point to replace the same type of products.Or a product of comparable performance.
If there is no trouble in product testing, the original sample will be returned.
Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.
[The following circumstances do not fall within the scope of replacement and free maintenance]
1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
