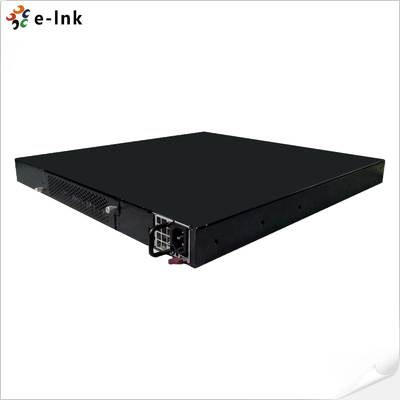

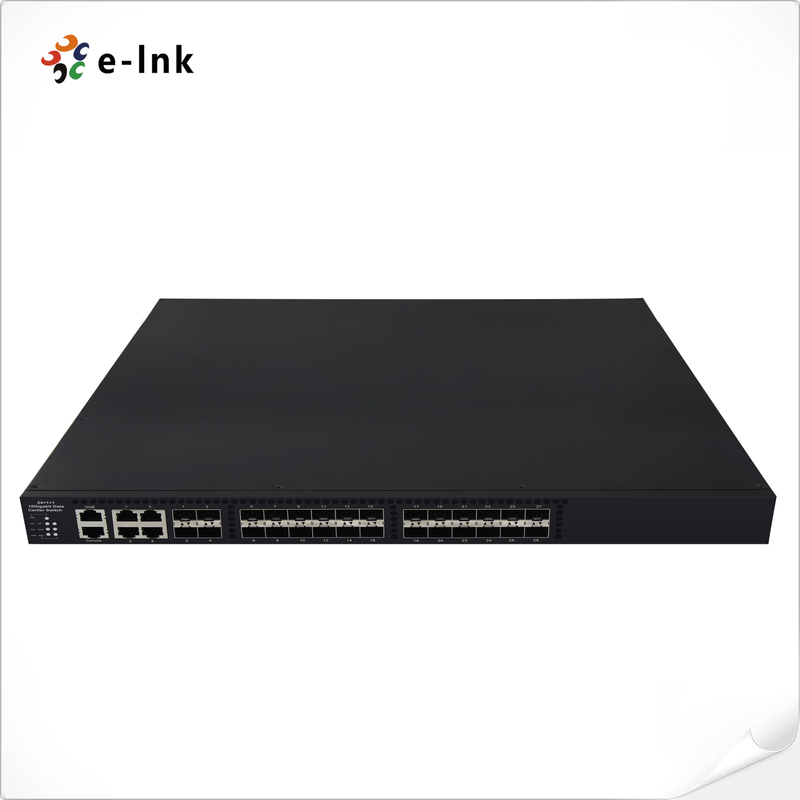

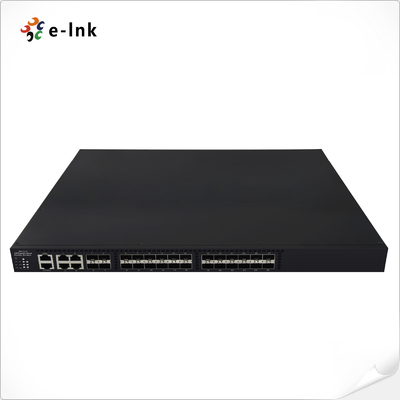

24 10Gbps SFP+ ports + 4 10/100/1000Mbps TP/SFP combo ports Managed Ethernet Fiber Switch
Gigabit Managed Ethernet Fiber Switch Overview
The LNK-XS2404 Series represents a high-performance 10Gb Data Center Switch designed for next-generation
network infrastructure. Featuring exceptional switching capacity and advanced ACL functionality based on Layer 3
and Layer 4 protocols, this switch delivers enterprise-grade security and control. Its comprehensive security ecosystem
includes sophisticated safety control strategies and CPU protection policies that enhance fault tolerance while ensuring
network stability and optimal link load distribution. Utilizing a modular architecture, the LNK-XS2404 Series enables
flexible deployment in metropolitan area networks (MAN) and provides last-1km technological solutions for data
aggregation and core exchange applications. With high backplane bandwidth, ultra-low latency, and simplified
network management capabilities, this switch offers customizable 10G port configuration to meet specific
bandwidth requirements. Ideal for high-density data centers, cloud computing access networks,
large-scale internet cafes, enterprise network cores, and metropolitan area network aggregation.
Gigabit Managed Ethernet Fiber Switch Features
►High-Performance 1U TOR Switch with 490Gbps backplane bandwidth
►Wire-Speed L2/L3 Forwarding with hardware-based Layer 3 routing at 364.56Mpps
►24×10G SFP+ Ports for high-density 10G server access
►4×1G Combo Ports for additional flexibility—unique among high-density 10G switches
►Flexible Network Capacity to adapt to varying deployment needs
Gigabit Managed Ethernet Fiber Switch Technical Indexes
|
Product Model
|
LNK-XS2404 Series (24+4+1+1 10Gigabit Data Center Switch)
|
|
Basic Feature
|
|
Fixed port
|
24 10Gbps SFP+ ports + 4 10/100/1000Mbps TP/SFP combo ports
|
|
Console port
|
1
|
|
OOB management port
|
1
|
|
Backplane bandwidth
|
490Gbps
|
|
Packet forwarding rate
|
364.56Mpps
|
|
Jumbo frames
|
9216 bytes
|
|
Transfer mode
|
Support store-forward mode and cut-through mode
|
|
IPv4/IPv6 route
|
6k/8k
|
|
MAC address table
|
128K
|
|
Packet Buffer
|
9MB
|
|
VLAN ID
|
4K
|
|
Flash
|
32MB
|
|
Memory
|
1GB DDR3 SDRAM
|
|
CPU
|
PPC Dual-core 800MHz
|
|
Soft Specification
|
|
security feature
|
IP+MAC+PORT+VLAN binding
ARP inspection
DoS defend
port protect
IP Source Guard binding
|
|
VLAN
|
Port based VLAN
802.1Q VLAN
IP based VLAN
MAC based VLAN
|
|
MAC address table
|
static MAC address table
dynamic MAC address table
|
|
Storm Control
|
Broadcast Limit
Multicast Limit
DLF Limit
Limit Speed
|
|
 Traffic Control
|
Half-duplex control based on the back pressure type
Full-duplex control based on the PAUSE frame
|
|
Port Mirror
|
Support port mirror
|
|
Port management
|
system info
port Statistics
config port
port trunk
port-isolate
|
|
QoS
|
IEEE 802.1Q Congestion mechanism
Each port has 8 send queue mapping to 8 802.1p priority
|
|
IP services
|
Ping dectection
DHCP Snooping
|
|
Spanning Tree Protocol
|
MSTP(802.1s), STP, RSTP
|
|
Multicast management
|
IGMP Snooping frame
|
|
System management
|
Support SNMP v1/v2/v3
Support Console
Support TELNET
Support WEB
|
|
Remote Upgrade
|
Web host
|
|
Physical Characteristics
|
|
External Dimension
|
438.48mm*473mm*43.4mm
|
|
Power Supply Features
|
AC:90V～290V
|
DC:-38.4V～-72V
|
|
Power
|
≤230W
|
|
Indicator light
|
Power indicator, system, connection/sending and receiving instructions
|
|
Environment temperature/humidity
|
operating temperature:0°C～50°C(0m～1800m)storage temperature:-40°C～+70°C,relative humidity:5%RH～95%RH,Non-condensing
|
|
Authentication
|
ROHS authentication
European Community (CE) Electromagnetic Compatibility Directive:
This equipment has been tested and found to comply with the protection requirements of European Emission Standard
EN55022/EN60555-2 and the Generic European Immunity Standard EN50082-1.
EMC:
EN55022(1988)/CISPR-22(1985),class A EN60555-2(1995),class A
EN60555-3
IEC1000-4-2(1995),4K V CD, 8KV, AD
IEC1000-4-3(1995),3V/m
IEC1000-4-4(1995),1KV – (power line), 0.5KV – (signal line)
Federal Communications Commission (FCC) statement:This equipment has been tested and found to comply with the limits for a class A computing
device pursuant to Subpart J of part 15 of FCC Rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment
|
Gigabit Managed Ethernet Fiber Switch Ordering Information
|
Item
|
Description
|
|
LNK-XS2404
|
24 10Gbps SFP+ ports + 4 10/100/1000Mbps TP/SFP combo ports Managed Ethernet Fiber Switch
|
After-Sales and Warranty Policy
It is composed of online customer service and telephone customer service, providing product consultation,
remote technical support, maintenance and acceptance services.
Service Policy: Three-month replacement and three-year warranty.
Replacement: Within three months of purchasing a series of products, after testing the product failure
by technicians and man-made damage caused by non-natural disasters, the purchaser can directly
go to the purchasing point to replace the same type of products.Or a product of comparable performance.
If there is no trouble in product testing, the original sample will be returned.
Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.
[The following circumstances do not fall within the scope of replacement and free maintenance]
1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
