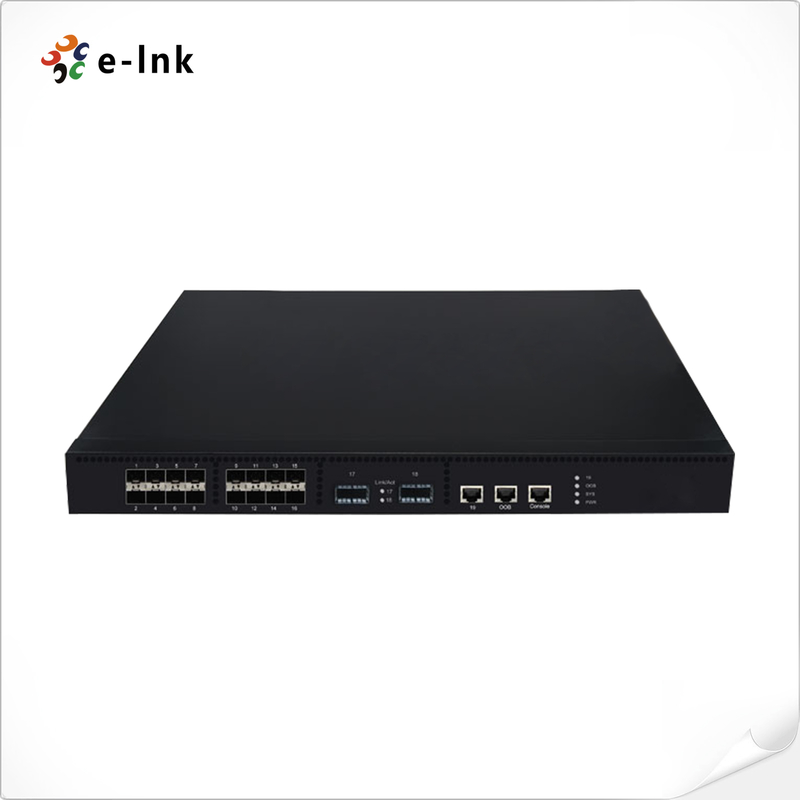

L3 Managed 16-Port 10G SFP + 2-Port 40G QSFP+ Fiber Switch
L3 Managed Ethernet Fiber Switch Overview
The LNKFS1602 Series is at the forefront of 10 Gigabit data centre switching technology,
offering unparalleled performance in a compact 1U Top of Rack (TOR) form factor.
With its cutting-edge architecture, this switch provides exceptional switching capacity of 484 Gbps
and a forwarding rate of 360.092 MBps, ensuring complete L2/L3 wire-speed forwarding.
Its innovative modular design features 16 10G SFP+ optical ports and two 40G QSFP+ uplink ports,
as well as a console port, a 10/100/1000M RJ45 management port and an OOB management port,
providing comprehensive network control. Designed for next-generation, high-density data centres
and cloud computing environments, the LNKFS1602 enables the seamless aggregation
and exchange of data with ultra-low latency and unmatched reliability. Its superior bandwidth capacity a
nd intelligent traffic management make it ideal for enterprise network cores, metropolitan area networks,
large-scale internet cafés and critical infrastructure aggregation points, setting new standards
for network performance and flexibility.
L3 Managed Ethernet Fiber Switch Features
High-Density 10G Access
484Gbps backplane capacity, industry-leading 1U TOR performance
Wire-speed Layer 2/3 forwarding at 360.092Mpps
16×10G SFP+ ports and 2×40G QSFP+ ports for high-density server access
Easy Maintenance
Managed via Web, SNMP, Telnet
Supports TFTP/ZMODEM software and BootRom upgrades
SFP+ with backward compatibility to XFP
Flexible port configuration
Efficient Traffic Management
Broadcast storm detection and IGMP packet control
Rate limiting with 1M step granularity
Secure and Reliable
Protection against DoS/DDoS, spoofing, and viruses
IEEE 802.1x port-based authentication and policy control
Port host limits, Ethernet interface binding for bandwidth and redundancy
L3 Managed Ethernet Fiber Switch Technical Indexes
|
Product Model
|
LNK-FS1602HC
|
|
Fixed Port
|
16x10G SFP+ optical ports, 2x40G QSFP+ port, 1xConsole port, 1x10/100/1000M RJ45 electrical port, 1xOOB port
|
|
Console Port
|
1
|
|
Backplane bandwidth
|
484Gbps
|
|
Packet forwarding rate
|
360.092Mpps
|
|
Jumbo Frames
|
12k bytes
|
|
Transfer Mode
|
Support store-forward mode and cut-through mode
|
|
IPv4/IPv6 Route
|
512/256
|
|
Packet Buffer
|
4MB
|
|
VLAN ID
|
4K
|
|
Flash Memory Capacity
|
32M
|
|
Memory capacity
|
256MB
|
|
CPU
|
Single-Core 32-bit 600MHz MIPS
|
|
Software Specification
|
|
System configuration
|
Systerm setting
|
View software version, CPU utilization, memory utilization
|
|
Network settings
|
Configure device management address
|
|
User configuration
|
Configure user name and password
|
|
Log configuration
|
View and download logs
|
|
TELNET configuration
|
TELNET services enable, disable
|
|
HTTPS configuration
|
HTTP/HTTPS enabled, disabled
|
|
Diagnostic test
|
PING,TRACEROUTE
|
|
Port configuration
|
Physical port
|
Configure port rate, flow control mode, maximum frame length
|
|
Storm suppression
|
Configure broadcast, unknown multicast, unknown unicast rate
|
|
line rate
|
Configuration entry, exit rate, burst rate
|
|
Port Mirror
|
Supports up to 4 groups of images
|
|
Link aggregation
|
Supports up to 16 sets of static LACP, support dynamic LACP
|
|
Port isolation
|
Supports up to 8 groups of Uplink, Downlink isolation
|
|
Port Statistics
|
|
|
Two-layer configuration
|
VLAN configuration
|
Port mode, PVID, tag/untag list configuration, VLAN create
|
|
mac-vlan
|
|
|
protocol-vlan
|
Support based on ETHERII, SNAP, LLC frame type VLAN
|
|
voice-vlan
|
|
|
MAC configuration
|
Static MAC configuration, dynamic MAC query
|
|
MSTP configuration
|
Support STP, RSTP, MSTP (802.1s) three protocols
|
|
IGMP-snooping
|
Static multicast configuration
|
|
DHCP-snooping
|
Support static binding, ARP dynamic detection, IP source address check
|
|
ERPS-Ring configuration
|
|
|
GMRP configuration
|
|
|
Cyber security
|
Access control
|
Set the access rules for this device
|
|
Anti-attack settings
|
PING message discard, DOS attack, CPU receive packet rate setting
|
|
ACL settings
|
Based on MAC and IP ACL configuration, you can configure the ACL to take effect
|
|
Advanced configuration
|
QOS settings
|
Support SP, WRR, DRR scheduling configuration;
8 send queues per port mapping 802.1p 8 priority;
Support DSCP queue mapping;
|
|
LLDP settings
|
|
|
SNMP settings
|
Support SNMP v1, v2c, v3 version
|
|
System maintenance
|
Configuration file management
|
Configuration file view, upload, download
|
|
Save the configuration
|
|
|
Reboot the device
|
|
|
Reset
|
|
|
Online upgrade
|
|
|
Physical characteristics
|
|
Dimension (LxWxH)
|
440mm *285mm * 44mm
|
|
Power supply characteristics
|
AC:90V～290V
|
|
Power
|
≤110W
|
|
Indicator light
|
Power indication, system indication, connection / send and receive instructions
|
|
Ambient temperature / humidity
|
Operating temperature: 0 ° C ~ 50 ° C (0m ~ 1800m) Storage temperature: -40 ° C ~ +70 ° C, relative humidity: 5% RH ~ 95% RH, non-condensing
|
L3 Managed Ethernet Fiber Switch Quality Assurance and Certificate
|
Warranty
|
3 Year
|
|
Certificates
|
ROHS
|
|
European Community (CE) Electromagnetic Compatibility Directive:This equipment has been tested and found to comply with the protection requirements of European Emission Standard EN55022/EN60555-2 and the Generic European Immunity Standard EN50082-1.
EMC:
EN55022(1988)/CISPR-22(1985),class A EN60555-2(1995),class A
EN60555-3
IEC1000-4-2(1995),4K V CD, 8KV, AD
IEC1000-4-3(1995),3V/m
IEC1000-4-4(1995),1KV – (power line), 0.5KV – (signal line)
|
|
Federal Communications Commission (FCC) :This equipment has been tested and found to comply with the limits for a class A computing device pursuant to Subpart J of part 15 of FCC Rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment.
|
L3 Managed Ethernet Fiber Switch Ordering Information
|
Model
|
Description
|
|
|
LNK-FS1602HC
|
L3 Managed Switch: 16x10G SFP+ optical ports, 2x40G QSFP+ port, 1xConsole port, 1x10/100/1000M RJ45 electrical port, 1xOOB port
|
After-Sales and Warranty Policy
It is composed of online customer service and telephone customer service, providing product consultation,
remote technical support, maintenance and acceptance services.
Service Policy: Three-month replacement and three-year warranty.
Replacement: Within three months of purchasing a series of products, after testing the product failure
by technicians and man-made damage caused by non-natural disasters, the purchaser can directly
go to the purchasing point to replace the same type of products.Or a product of comparable performance.
If there is no trouble in product testing, the original sample will be returned.
Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.
[The following circumstances do not fall within the scope of replacement and free maintenance]
1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
