Industrial 4-Port 10/100T + 2-Port 100FX Ethernet Switch Redundant Power
Overview

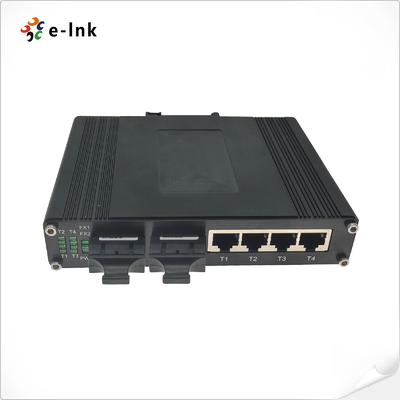

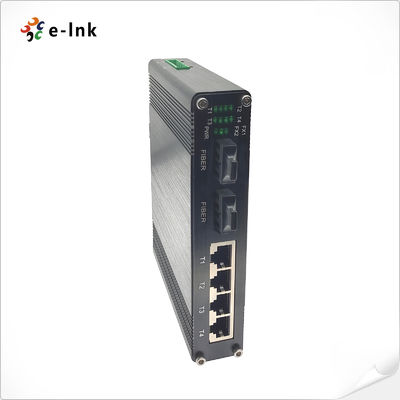

The LNK-IMC204 is a hardened 4-Port 10/100Base-T + 2-Port 100Base-FX industrial
Ethernet switch, providing reliable data transmission in harsh environments. Each RJ45 port
supports Full/Half duplex, Auto MDI/MDIX, while the fiber ports support single-mode or
multi-mode SFP, SC, FC, or ST modules. With redundant DC power inputs, DIN-Rail and
wall-mount options, and a wide -40°C to 80°C operating range, this switch is ideal for IP
cameras, wireless access points, and industrial automation networks across remote
locations.
Features
4× 10/100Base-T RJ45 ports with auto MDI/MDIX, full/half-duplex support
2× 100Base-FX fiber ports (SFP/SC/FC/ST optional)
Supports IEEE802.3x Flow Control and Energy Efficient Ethernet (EEE)
Redundant 12~58VDC power inputs with overload and reverse polarity protection
DIN-Rail or wall-mount installation
Wide operating temperature: -40°C ~ 80°C
MTBF > 200,000 hours for long-term reliability
Store-and-forward switching with 512K packet buffer and 1024 MAC addresses
Compact metal housing for industrial durability
LED indicators for power, Ethernet link/activity, and fiber status
Certified EMC & safety compliance (EN55022, EN55024, IEC 61000-4 series)
Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.1 10Base-T, IEEE802.3u 100Base-TX
|
|
IEEE802.3 100Base-FX
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE)
|
|
IEEE802.3X Flow Control
|
|
Forward & Filtering Rate:
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
Packet Buffer Memory:
|
512K bits
|
|
Processing Type:
|
Store-and-Forward
|
|
Address Table Size:
|
1024 MAC Addresses
|
|
Interface
|
|
Connector:
|
4 x RJ45
|
|
Optical Port:
|
2 x 100Base-X (SFP, SC, FC, ST Optional)
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 80°C (-40°F to 176°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Electrical and Mechanical
|
|
Input Power:
|
12~58VDC, Redundant Power (6-pin Terminal Block)
|
|
Power Consumption:
|
5W Max.
|
|
Protection:
|
|
Power Input Overload:
|
Automatic Resettable
|
|
Reverse Polarity:
|
Present
|
|
LED Indicators:
|
|
Power:
|
Power1, Power2 Status
|
|
Ethernet (Per Port):
|
Link/Activity
|
|
Fiber Port:
|
FX1, FX2
|
|
Dimensions (WxDxH):
|
150 x 115 x 30 mm
|
|
Weight:
|
0.5Kg
|
|
Casing:
|
Metal Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
Regulatory Approvals
|
|
ISO9001
|
|
EN55022:2010+AC: 2011, Class A
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009
|
|
EN 61000-3-3: 2013
|
|
EN55024:2010
|
|
IEC 61000-4-2: 2008 (ESD)
|
|
IEC 61000-4-3: 2010 (RS)
|
|
IEC 61000-4-4: 2012 (EFT)
|
|
IEC 61000-4-5: 2014 (Surge)
|
|
IEC 61000-4-6: 2013 (CS)
|
|
IEC 61000-4-8: 2009 (PFMF)
|
Ordering Information
|
Model
|
Description
|
|
LNK-IMC204
|
Industrial Ethernet Switch: 4-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Multimode, Dual Fiber, SC, 2KM
|
|
LNK-IMC204-20
|
Industrial Ethernet Switch: 4-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Single Mode, Dual Fiber, SC, 20KM
|
|
LNK-IMC204S-20
|
Industrial Ethernet Switch: 4-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Single Mode, Single Fiber, SC, 20KM
|
|
LNK-IMC204F-20
|
Industrial Ethernet Switch: 4-Port 10/100Base-TX + 2-port 100BASE-FX Fiber, Single Mode, Single Fiber, FC, 20KM
|
|
LNK-IMC204-SFP
|
Industrial 4-port 10/100BASE-T + 1-port 100BASE SFP Ethernet Switch
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
|
Power Options
|
► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
|
|
► Power Supply is to be purchased separately.
|

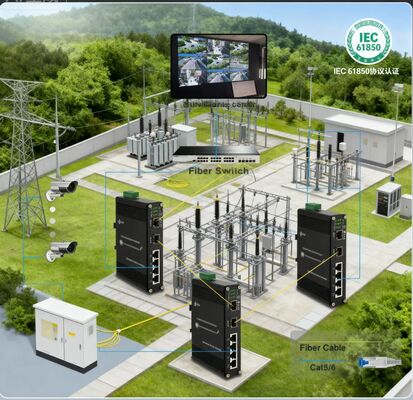

Application
