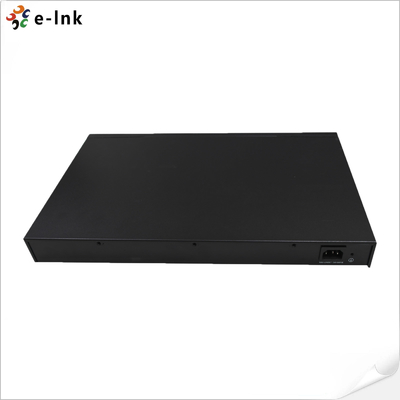

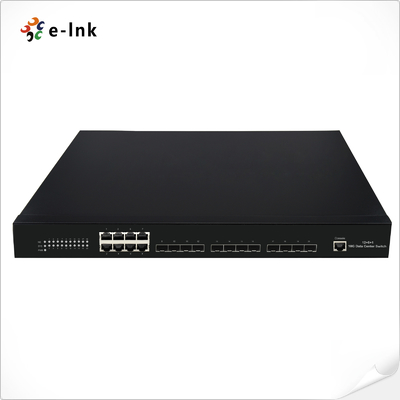

12 10G SFP+ Fiber ports + 8 10/100/1000M Copper RJ45 ports Managed Ethernet Fiber Switch
Managed Ethernet Fiber Switch Overview
The LNK-XS1208 Series is a high-performance 10 Gigabit data centre switch designed for next-generation
network infrastructure. With a Broadcom chipset and non-blocking Layer 2 architecture, it delivers
an exceptional switching capacity of 258 Gbps and a forwarding rate of 192 Mbps, ensuring full wire-speed
L2/L3 forwarding. The switch's modular design provides flexible connectivity, offering abundant bandwidth
for data aggregation and exchange with 12 × 10G SFP+ fibre ports, 8 × 10/100/1000M RJ45 ports,
1 × console port and 1 × OOB management port. Advanced load balancing and intelligent
traffic management maintain optimal network stability and efficiency. Ideal for high-density data centres,
cloud computing networks, large-scale enterprise cores, metropolitan area networks (MANs)
and internet café backbones, the LNK-XS1208 ensures high bandwidth, ultra-low latency
and reliable performance in demanding networking environments.
Managed Ethernet Fiber Switch Features
►Supports up to 8 SFP Fiber Ports and 1 GE Combo Port (SFP fiber/RJ45 interchangeable)
►High-Performance Switching with 258Gbps backplane bandwidth, delivering industry-leading 1U TOR performance
►Hot-Swappable SFP Modules for flexible upgrades and maintenance
►Hardware-Based Routing with wire-speed packet forwarding up to 192Mpps, supporting full-speed L2/L3 switching
►Optimized for Metropolitan Area Networks (MANs) with support for multiple last-kilometer access technologies
►Advanced Security Protection including defense against DoS, DDoS, spoofing, and virus attacks
►Comprehensive Access Control with IEEE 802.1x support, port-based user authentication,
network shielding, safety control, and policy enforcement
Managed Ethernet Fiber Switch Technical Indexes
|
Product model
|
LNK-XS1208 Series (12+8+1 10Gigabit Data Center Switch)
|
|
Basic Characteristics
|
|
Fixed port
|
12 10G SFP+ optical ports + 8 10/100/1000M RJ45 copper ports
|
|
Console port
|
1
|
|
Backplane bandwidth
|
258Gbps
|
|
Packet forwarding rate
|
192Mpps
|
|
Jumbo frames
|
12k bytes
|
|
Transfer mode
|
Support store-forward mode and cut-through mode
|
|
IPv4/IPv6 route
|
512/256
|
|
MAC address table
|
16K
|
|
Packet Buffer
|
2MB
|
|
VLAN ID
|
4K
|
|
Memory capacity
|
512MB DDR3 SDRAM
|
|
Flash memory capacity
|
8MB
|
|
CPU
|
600 MHz ARM Cortex-A9 single-core processor
|
|
Soft Specification
|
|
Security feature
|
IP+MAC+PORT+VLAN binding
ARP inspection
DOS defend
Port protect
IP Source Guard binding
|
|
VLAN
|
Port based VLAN
802.1Q VLAN
IP based VLAN
MAC based VLAN
|
|
 MAC address table
|
Static MAC address table
Dynamic MAC address table
|
|
Storm Control
|
Broadcast suppression
Multicast suppression
DLF suppression
Limiting rate
|
|
Traffic Control
|
Half-duplex control based on the back pressure type
Full-duplex control based on the PAUSE frame
|
|
Port Mirror
|
Support port mirror
|
|
Port management
|
General setting
Port counting
Config port
Port trunk
Port-isolation
|
|
QoS
|
IEEE 802.1Q Congestion mechanism
Each port has 8 send queue mapping to 8 802.1p priority
|
|
IP services
|
Ping detection
DHCP Snooping
|
|
Spanning Tree Protocol
|
MSTP(802.1s), STP, RSTP
|
|
Multicast management
|
IGMP Snooping frame
|
|
System management
|
Support SNMP v1/v2
Support Console
Support TELNET
Support WEB
|
|
Remote Upgrade
|
Support version upgrading via web Support version upgrading via local
|
|
Physical Characteristics
|
|
External Dimension
|
440mm*285mm*44mm
|
|
Power Supply Features
|
AC: 110V～260V
|
|
Power
|
≤100W
|
|
Indicator light
|
Power indicator, system, connection/sending and receiving instructions
|
|
Environment temperature/humidity
|
Operating temperature: 0°C～50°C (0m～1800m) ;
Storage temperature: -40°C～+70°C;
Relative humidity: 5%RH～95%RH, Non-condensing.
|
Managed Ethernet Fiber Switch Ordering Information
|
Item
|
Description
|
|
LNK-XS1208
|
12 10G SFP+ Fiber ports + 8 10/100/1000M Copper RJ45 ports Managed Ethernet Fiber Switch
|
