Industrial 8-Port Gigabit 802.3bt PoE++ Switch + 1 Fiber Uplink 100W/Port
Overview

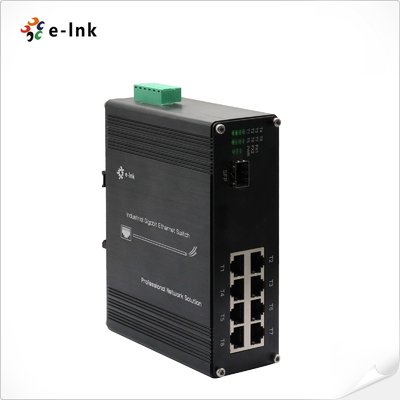

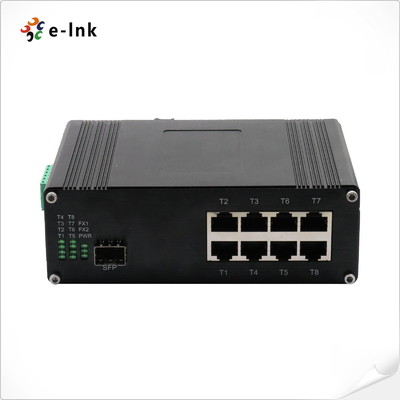

The LNK-IMC108GP100 is a hardened 8-Port Gigabit PoE++ + 1-Port 100/1000Base-X
industrial Ethernet switch that delivers both high-power PoE++ (up to 100W per port) and
stable data connectivity. With a total PoE power budget of 360W, redundant 48~57VDC
power inputs, and a rugged aluminum housing supporting DIN-Rail installation, this switch
is ideal for powering and connecting PTZ IP cameras, high-power wireless APs, industrial
IoT devices, and other mission-critical equipment in harsh environments.
Features
8× Gigabit RJ45 PoE++ ports (IEEE802.3af/at/bt, 100W max per port, 360W total)
1× 100/1000Base-X fiber uplink (SFP/SC/FC/ST optional)
Auto MDI/MDIX, Auto-negotiation, Full/Half-duplex support
Supports 9K Jumbo Frames for efficient large data transmission
Redundant 48~57VDC power inputs with overload & reverse polarity protection
Wide operating temperature: -40°C ~ 80°C, MTBF >200,000 hrs
Low power consumption: ≤5W (PoE not in use)
Store-and-forward switching with 2.75M buffer & 4K MAC table
Industrial-grade aluminum case, DIN-Rail mounting
Energy Efficient Ethernet (EEE) & IEEE 802.3x Flow Control
Certified EMC & Safety compliance (EN55022, EN55024, IEC 61000-4 series)
Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.3 10BASE-T
|
|
IEEE802.3u 100BASE-TX/FX
|
|
IEEE802.3ab 1000BASE-T
|
|
IEEE802.3z 1000BASE-X
|
|
IEEE802.3x Flow Control
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE)
|
|
IEEE802.3af Power over Ethernet
|
|
IEEE802.3at Power over Ethernet
|
|
Forward & Filtering Rate:
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
1,488,000pps (1000Mbps)
|
|
Packet Buffer Memory:
|
2.75M bits
|
|
Processing Type:
|
Store-and-Forward
|
|
Max Packet Length:
|
9K Bytes Jumbo Frame
|
|
Address Table Size:
|
4K MAC Addresses
|
|
Interface
|
|
Connector:
|
8 x RJ45
|
|
Optical Port:
|
1 x 100/1000Base-X (SFP, SC, FC, ST Optional)
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 80°C (-40°F to 176°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Electrical and Mechanical
|
|
Input Power:
|
48~57VDC, Redundant Power (6-pin Terminal Block)
|
|
Power Consumption:
|
360W Max. (PoE in use)
|
|
5W Max. (PoE not in use)
|
|
Standard:
|
IEEE802.3af/at/bt
|
|
PoE:
|
|
Port:
|
RJ45 Port 1 ~ Port 8
|
|
Max. Power per Port:
|
100W Max per port
|
|
Power Pin Assignment
|
1/2(+), 3/6(-) or 4/5(+), 7/8(-)
|
|
Protection:
|
|
Power Input Overload:
|
Automatic Resettable
|
|
Reverse Polarity:
|
Present
|
|
LED Indicators:
|
|
Power:
|
Power1, Power2 Status
|
|
PoE:
|
Per Port Status
|
|
Ethernet (Per Port):
|
Link/Activity
|
|
Fiber:
|
FX1
|
|
Dimensions (WxDxH):
|
150 x 115 x 50 mm
|
|
Weight:
|
0.6Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail mount
|
|
Regulatory Approvals
|
|
ISO9001
|
|
EN55022:2010+AC: 2011, Class A
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009
|
|
EN 61000-3-3: 2013
|
|
EN55024:2010
|
|
IEC 61000-4-2: 2008 (ESD)
|
|
IEC 61000-4-3: 2010 (RS)
|
|
IEC 61000-4-4: 2012 (EFT)
|
|
IEC 61000-4-5: 2014 (Surge)
|
|
IEC 61000-4-6: 2013 (CS)
|
|
IEC 61000-4-8: 2009 (PFMF)
|
Ordering Information
|
Model
|
Description
|
|
LNK-IMC108GP100
|
Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE++) + 1-Port 100/1000Base-X Fiber, Multimode, Dual Fiber, SC, 550m
|
|
LNK-IMC108GP100-20
|
Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE++) + 1-Port 100/1000Base-X Fiber, Single Mode, Dual Fiber, SC, 20KM
|
|
LNK-IMC108GPS100-20
|
Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE++) + 1-Port 100/1000Base-X Fiber, Single Mode, Single Fiber, SC, 20KM
|
|
LNK-IMC108GPF100-20
|
Industrial Ethernet Switch: 8-Port 10/100/1000Base-TX (8-port PoE++) + 1-Port 100/1000Base-X Fiber, Single Mode, Single Fiber, FC, 20KM
|
|
LNK-IMC108GP100-SFP
|
Industrial 8-port 10/100/1000BASE-T (8-port PoE++) + 1-port 100/1000BASE SFP Ethernet Switch
|
|
SFP Options
|
► SFP option. Please select your SFP on our SFP Options Page
|
|
► SFP module is to be purchased separately.
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed.
|
|
Power Options
|
► 480W/10A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
|
|
► Power Supply is to be purchased separately.
|
