Industrial 8-Port 10/100TX + 1-Port 100FX Hardened Ethernet Switch -40~80°C DIN-Rail

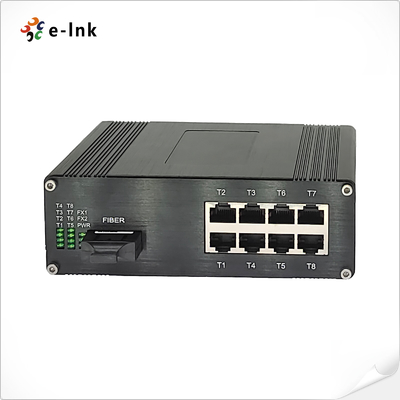

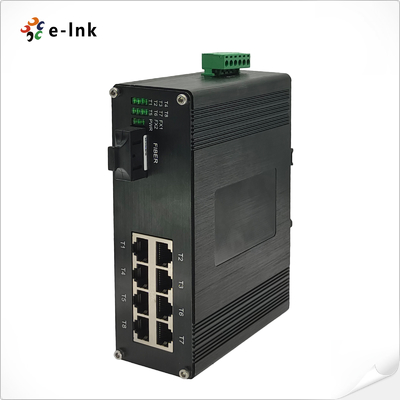

Large Image : Industrial 8-Port 10/100TX + 1-Port 100FX Hardened Ethernet Switch -40~80°C DIN-Rail

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, RoHS, FCC, ISO9001
Model Number:	LNK-IMC108

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$70-$99
Packaging Details:	Fiber Optic Switch Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	T/T,Western Union,MoneyGram,paypal,Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Ethernet Ports:	8 × 10/100Base-TX (RJ45)	Fiber Port:	1 × 100Base-FX (SFP/SC/FC/ST Optional)
Processing Type:	Store-and-Forward	Power Input:	12~58VDC Redundant (6-pin Terminal Block)
Operating Temp:	-40°C ~ 80°C	Dimensions:	150 × 115 × 50 Mm

Industrial 8-Port 10/100TX + 1-Port 100FX Hardened Ethernet Switch -40~80°C DIN-Rail

Overview

The LNK-IMC108 is a rugged industrial Ethernet switch featuring 8×10/100Base-TX RJ45 ports and 1×100Base-FX fiber port (SFP/SC/FC/ST optional). Designed for reliable operation in harsh environments, it supports redundant 12~58VDC power inputs, -40°C to 80°C wide temperature tolerance, and robust EMC protection. With compact metal housing, wall-mount and DIN-Rail installation, this switch is ideal for IP surveillance, wireless access points, and remote industrial networking applications.

Features

8×10/100Mbps RJ45 + 1×100Base-FX fiber port (SFP/SC/FC/ST optional)

Auto MDI/MDI-X, Auto-negotiation, Full/Half-duplex support

Redundant 12~58VDC power input with overload and reverse polarity protection

Wide operating temperature: -40°C to 80°C, MTBF >200,000 hrs

Low power consumption: max. 5W

Store-and-forward switching with 512K buffer & 1024 MAC table

Energy Efficient Ethernet (EEE) & IEEE 802.3x flow control

Industrial-grade metal casing, supports DIN-Rail & wall-mount installation

EMC & Safety compliance: EN55022, EN55024, IEC 61000-4 standards

Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX/FX
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3x Flow Control
Forward & Filtering Rate:	14,880pps (10Mbps)
Forward & Filtering Rate:	148,800pps (100Mbps)
Packet Buffer Memory:	512K bits
Processing Type:	Store-and-Forward
Address Table Size:	1024 MAC Addresses
Interface
Connector:	8 x RJ45
Optical Port:	1 x 100Base-FX (SFP, SC, FC, ST Optional)
Ethernet Port	RJ45 Port 1 ~ Port 8
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	12~58VDC , Redundant Power (6-pin Terminal Block)
Power Consumption:	5W Max.
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
LED Indicators:
Power:	Power1, Power2 Status
Ethernet (Per Port):	Link/Activity
Fiber:	FX1
Dimensions (WxDxH):	150 x 115 x 50 mm
Weight:	0.6Kg
Casing:	Metal Case
Mounting Options:	DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC108	Industrial Ethernet Switch: 8-Port 10/100Base-TX + 1-Port 100Base-FX Fiber, Multimode, Dual Fiber, SC, 2KM
LNK-IMC108-20	Industrial Ethernet Switch: 8-Port 10/100Base-TX + 1-Port 100Base-FX Fiber, Single Mode, Dual Fiber, SC, 20KM
LNK-IMC108S-20	Industrial Ethernet Switch: 8-Port 10/100Base-TX + 1-Port 100Base-FX Fiber, Single Mode, Single Fiber, SC, 20KM
LNK-IMC108F-20	Industrial Ethernet Switch: 8-Port 10/100Base-TX + 1-Port 100Base-FX Fiber, Single Mode, Single Fiber, FC, 20KM
LNK-IMC108-SFP	Industrial 8-port 10/100BASE-T + 1-port 100BASE SFP Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 24W/1A 24VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.
