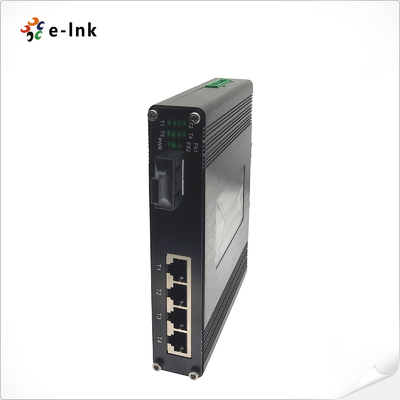

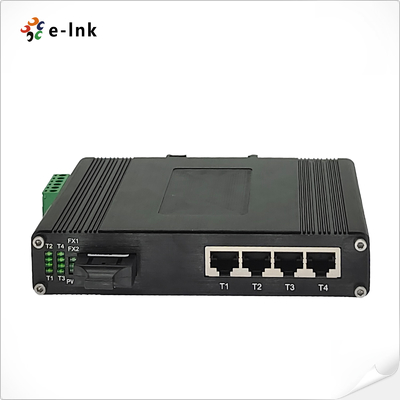

Industrial 4-Port Gigabit PoE++ Switch with 1-Port Fiber 100W per Port -40~80°C

Industrial 4-Port Gigabit PoE++ Switch with 1-Port Fiber 100W per Port -40~80°C
Industrial 4-Port Gigabit PoE++ Switch with 1-Port Fiber 100W per Port -40~80°C Industrial 4-Port Gigabit PoE++ Switch with 1-Port Fiber 100W per Port -40~80°C

Large Image :  Industrial 4-Port Gigabit PoE++ Switch with 1-Port Fiber 100W per Port -40~80°C

Product Details:
Place of Origin: China
Brand Name: E-link
Certification: CE, RoHS, FCC, ISO9001
Model Number: LNK-IMC104GP100
Document: 1E-link Communication & Net...og.pdf
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: $98-$122
Packaging Details: Industrial Ethernet PoE Switch Standard Export Package
Delivery Time: 5-12working days
Payment Terms: T/T,Western Union,MoneyGram,paypal,Credit Card
Supply Ability: 1000pcs/month
Detailed Product Description
Connector: 4 X RJ45 Optical Port: 1 X 100/1000Base-FX (SFP, SC, FC, ST Optional)
Operating Temperature: -40°C To 80°C (-40°F To 176°F) Input Power: 48~57VDC, Redundant Power (6-pin Terminal Block)
Dimensions: 150 X 115 X 30 Mm Weight: 0.5Kg

Industrial 4-Port Gigabit PoE++ Switch with 1-Port Fiber 100W per Port -40~80°C

Overview

The LNK-IMC104GP100 series is a hardened industrial Ethernet switch featuring 4 x

10/100/1000Base-T PoE++ ports and 1 x 100/1000Base-X fiber port. Each PoE++ port delivers

up to 100W to power high-demand devices such as IP cameras, wireless APs, and other

networked equipment. With a rugged metal enclosure, redundant power inputs, and DIN-rail

or wall-mount installation, it operates reliably in extreme conditions from -40°C to 80°C.

Ideal for integrating networks across remote or harsh industrial environments.

Features

4 x Gigabit RJ45 ports with IEEE 802.3bt PoE++ (up to 100W per port)

1 x 100/1000Base-X fiber port with SFP/SC/FC/ST options

Total PoE power budget up to 360W

Supports IEEE 802.3x flow control and 802.3az Energy Efficient Ethernet (EEE)

Wide operating temperature: -40°C to 80°C (-40°F to 176°F)

Redundant DC power input with overload and reverse polarity protection

DIN-rail and wall-mount installation for flexible deployment

MTBF > 200,000 hours for long-term reliability

Technical Indexes

Ethernet

Standards:

IEEE802.3 10BASE-T

IEEE802.3u 100BASE-TX/FX

IEEE802.3ab 1000BASE-T

IEEE802.3z 1000BASE-X

IEEE802.3x Flow Control

IEEE 802.3az Energy Efficient Ethernet (EEE)

IEEE802.3af Power over Ethernet

IEEE802.3at Power over Ethernet

Forward & Filtering Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer Memory:

1M bits

Processing Type:

Store-and-Forward

Max Packet Length:

9K Bytes

Address Table Size:

2048 MAC Addresses

Interface

Connector:

4 x RJ45

Optical Port:

1 x 100/1000Base-FX (SFP, SC, FC, ST Optional)

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Electrical and Mechanical

Input Power:

48~57VDC, Redundant Power (6-pin Terminal Block)

Power Consumption:

360W Max. (PoE in use)

5W Max. (PoE not in use)

Standard:

IEEE802.3af/at/bt

PoE:

Port:

RJ45 Port 1 ~ Port 4

Max. Power per Port:

100W Max per port

Power Pin Assignment

1/2(+), 3/6(-) or 4/5(+), 7/8(-)

Protection:

Power Input Overload:

Automatic Resettable

Reverse Polarity:

Present

LED Indicators:

Power:

Power1, Power2 Status

PoE:

Per Port Status

Ethernet (Per Port):

Link/Activity

SFP:

FX1

Dimensions (WxDxH):

150 x 115 x 30 mm

Weight:

0.5Kg

Casing:

Metal Case

Mounting Options:

DIN-Rail / Wall-mount

Regulatory Approvals

ISO9001

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024:2010

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model

Description

LNK-IMC104GP100

Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++)  + 1-Port 100/1000Base-X Fiber, Multimode, Dual Fiber, SC, 550m

LNK-IMC104GP100-20

Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++)  + 1-Port 100/1000Base-X Fiber, Single Mode, Dual Fiber, SC, 20KM

LNK-IMC104GPS100-20

Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++)  + 1-Port 100/1000Base-X Fiber, Single Mode, Single Fiber, SC, 20KM

LNK-IMC104GPF100-20

Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++) + 1-Port 100/1000Base-X Fiber, Single Mode, Single Fiber, FC, 20KM

LNK-IMC104GP100-SFP

Industrial Ethernet Switch: 4-Port 10/100/1000BASE-T (4-port PoE++) + 1-port 100/1000BASE SFP Ethernet Switch

SFP Options

► SFP option. Please select your SFP on our SFP Options Page

► SFP module is to be purchased separately.

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

480W/10A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.

► Power Supply is to be purchased separately.
