Industrial USB C Ethernet Adapter PoE Powered USB PD Charging

Multi Function PD Ethernet Switch with SFP port and Type-C output

Multi function PD Ethernet Switch Overview

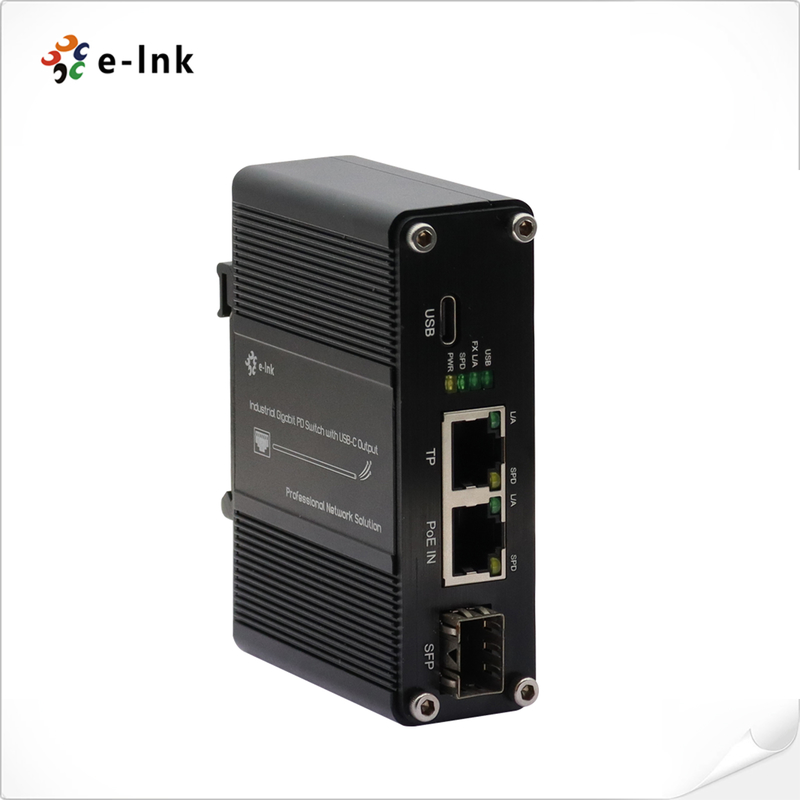

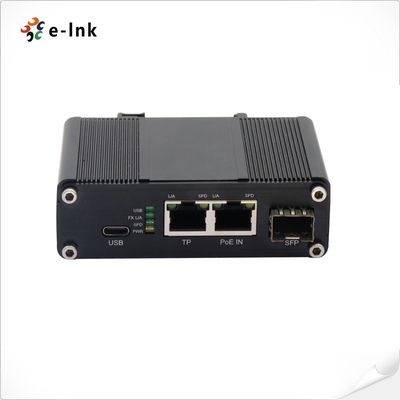

The LNK-GE-USB-PD is a versatile, industrial-grade hybrid interface Ethernet adaptor designed to connect modern USB-C devices to high-speed, reliable wired networks. Seamlessly bridging the gap between your laptop, tablet or smartphone and both copper (RJ45) and fibre optic (SFP) Ethernet networks, it is the perfect solution for challenging environments.

This unique adapter simplifies connectivity and power delivery in challenging environments. It can be powered remotely via Power over Ethernet (PoE), eliminating the need for a local power outlet. At the same time, its USB-C port supports the USB Power Delivery (PD) protocol, enabling you to charge your connected device at up to 60 W. Designed for industrial applications, its robust metal housing allows for DIN rail or wall mounting, offering maximum flexibility for use in control panels, telecommunications cabinets and field installations.

Multi function PD Ethernet Switch Features

►Supported Standards: USB 2.0/3.0, USB PD 2.0, USB PD 3.0 compatible, IEEE 802.3 (10Base-T / 100Base-TX / 1000Base-T), IEEE 802.3u (100Base-FX), ►IEEE 802.3z (1000Base-X), IEEE 802.3at/802.3bt

►1 × USB Type-C (USB 3.0) Port for high-speed data and power delivery

►1 × RJ45 Ethernet Port (10/100/1000Mbps) for general network connection

►1 × PoE PD RJ45 Port (10/100/1000Mbps) supporting IEEE 802.3at/bt PoE input

►1 × Fiber SFP Slot with auto-detection for 100Base-FX / 1000Base-X modules

►Flexible Installation: Supports both DIN-Rail and Wall-mount mounting options

►Operating Temperature: -20°C to 50°C, suitable for industrial environments

Multi function PD Ethernet Switch Technical Indexes

Multi function PD Ethernet Switch Ordering Information

Multi function PD Ethernet Switch Application
