Mini Industrial 4-Port Gigabit PoE+ Switch + 1-Port Gigabit Uplink 120W

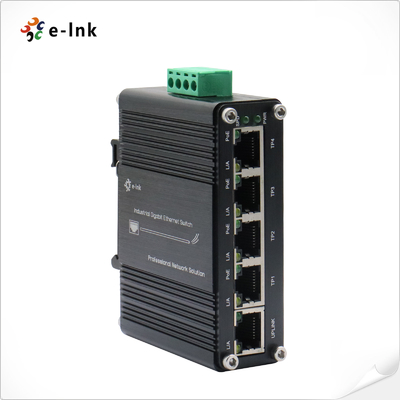

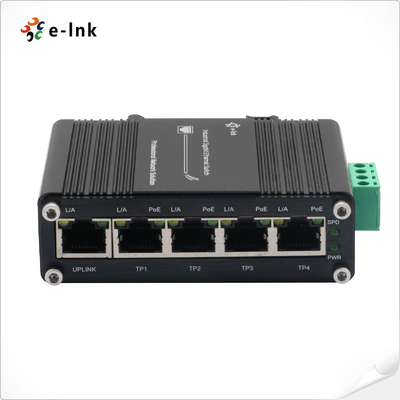

Large Image : Mini Industrial 4-Port Gigabit PoE+ Switch + 1-Port Gigabit Uplink 120W

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, RoHS, FCC, ISO9001
Model Number:	LNK-IMC005GP
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	negotiated
Packaging Details:	Industrial Ethernet PoE Switch Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	T/T,Western Union,MoneyGram,paypal
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Ethernet Ports:	5 × 10/100/1000BASE-T RJ45 (auto MDI/MDI-X)	PoE Standard:	IEEE802.3af/at, Max 30W Per Port
Dimensions:	95 × 70 × 29mm	Weight:	0.25Kg
Casing:	Aluminum, IP40 Protection	Installation:	DIN-Rail & Wall-mount

Mini Industrial 4-Port Gigabit PoE+ Switch + 1-Port Gigabit Uplink 120W

Overview

The LNK-IMC005GP Series is a compact unmanaged industrial Gigabit PoE+ switch with

4 PoE ports and 1 uplink. Designed for harsh environments, it supports a wide 12~48VDC

power input, delivers up to 120W PoE budget, and ensures reliable Ethernet connectivity

for surveillance, wireless, and industrial automation applications.

Features

4 × Gigabit PoE+ ports (30W per port) + 1 × Gigabit uplink

Wide 12~48VDC input, PoE budget up to 120W (48VDC)

Rugged IP40 metal casing, shock & vibration resistant

Operating temperature: -40°C ~ 80°C for harsh environments

Compact design with DIN-Rail / Wall-mount installation

Energy Efficient Ethernet (EEE), CE/FCC certified, MTBF >200,000 hrs

Technical Indexes

Ethernet
Standards:	IEEE 802.3 Ethernet
	IEEE 802.3u Fast Ethernet
	IEEE 802.3ab Gigabit Ethernet
	IEEE 802.3x Full-Duplex Flow Control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE 802.3at Power over Ethernet Plus PSE
	IEEE 802.3af Power over Ethernet Plus
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer:	1Mbits
Packet Length:	10Kbytes
MAC Address Table:	8K
Switch Fabric:	10Gbps/non-blocking
Exchange Property	Backplane bandwidth: 20Gbps; Packet forwarding rate: 14.88Mpps
Connector:	5 10/100/1000BASET RJ45 auto-MDI/MDI-X ports 4 ports with 802.3at PoE+ injector function (Ports 1 to 4)
PoE (Power over Ethernet)
Standard:	IEEE802.3af/at
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
PoE Budget:	Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	12~48VDC (Terminal Block)
Power Consumption:	<125W (Non-PoE<6W)
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
Dimensions (WxDxH):	95 x 70x 29mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
LED Indicators:
PWR	Power
L/A	Link/Activity
PoE	Max 30W per port
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55032:2017
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC005GP	Mini Industrial 4-Port 10/100/1000BASE-T 802.3at PoE + 1-Port 10/100/1000T Ethernet Switch
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately
