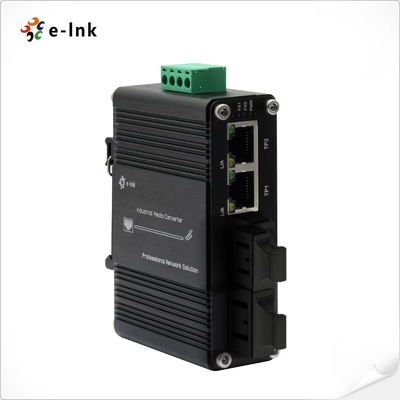

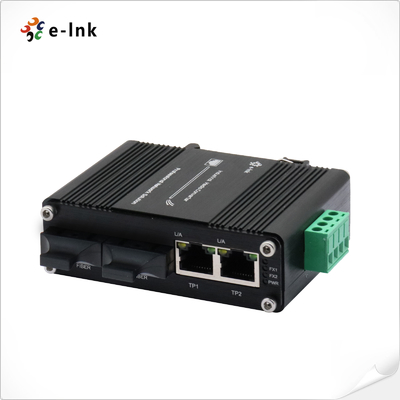

Mini Industrial 2-Port Gigabit Copper + 2-Port Fiber Ethernet Switch -40~75°C
Overview
The LNK-IMC202G Series is a compact and rugged industrial Ethernet switch featuring two
10/100/1000BASE-T RJ45 ports and two 1000Base-X fiber ports supporting SFP/SC/ST/FC
modules. Designed for harsh environments, it supports link fault pass-through, full/half-duplex
auto-negotiation, 9K jumbo frames, and redundant 12~48VDC power input. With DIN-Rail or
wall-mount installation, IP40 aluminum housing, and an extended -40°C to +75°C operating
temperature, it provides reliable high-speed networking for industrial automation, surveillance,
and remote communication applications.
Features
2 × 10/100/1000BASE-T RJ45 ports with auto MDI/MDI-X
2 × 1000Base-X fiber ports, compatible with SFP/SC/ST/FC modules
Link Fault Pass Through (LFP) support
Full/Half-duplex auto-negotiation
9K Bytes Jumbo Frame support

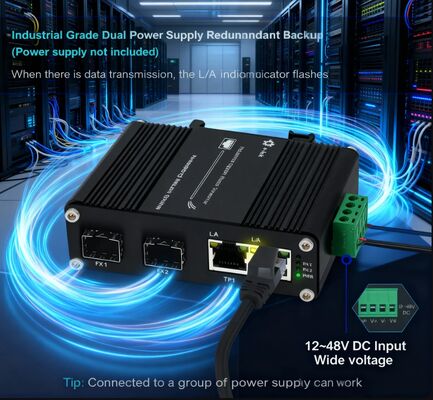

Redundant 12~48VDC power input
Rugged IP40 aluminum housing

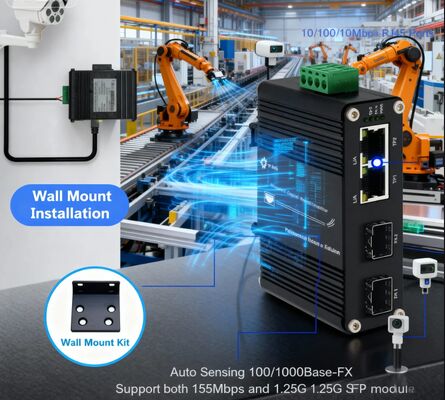

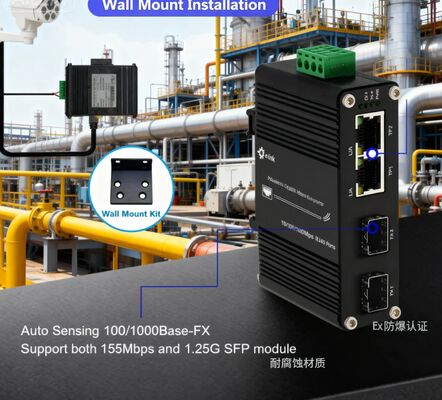

DIN-Rail and wall-mount installation
Operating temperature: -40°C to +75°C
Compact design: 95 × 70 × 30 mm; Weight: 0.25kg
MTBF > 200,000 hrs for long-term reliability
Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.3 10Base-T
|
|
IEEE802.3u 100Base-TX/FX
|
|
IEEE802.3ab 1000Base-T
|
|
IEEE802.3z 1000Base-X
|
|
Processing Type:
|
Store-and-Forward
|
|
Forward Filter Rate:
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
1,488,000pps (1000Mbps)
|
|
Packet Buffer Memory:
|
1 Mbit
|
|
Max Packet Length:
|
9K Bytes
|
|
Address Table Size
|
2K MAC Addresses
|
|
Interface
|
|
Connector:
|
2 x RJ45
|
|
Optical Port:
|
2 x SFP/SC/ST/FC 1000Base-X
|
|
Electrical and Mechanical
|
|
Input Power:
|
12~48VDC, 4-pin terminal block
|
|
Power Consumption:
|
5W Max.
|
|
LED Indicators:
|
|
PWR:
|
Power Status
|
|
RJ45:
|
LINK/Activity
|
|
SFP:
|
LINK
|
|
General
|
|
Dimensions (WxDxH):
|
95 x 70 x 30 mm
|
|
Weight:
|
0.25Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 75°C (-40°F to 167°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Regulatory Approvals
|
|
ISO9001, CE, FCC, RoHS
|
|
EMI:
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024: 2010
|
|
EMS:
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)
|
Ordering Information
|
Model
|
Description
|
|
LNK-IMC202G Series
|
Industrial 2-Port 10/1001000BASE-TX to 2x1000BASE-X SFP/SC/ST/FC Ethernet Switch
|
|
SFP Options
|
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
|
|
► SFP module is to be purchased separately.
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed, Wall Mount Bracket is included.
|
|
Power Options
|
► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block
|
|
► Power Supply is to be purchased separately.
|
