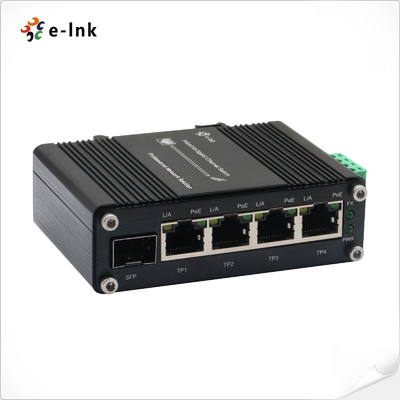

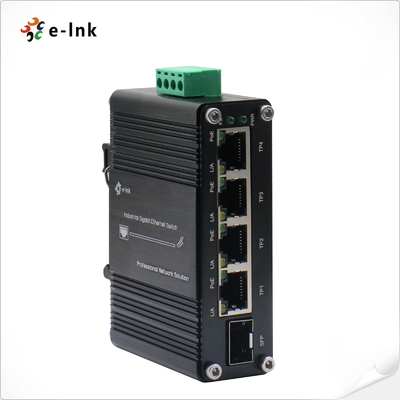

Mini Industrial 4-Port PoE+ Gigabit + 1 SFP Ethernet Switch -40~80°C
Overview
The LNK-IMC104GP-SFP Series is a compact industrial Gigabit Ethernet switch featuring
four 10/100/1000BASE-T PoE+ ports and one dual-speed 100/1000BASE-X SFP slot.
With wide-range 12~48VDC input and built-in voltage booster, it delivers up to 120W PoE
budget to power IP cameras, wireless APs, and other devices. Designed with an IP40
rugged aluminum case, DIN-Rail/wall-mount flexibility, and an extended -40°C to 80°C
operating range, this switch ensures reliable connectivity in demanding industrial
environments such as solar power, transportation, and surveillance networks.
Features
4 × 10/100/1000BASE-T RJ45 ports with IEEE 802.3at PoE+
1 × 100/1000BASE-X SFP slot with auto detection
Wide 12~48VDC input with built-in power booster
Up to 120W PoE budget (48VDC), 90W (24VDC), 60W (12VDC)
Store-and-forward switching with 20Gbps backplane bandwidth
Rugged IP40 aluminum housing, dustproof and durable
DIN-Rail and wall-mount installation options
Extended operating temperature: -40°C to 80°C
MTBF > 200,000 hrs for long-term reliability
Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE 802.3 Ethernet
|
|
IEEE 802.3u Fast Ethernet
|
|
IEEE 802.3ab Gigabit Ethernet
|
|
IEEE 802.3x Full-Duplex Flow Control
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE)
|
|
IEEE 802.3at Power over Ethernet Plus PSE
|
|
IEEE 802.3af Power over Ethernet Plus
|
|
Forward & Filtering Rate:
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
1,488,000pps (1000Mbps)
|
|
Packet Buffer:
|
1Mbits
|
|
Packet Length:
|
10Kbytes
|
|
MAC Address Table:
|
8K
|
|
Switch Fabric:
|
10Gbps/non-blocking
|
|
Exchange Property
|
Backplane bandwidth: 20Gbps;
Packet forwarding rate: 14.88Mpps
|
|
Connector:
|
4 ports with 802.3at PoE+ injector function (Ports 1 to 4)
|
|
Interface
|
|
Connector:
|
4 x RJ45
|
|
Optical Port:
|
1 x SFP 1000Base-X or 100Base-FX (auto detection)
|
|
PoE (Power over Ethernet)
|
|
Standard:
|
IEEE802.3af/at
|
|
Port:
|
RJ45
|
|
Power Pin Assignment
|
4/5(+), 7/8(-)
|
|
PoE Budget:
|
Up to 120-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 80°C (-40°F to 176°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Electrical and Mechanical
|
|
Input Power:
|
12~48VDC (Terminal Block)
|
|
Power Consumption:
|
<125W (Non-PoE<6W)
|
|
Power Input Overload:
|
Automatic Resettable
|
|
Reverse Polarity:
|
Present
|
|
Dimensions (WxDxH):
|
95 x 70x 29mm
|
|
Weight:
|
0.25Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
LED Indicators:
|
|
PWR:
|
Power
|
|
L/A:
|
Link/Activity
|
|
PoE:
|
PoE Status
|
|
Regulatory Approvals
|
|
ISO9001
|
|
EN55022:2010+AC: 2011, Class A
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009
|
|
EN 61000-3-3: 2013
|
|
EN55032:2017
|
|
IEC 61000-4-2: 2008 (ESD)
|
|
IEC 61000-4-3: 2010 (RS)
|
|
IEC 61000-4-4: 2012 (EFT)
|
|
IEC 61000-4-5: 2014 (Surge)
|
|
IEC 61000-4-6: 2013 (CS)
|
|
IEC 61000-4-8: 2009 (PFMF)
|
Ordering Information
|
Model
|
Description
|
|
LNK-IMC104GP-SFP
|
Mini Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SFP Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster
|
|
SFP Options
|
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
|
|
► SFP module is to be purchased separately.
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
|
Power Options
|
► Power Supply is to be purchased separately
|
