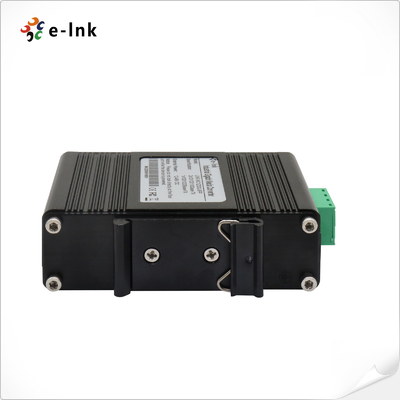

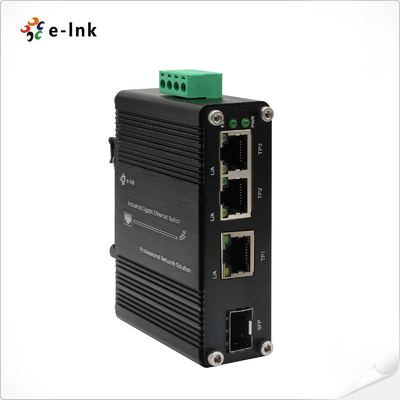

Mini Industrial 3-Port Gigabit + 1 SFP Fiber Ethernet Switch -40~75°C

Large Image : Mini Industrial 3-Port Gigabit + 1 SFP Fiber Ethernet Switch -40~75°C

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, RoHS, FCC, ISO9001
Model Number:	LNK-IMC103G-SFP
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$52-$70
Packaging Details:	Fiber Optic Switch Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	T/T,Western Union,MoneyGram,paypal,Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Ports:	3 × RJ45 (10/100/1000BASE-T), 1 × SFP (100/1000Base-X)	Standards:	IEEE802.3 10/100/1000T, IEEE802.3u/ab/z, IEEE802.3az EEE
Switch Fabric:	12Gbps	Power Input:	12~48VDC, 2-pin Terminal Block; Consumption ≤ 5W
Housing:	IP40 Aluminum Case, DIN-Rail / Wall-mount	Operating Temp.:	-40°C To +75°C; Humidity: 5%–95% (non-condensing)

Mini Industrial 3-Port Gigabit + 1 SFP Fiber Ethernet Switch -40~75°C

Overview

The LNK-IMC103G-SFP Series is a rugged industrial Gigabit Ethernet switch with three

10/100/1000BASE-T RJ45 ports and one dual-speed 100/1000BASE-X SFP slot. Housed

in an IP40-rated aluminum case, it supports DIN-Rail and wall-mount installations. With a

wide operating temperature range of -40°C to +75°C, flexible SFP module compatibility,

and energy-efficient design, it ensures reliable high-speed networking for demanding

applications such as IP surveillance, wireless backhaul, and remote industrial connectivity.

Features

3 × 10/100/1000BASE-T RJ45 ports with auto MDI/MDI-X

1 × 100/1000BASE-X SFP slot with auto detection

Flexible fiber options: single-mode/multi-mode, 1/2 core SFP modules

Store-and-forward switching with 12Gbps switch fabric

IEEE 802.3az Energy Efficient Ethernet (EEE) compliant

Wide operating temperature range: -40°C to +75°C

Rugged IP40 aluminum case with DIN-Rail and wall-mount support

Compact and lightweight design (95 × 70 × 30 mm, 0.25kg)

MTBF > 200,000 hrs, ensuring long-term reliability

Technical Indexes

Ethernet
Standards:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE802.3ab 1000Base-T
	IEEE802.3z 1000Base-X
	IEEE 802.3x Full-Duplex Flow Control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
Processing Type:	Store-and-Forward
Forward Filter Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	4 Mbit
Switch Fabric:	12Gbps
Max Packet Length:	9K Bytes
Address Table Size	2K MAC Addresses
Interface
Connector:	3 x RJ45
Optical Port:	1 x SFP 1000Base-X or 100Base-FX (auto detection)
Electrical and Mechanical
Input Power:	12~48VDC, 2-pin terminal block
Power Consumption:	5W Max.
LED Indicators:
PWR:	Power Status
L/A:	Ethernet LINK Status
FX:	Fiber LINK Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Environmental
Operating Temperature:	-40°C to 75°C (-40°F to 167°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Regulatory Approvals
ISO9001, CE, FCC, RoHS
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC103G-SFP	Mini Industrial 3-Port 10/100/1000T + 1-Port 100/1000X SFP Gigabit Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
