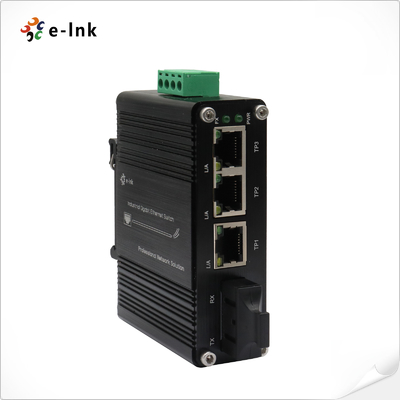

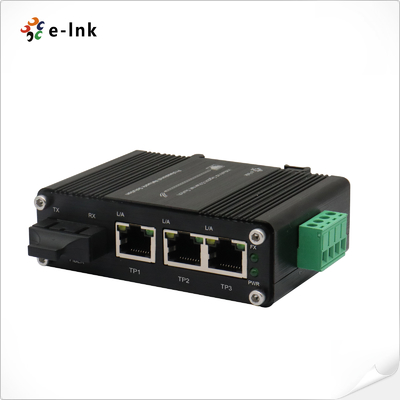

Mini Industrial 3-Port Gigabit + 1 SC Fiber Ethernet Switch -40~75°C

Large Image : Mini Industrial 3-Port Gigabit + 1 SC Fiber Ethernet Switch -40~75°C

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, RoHS, FCC, ISO9001
Model Number:	LNK-IMC103G
Document:	2E-link Video Transmission ...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$57-$77
Packaging Details:	Fiber Optic Switch Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal,Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Ports:	3 X RJ45 (10/100/1000BASE-T), 1 X SC Fiber (1000Base-X)	Standards:	IEEE802.3 10/100/1000T, IEEE802.3z 1000X, IEEE802.3az EEE
Switch Fabric:	12Gbps	Power Input:	12~48VDC, Terminal Block; Consumption ≤ 5W
Housing:	IP40-rated Aluminum, Supports DIN-Rail/Wall-mount	Operating Temp.:	-40°C To 75°C; Humidity: 5%–95% Non-condensing

Mini Industrial 3-Port Gigabit + 1 SC Fiber Ethernet Switch -40~75°C

Overview

The LNK-IMC103G Series is a compact, rugged industrial Gigabit Ethernet switch featuring

three 10/100/1000BASE-T RJ45 ports and one 1000BASE-X SC fiber port. Built with an

IP40 aluminum case and wide operating temperature range (-40°C to 75°C), it ensures

reliable performance in harsh environments. Ideal for connecting IP cameras, wireless

access points, and remote network devices, it provides high-speed, energy-efficient, and

stable networking for industrial applications.

Features

3 x 10/100/1000BASE-T RJ45 ports with auto MDI/MDI-X

1 x 1000Base-X SC fiber port for long-distance transmission

Store-and-forward switching with 12Gbps switch fabric

IEEE 802.3az Energy Efficient Ethernet (EEE) support

Rugged IP40 aluminum case with DIN-Rail & wall-mount options

Wide operating temperature range: -40°C to 75°C

Compact, lightweight design (95 × 70 × 30 mm, 0.25kg)

MTBF > 200,000 hrs, ensuring long-term reliability

Technical Indexes

Ethernet
Standards:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE802.3ab 1000Base-T
	IEEE802.3z 1000Base-X
	IEEE 802.3x Full-Duplex Flow Control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
Processing Type:	Store-and-Forward
Forward Filter Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	4 Mbit
Switch Fabric:	12Gbps
Max Packet Length:	9K Bytes
Address Table Size	2K MAC Addresses
Interface
Connector:	3 x RJ45
Optical Port:	1 x SC 1000Base-X
Electrical and Mechanical
Input Power:	12~48VDC, 2-pin terminal block
Power Consumption:	5W Max.
LED Indicators:
PWR:	Power Status
L/A:	Ethernet LINK Status
FX:	Fiber LINK Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Environmental
Operating Temperature:	-40°C to 75°C (-40°F to 167°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Regulatory Approvals
ISO9001, CE, FCC, RoHS
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC103G	Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch, SC Fiber Port, Multimode, Dual Fiber, 850nm, 550m
LNK-IMC103G-20	Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch, SC Fiber Port, Single Mode, Dual Fiber, 1310nm, 20km
LNK-IMC103GS-20A	Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch, SC Fiber Port, Single Mode, Single Fiber, 1310nm TX/1550nm RX, 20km
LNK-IMC103GS-20B	Mini Industrial 3-Port 10/100/1000T + 1-Port 1000X SC Gigabit Ethernet Switch, SC Fiber Port, Single Mode, Single Fiber, 1550nm TX/1310nm RX, 20km
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
