Industrial 4-port 10/100/1000BASE-T + 2-port 1000BASE-SFP 250m PoE Switch
Industrial 250m Gigabit PoE Switch Overview

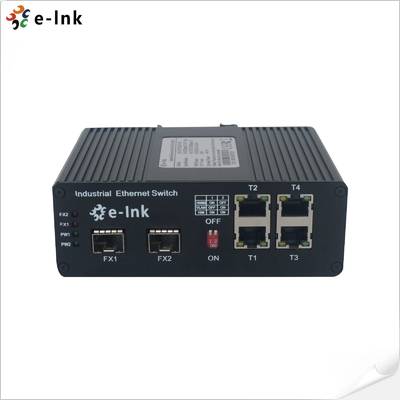

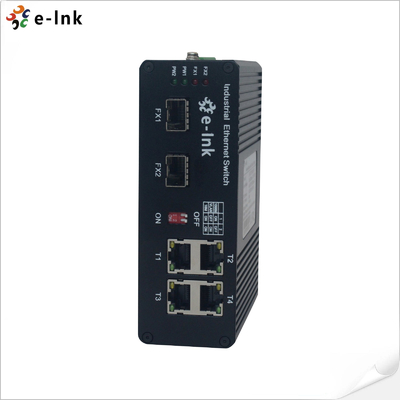

The LNK-GYT204GP-SFP series is a high-performance industrial PoE+ switch featuring
four 10/100/1000Base-TX PoE+ ports (30 W per port) and two 1000Base-SFP fibre uplink ports.
It supports both single-mode and multi-mode fibre for long-distance connectivity of up to 250 m.
Designed for demanding surveillance and industrial applications, the switch delivers power and data over
a single RJ-45 cable to IP cameras, wireless access points (APs), and other powered devices (PDs),
while ensuring fast packet forwarding and high bandwidth for crystal-clear video transmission.
Built for harsh environments, it includes advanced surge protection and static defence circuits
for maximum reliability. Key features such as one-key VLAN mode, QoS prioritisation,
broadcast storm control and network security protection make it ideal for mission-critical
surveillance systems and industrial IoT deployments.
Industrial 250m Gigabit PoE Switch Features
- Transmission distance up to 250 m, ideal for flexible deployment in wireless AP and surveillance projects
- Provides 10 Mbps bandwidth at 250 m when connecting IP cameras
- 4 × 10/100/1000Base-TX PoE ports + 2 × 1000Base-FX fiber ports
- 10/100/1000 Mbps RJ45 ports support full/half-duplex, auto-negotiation, and Auto MDI/MDIX
- Supports IEEE 802.3at PoE+ standard, delivering up to 30W per port
- IEEE 802.3x flow control for stable and reliable data transmission
- Jumbo frame support up to 9K bytes for enhanced throughput efficiency
- Redundant power input design for increased system reliability
- Flexible installation options: wall-mount or DIN-rail
- Wide operating temperature range: -40°C to 80°C (-40°F to 176°F), suitable for harsh industrial environment
Industrial 250m Gigabit PoE Switch Technical Indexes
|
Item
|
Description
|
|
Power
|
Power Supply
|
Industrial Power Adaptor
|
|
Voltage range
|
DC48V~57V
|
|
Consumption
|
＜5W , PoE output < 120W
|
|
Ethernet
|
Ethernet Port
|
1～4 ports:
default mode: 10/100/1000BASE-TX;
CCTV mode:10BASE-T;
SFP:1000BASE-X
|
|
Transmission Distance
|
Downlink port: default mode: 0～100m;
CCTV mode - Cat6: 220m, Cat7: 250m
SFP: depends on SFP module performance
|
|
Cable
|
Cat6/7 network cable
|
|
PoE Protocol
|
IEEE802.3af/at protocol
|
|
PoE Power Supply
|
End-span
|
|
Ethernet
Exchange
Specification
|
Ethernet Standard
|
IEEE802.3 10BASE-T;
IEEE802.3u 100BASE-TX;
IEEE802.3ab 1000BASE-TX;
IEEE802.3z 1000-SX/LX;
IEEE802.3 X
|
|
Packet Buffer
|
2.75M
|
|
MAC Address
|
4K
|
|
Indicator
Status
|
Power
|
Power1, Power2
|
|
Optical Port
|
FX1, FX2
|
|
Ethernet Port
|
1～4 ports : green light indicates network status, yellow light indicates PoE status
|
|
Protection Level
|
Lighting Protection
|
6KV , Per: IEC61000-4-5
|
|
ESD
|
6KV/ 8KV , Per: IEC61000-4-2
|
|
 Working Environment
|
Working Temperature
|
-40℃~75℃
|
|
Storage Temperature
|
-40℃~85℃
|
|
Humidity
(Non-condensing)
|
0~95%
|
|
Mechanical
|
Dimension
(LxWxH)
|
139mm×109mm×50mm
|
|
Out Shell
|
Aluminum
|
|
Color
|
Black
|
|
Weight
|
0.6kg
|
|
Power/Distance
54V
|
Distance
|
100m
|
150m
|
200m
|
250m
|
|
Power
|
26W
|
24W
|
23W
|
20W
|
Industrial 250m Gigabit PoE Switch Ordering Information
|
Model
|
Description
|
|
LNK-GYT204GP-SFP
|
4-Port 10/100/1000Base-T PoE(up to 250m) + 2-Port 1000Base-X SFP Ethernet Switch
|
|
SFP Options
|
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
|
|
► SFP module is to be purchased separately.
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed, Wall Mount Bracket is included.
|
|
Power Options
|
►120W/2.5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
|
|
► Power Supply is to be purchased separately.
|
Industrial 250m Gigabit PoE Switch Application
After-Sales and Warranty Policy
It is composed of online customer service and telephone customer service, providing product consultation,
remote technical support, maintenance and acceptance services.
Service Policy: Three-month replacement and three-year warranty.
Replacement: Within three months of purchasing a series of products, after testing the product failure
by technicians and man-made damage caused by non-natural disasters, the purchaser can directly
go to the purchasing point to replace the same type of products.Or a product of comparable performance.
If there is no trouble in product testing, the original sample will be returned.
Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.
[The following circumstances do not fall within the scope of replacement and free maintenance]
1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
