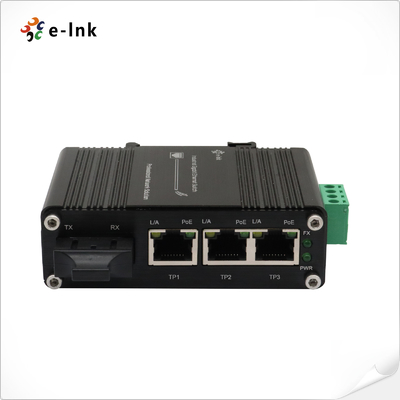

Mini Industrial 3-Port Gigabit PoE+ Switch with 1 SC Fiber 12-48VDC Booster

Large Image : Mini Industrial 3-Port Gigabit PoE+ Switch with 1 SC Fiber 12-48VDC Booster

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, RoHS, FCC, ISO9001
Model Number:	LNK-IMC103GP
Document:	2E-link Video Transmission ...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$78-$95
Packaging Details:	Industrial Ethernet PoE Switch Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	T/T,Western Union,MoneyGram,paypal,Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Ports:	3× 10/100/1000 RJ45 PoE+ (PSE), 1× 1000Base-X SC Fiber	PoE Budget:	90W @ 48VDC / 90W @ 24VDC / 60W @ 12VDC
Switch Fabric:	12Gbps \| Packet Buffer: 4Mbit \| MAC Table: 2K	Forwarding Rate:	1,488,000pps (1Gbps) \| Jumbo Frame: 9K Bytes
Input Power:	12~48VDC Terminal Block \| Power Consumption <95W	Casing:	IP40 Aluminum \| Size: 95×70×30mm \| Weight: 0.3Kg

Mini Industrial 3-Port Gigabit PoE+ Switch with 1 SC Fiber 12-48VDC Booster

Overview

The LNK-IMC103GP is a compact industrial-grade PoE+ switch designed for harsh

environments. It features 3 Gigabit PoE+ ports and 1 Gigabit SC fiber uplink, delivering up

to 90W total PoE power with a wide 12~48VDC input and built-in voltage booster. Housed

in a rugged IP40 aluminum case, this switch ensures reliable operation in extreme

temperatures from -40°C to 75°C, making it an ideal solution for industrial networks, solar

power systems, and outdoor surveillance applications.

Features

3× Gigabit RJ45 PoE+ Ports (802.3af/at) – Up to 90W PoE power budget

1× Gigabit SC Fiber Port – Stable long-distance data transmission

12~48VDC Wide Range Input with integrated voltage booster

Rugged IP40 aluminum housing, DIN-Rail & wall-mount support

Reliable operation in -40°C to +75°C industrial environments

Supports Energy Efficient Ethernet (IEEE 802.3az) for lower power use

Compact design, easy deployment for CCTV, IoT, and industrial automation

Technical Indexes

Ethernet
Standards:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE802.3ab 1000Base-T
	IEEE802.3z 1000Base-X
	IEEE 802.3x Full-Duplex Flow Control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
Processing Type:	Store-and-Forward
Forward Filter Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	4 Mbit
Switch Fabric:	12Gbps
Max Packet Length:	9K Bytes
Address Table Size	2K MAC Addresses
Interface
Connector:	3 x RJ45 with 802.3at PoE+ injector function (Ports 1 to 3)
Optical Port:	1 x SC 1000Base-X
PoE (Power over Ethernet)
Standard:	IEEE 802.3at Power over Ethernet Plus
Standard:	IEEE 802.3af Power over Ethernet
Port:	RJ45
Power Pin Assignment	4/5(+), 7/8(-)
PoE Budget:	Up to 90-watt PoE budget (48VDC), 90-watt PoE budget (24VDC), 60-watt PoE budget (12VDC)
Electrical and Mechanical
Input Power:	12~48VDC, 2-pin terminal block
Power Consumption:	<95W (Non-PoE<6W)
LED Indicators:
PWR:	Power Status
L/A:	Ethernet LINK Status
FX:	Fiber LINK Status
PoE:	PoE Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.3Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Environmental
Operating Temperature:	-40°C to 75°C (-40°F to 167°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Regulatory Approvals
ISO9001, CE, FCC, RoHS
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC103GP	Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 1000X SC Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster, SC Fiber Port, Multimode, Dual Fiber, 850nm, 550m
LNK-IMC103GP-20	Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 1000X SC Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster, SC Fiber Port, Single Mode, Dual Fiber, 1310nm, 20km
LNK-IMC103GPS-20A	Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 1000X SC Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster, SC Fiber Port, Single Mode, Single Fiber, 1310nm TX/1550nm RX, 20km
LNK-IMC103GPS-20B	Mini Industrial 3-Port 10/100/1000T 802.3at PoE + 1-Port 1000X SC Gigabit Ethernet Switch with 12~48VDC Input and Voltage Booster, SC Fiber Port, Single Mode, Single Fiber, 1550nm TX/1310nm RX, 20km
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 12~48VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
