Mini Industrial SFP to 2xGigabit Ethernet Media Converter -40~75°C

Large Image : Mini Industrial SFP to 2xGigabit Ethernet Media Converter -40~75°C

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, RoHS, FCC, ISO9001
Model Number:	The LNK-IMC1200G-SFP
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$55-$69
Packaging Details:	Industrial Ethernet Media Converter Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal,Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Data Rate:	10/100/1000Mbps	Fiber Port:	1 X SFP 1000Base-X Or 100Base-FX (auto-detection)
Ethernet Ports:	2 X RJ45 10/100/1000Base-T (auto MDI/MDI-X)	Input Power:	12~48VDC, 4-pin Terminal Block
Operating Temperature:	-40°C To 75°C (-40°F To 167°F)	Housing Material:	Aluminum Case

Mini Industrial SFP to 2xGigabit Ethernet Media Converter -40~75°C

Overview

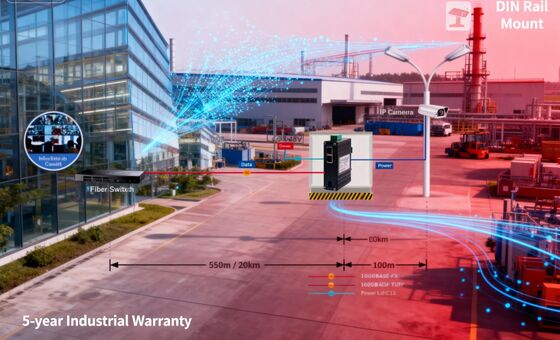

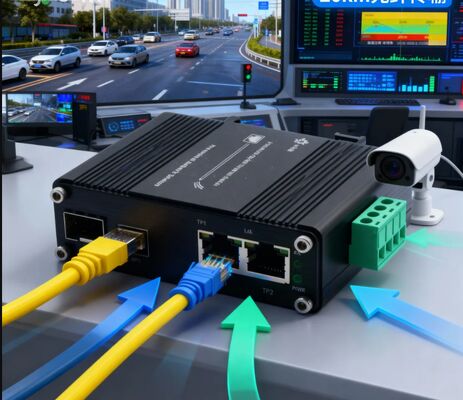

The LNK-IMC1200G-SFP Series is a rugged industrial media converter featuring 1 SFP

port (100/1000Base-X auto-detection) and 2 x 10/100/1000Base-T Ethernet ports. Designed

for harsh industrial environments, it supports full/half-duplex, store-and-forward switching,

jumbo frames up to 9K bytes, and Energy Efficient Ethernet (IEEE 802.3az). Its durable

aluminum housing allows DIN-rail or wall-mount installation and reliable operation from

-40°C to 75°C. Flexible deployment is possible with single-mode or multi-mode fiber SFP

modules.

Features

1 x SFP port (100/1000Base-X, auto-detection) to 2 x 10/100/1000BASE-T

Full/half-duplex with auto-negotiation and auto MDI/MDI-X

Jumbo frame support up to 9K bytes

Energy Efficient Ethernet (IEEE 802.3az)

Hardened aluminum housing for industrial-grade durability

Wide operating temperature: -40°C to 75°C

DIN-rail or wall-mount installation

Technical Indexes

Ethernet
Standards:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE802.3ab 1000Base-T
	IEEE802.3z 1000Base-X
	IEEE 802.3az Energy Efficient Ethernet (EEE)
Processing Type:	Store-and-Forward
Forward Filter Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	1 Mbit
Max Packet Length:	9K Bytes
Address Table Size	2K MAC Addresses
Interface
Connector:	2 x RJ45
Optical Port:	1 x SFP 1000Base-X or 100Base-FX (auto detection)
Electrical and Mechanical
Input Power:	12~48VDC, 4-pin terminal block
Power Consumption:	5W Max.
LED Indicators:
PWR:	Power Status
L/A:	Data LINK Status
SPD:	Ethernet Status
100M/1000M:	Fiber LINK Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Environmental
Operating Temperature:	-40°C to 75°C (-40°F to 167°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Regulatory Approvals
ISO9001, CE, FCC, RoHS
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC1200G-SFP	Hardened 2-Port 10/1001000BASE-TX to 100/1000BASE-X SFP Media Converter
SFP Options	► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
