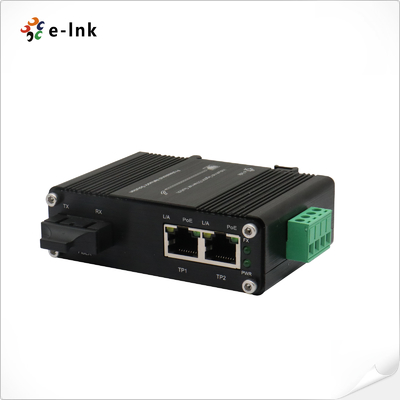

Industrial 1-Port 1000Base-X to 2-Port 10/100/1000Base-T 60W PoE++ Media Converter -40~75°C

Large Image : Industrial 1-Port 1000Base-X to 2-Port 10/100/1000Base-T 60W PoE++ Media Converter -40~75°C

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	CE, RoHS, FCC, ISO9001
Model Number:	LNK-IMC1200GP60
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$85-$105
Packaging Details:	PoE Fiber Media Converter Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	T/T,Western Union,MoneyGram,paypal,Credit Card
Supply Ability:	1000pcs/month

Contact Now

Detailed Product Description

Ethernet Ports:	2× 10/100/1000BASE-T RJ45, Auto MDI/MDI-X	Fiber Port:	1× SC 1000BASE-X
PoE Output:	Up To 60W Over 4-pairs, IEEE802.3af/at Compliant	Power Input:	48~57VDC, 2-pin Terminal Block
Enclosure:	Aluminum, 95×70×30 Mm, 0.25 Kg	Operating Temperature:	-40°C To 75°C

Industrial 1-Port 1000Base-X to 2-Port 10/100/1000Base-T 60W PoE++ Media Converter -40~75°C

Overview

The LNK-IMC1200GP60 Series is a rugged industrial media converter that bridges

1000Base-X fiber to 2-Port 10/100/1000Base-T Ethernet with 60W PoE++ support. It powers

high-demand devices such as IP cameras, wireless access points, and industrial equipment

directly over Ethernet, reducing cabling complexity. Engineered for harsh environments, the

converter operates reliably from -40°C to 75°C and features a robust aluminum housing. With

DIN-rail or wall-mount options, it provides flexible deployment for demanding industrial and

outdoor networking applications.

Features

High-Power PoE++ – Supplies up to 60W over 4-pair Ethernet, IEEE802.3af/at compliant.

Dual Gigabit Ethernet Ports – 2× 10/100/1000BASE-T RJ45 for flexible high-speed

connectivity.

Gigabit Fiber Port – 1× 1000Base-X SC port enables long-distance, high-speed fiber

integration.

Industrial Durability – Operates from -40°C to +75°C; rugged aluminum casing ensures

reliable performance.

Energy Efficient – IEEE 802.3az compliant for reduced energy consumption.

Flexible Installation – Supports both DIN-rail and wall-mount deployment for versatile use.

Technical Indexes

Ethernet
Standards:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE802.3ab 1000Base-T
	IEEE802.3z 1000Base-X
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
Processing Type:	Store-and-Forward
Forward Filter Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	1 Mbit
Max Packet Length:	9K Bytes
Address Table Size	2K MAC Addresses
Interface
Connector:	2 x RJ45
Optical Port:	1 x SC 1000Base-X
Electrical and Mechanical
Input Power:	48~57VDC, 2-pin terminal block
Output Power	48VDC
Power Consumption:	125W Max.
LED Indicators:
PWR:	Power Status
L/A:	Data LINK Status
POE:	PoE Status
100M/1000M:	Fiber LINK Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Environmental
Operating Temperature:	-40°C to 75°C (-40°F to 167°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Regulatory Approvals
ISO9001, CE, FCC, RoHS
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC1200GP60	Mini Industrial 60W PoE++ Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Multimode, 850nm, 550m
LNK-IMC1200GP60-20	Mini Industrial 60W PoE++ Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Single Mode, 1310nm, 20km
LNK-IMC1200GP60S-20	Mini Industrial 60W PoE++ Media Converter, 1-port 1000BASE SC + 2-port 10/100/1000BASE-T 802.3at PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.

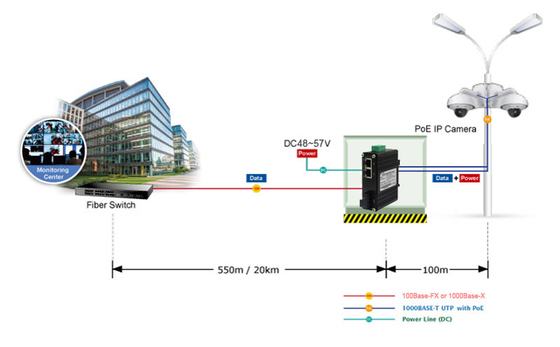

Application
