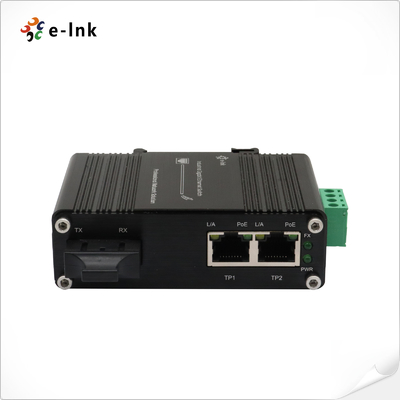

Industrial 1-Port 100Base-FX to 2-Port 10/100Base-T 30W PoE+ Media Converter -40~75°C
Overview
The LNK-IMC1200P Series is an industrial-grade media converter that bridges 100BASE-FX
fiber to 2-Port 10/100BASE-T Ethernet, with 30W PoE+ support. Designed for demanding
environments, this converter delivers power and data over Ethernet, making it ideal for
applications such as IP cameras, wireless access points, and remote devices. With its
rugged aluminum case and wide temperature range from -40°C to 75°C, it ensures reliable
performance even in harsh industrial conditions. Easy to mount on DIN rails or in distribution
boxes, the LNK-IMC1200P is the perfect solution for industrial networking applications
requiring robust performance and flexibility.
Features
Dual Ethernet Ports – 2× 10/100BASE-T RJ45 ports provide enhanced flexibility for device
connections.
High-Power PoE+ – Delivers up to 30W of power over Ethernet (PoE+), compliant with
IEEE802.3at for power-hungry devices.
Rugged Industrial Design – Built to withstand extreme conditions with a temperature range
of -40°C to 75°C.
Flexible Fiber Connectivity – 100BASE-FX SC fiber port for long-distance, high-speed fiber
optic connections.
Energy Efficient – IEEE 802.3az compliant for reduced power consumption and
cost-effective operation.
Easy Installation – Mounts easily on DIN rails or within distribution boxes for versatile
deployment.
Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.3 10Base-T
|
|
IEEE802.3u 100Base-TX/FX
|
|
IEEE802.3x Full duplex and flow control
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE)
|
|
IEEE802.3af Power over Ethernet
|
|
IEEE802.3at Power over Ethernet
|
|
Processing Type:
|
Store-and-Forward
|
|
Forward Filter Rate:
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
Packet Buffer Memory:
|
128K bits
|
|
Max Packet Length:
|
1522 Bytes
|
|
Address Table Size
|
1K MAC Addresses
|
|
Interface
|
|
Connector:
|
2 x RJ45
|
|
Optical Port:
|
1 x SC 100Base-FX
|
|
Electrical and Mechanical
|
|
Input Power:
|
12~48VDC, 2-pin terminal block
|
|
Output Power
|
48VDC
|
|
Power Consumption:
|
65W Max.
|
|
LED Indicators:
|
|
PWR:
|
Power Status
|
|
L/A:
|
Data LINK Status
|
|
POE:
|
PoE Status
|
|
100M/1000M:
|
Fiber LINK Status
|
|
Dimensions (WxDxH):
|
95 x 70 x 30 mm
|
|
Weight:
|
0.25Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 75°C (-40°F to 167°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Regulatory Approvals
|
|
ISO9001, CE, FCC, RoHS
|
|
EMI:
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024: 2010
|
|
EMS:
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)
|
Ordering Information
|
Model
|
Description
|
|
LNK-IMC1200P
|
Mini Industrial PoE Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T 802.3at PoE, SC Fiber Port, Multimode, 1310nm, 2km
|
|
LNK-IMC1200P-20
|
Mini Industrial PoE Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T 802.3at PoE, SC Fiber Port, Single Mode, 1310nm, 20km
|
|
LNK-IMC1200PS-20
|
Mini Industrial PoE Media Converter, 1-port 100BASE SC + 2-port 10/100BASE-T 802.3at PoE, SC Fiber Port, Single Mode Single Fiber, 1310/1550nm, 20km
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
|
Power Options
|
► 75W/1.6A 48VDC Power Supply. Open Wire for Terminal Block
|
|
► Power Supply is to be purchased separately.
|

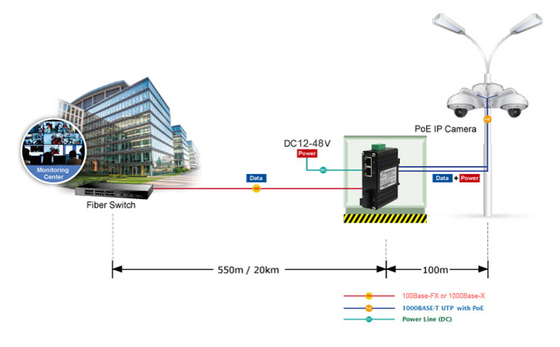

Application
