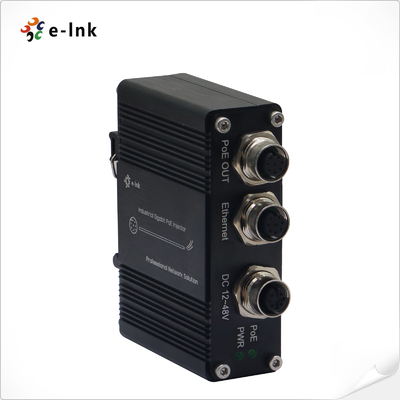

EN50155 Industrial 10/100/1000M/2.5G/5G/10G 30W PoE Injector with M12 connector
Industrial 30W PoE Injector Overview
The E-link EN50155 Compliant PoE Injector delivers high-performance industrial-grade power
for rolling stock, railway, and vehicle applications. This IEEE 802.3at-compliant device features
Intelligent Detection, ensuring safe power delivery only to valid PoE-enabled devices
(10/100/1000/2.5G/5G/10G Base-T(X)). Built for extreme environments, it boasts rugged M12 connectors
for vibration & shock resistance, complying with EN50155 standards. With a wide 12-48V DC input range,
it ensures high availability in mission-critical setups while protecting non-PoE devices from damage.
Industrial 30W PoE Injector Features
-
12~48V DC power input , adaptable to various power supply environments
-
Fully compliant with IEEE 802.3af/at standards, supporting stable PoE power supply
-
Supports 10/100/1000/2.5G/5G/10G Base-TX data and power transmission
-

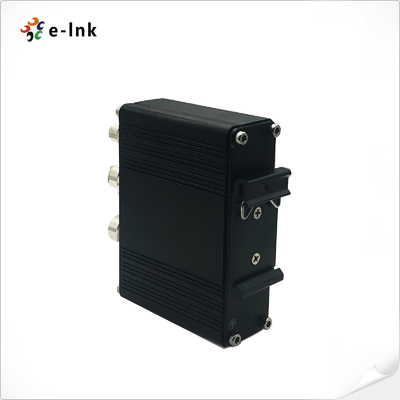

Compatible with DIN rail and wall mounting for flexible deployment
-

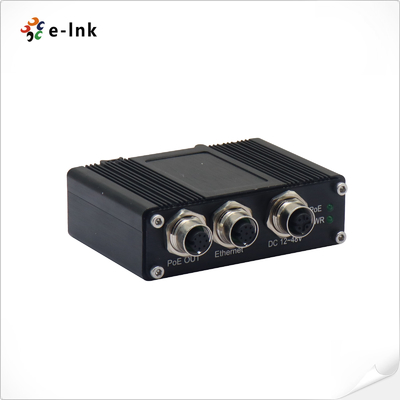

Use Type-A M12 connector to ensure a firm and reliable connection
-
Compact size : 95 × 70 × 30mm, weighs only 0.25KG
-
Aluminum alloy housing , lightweight, excellent heat dissipation and durability
-
Rich LED indicators for easy PoE status diagnosis
-
Industrial-grade wide temperature design : -40°C ~ 80°C (-40°F ~ 176°F), suitable for harsh environments
Industrial 30W PoE Injector Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.3af Power over Ethernet
|
|
IEEE802.3at Power over Ethernet
|
|
Processing Type:
|
Forward
|
|
Half-duplex, Full-duplex
|
|
Forward Filter Rate:
|
1,488,0000pps (10Gbps)
|
|
Cabling:
|
10/100/1000/2.5G/5G/10G Base-T
|
|
Connector:
|
2x M12 connector (8-pin female M12 A-coding)
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 80°C (-40°F to 176°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF:
|
>200,000hrs
|
|
Electrical and Mechanical
|
|
Input Power:
|
12~48V DC on 4-pin female M12 A-Coding
|
|
Power Consumption:
|
36W Max.
|
|
PoE (Power over Ethernet)
|
|
Standard:
|
IEEE802.3af/at
|
|
Port:
|
M12 connector (8-pin female M12 A-coding)
|
|
Max. Power per Port:
|
30W Max
|
|
LED Indicators:
|
|
Power:
|
Power Status
|
|
PoE:
|
PoE Status
|
|
Dimensions (WxDxH):
|
95 x 70 x 30 mm
|
|
Weight:
|
0.25Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
Regulatory Approvals
|
|
ISO9001
|
|
FCC part 15, Class A, EN50155
|
|
EN55022:2006+A1: 2007 Class A
|
|
Surge Protection:
|
|
RJ45: 1KV
|
|
Power: 500V
|
|
ESD: 4KV/8KV
|
Industrial 30W PoE Injector Size
Industrial 30W PoE Injector Ordering Information
|
Model
|
Description
|
|
LNK-INJ601-M12
|
EN50155 Industrial 1-port 10/100/1000M/2.5G/5G/10G M12 PoE Injector 12~48V DC Power Input
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
|
Power Options
|
► Power Supply is to be purchased separately
|
Industrial 30W PoE Injector Application
