Industrial 10/100BASE-T to 100BASE-FX Fiber Media Converter -40~75°C SC Port

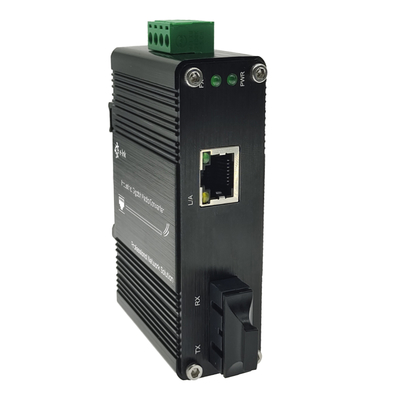

Large Image : Industrial 10/100BASE-T to 100BASE-FX Fiber Media Converter -40~75°C SC Port

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	E-link
Certification:	RoHS, CE, FCC, ISO9001
Model Number:	LNK-IMC1100 Series
Document:	1E-link Communication & Net...og.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1 pcs
Price:	$39-$59
Packaging Details:	Industrial Ethernet Media Converter Standard Export Package
Delivery Time:	2-9 working days
Payment Terms:	L/C,L/C,D/A,D/P,T/T,Western Union,MoneyGram,PayPal
Supply Ability:	Negotiation

Contact Now

Detailed Product Description

Network Interface:	1×RJ45 (10/100BASE-T, Auto MDI/MDI-X), 1×SC (100BASE-FX)	Fiber Type & Distance:	Multi-mode 2km / Single-mode 20km / Single-mode Single Fiber 20km
Power Input:	12~48VDC, 2-pin Terminal Block	Power Consumption:	Max. 3W
Operating Temperature:	-40°C To 75°C (-40°F To 167°F)	Dimensions:	95×70×30 Mm

Industrial 10/100BASE-T to 100BASE-FX Fiber Media Converter -40~75°C SC Port

Overviiew

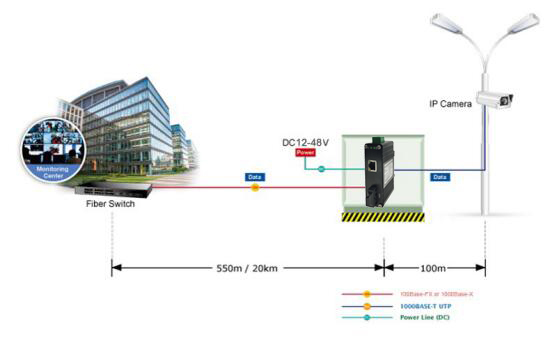

The LNK-IMC1100 Series is a compact and robust industrial media converter designed to

extend Fast Ethernet networks over fiber in harsh environments. It supports seamless

conversion between 10/100BASE-T copper and 100BASE-FX fiber, ensuring reliable and

high-quality data transmission. Built with a rugged aluminum housing and capable of

operating from -40°C to 75°C, this converter is ideal for industrial automation, transportation,

and outdoor surveillance. With flexible DIN-rail and wall-mount installation options, it

provides an easy, secure, and durable solution for critical network deployments.

Features

Reliable Fiber Conversion — Converts between 10/100BASE-T and 100BASE-FX SC fiber.

Industrial-Grade Design — Rugged aluminum housing for extreme environments

(-40°C to 75°C).

Flexible Mounting — Supports both DIN-rail and wall-mount installation.

Energy Efficient — IEEE 802.3az compliant for reduced power consumption.

Comprehensive Diagnostics — LED indicators for power, link, speed, and fiber status.

Technical Indexes

Ethernet
Standards:	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX/FX
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3x Full duplex and flow control
Processing Type:	Store-and-Forward
Forward Filter Rate:	14,880pps (10Mbps)
Forward Filter Rate:	148,800pps (100Mbps)
Packet Buffer Memory:	128K bits
Max Packet Length:	1522 Bytes
Address Table Size	1K MAC Addresses
Interface
Connector:	1x RJ45
Optical Port:	1 x SC 100Base-FX
Electrical and Mechanical
Input Power:	12~48VDC, 2-pin terminal block
Power Consumption:	3W Max.
LED Indicators:
PWR:	Power Status
L/A:	Data LINK Status
SPD:	Ethernet Status
100M/1000M:	Fiber LINK Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Environmental
Operating Temperature:	-40°C to 75°C (-40°F to 167°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Regulatory Approvals
ISO9001, CE, FCC, RoHS
EMI: EN55022:2010+AC: 2011, Class A EN 61000-3-2: 2006+A1: 2009+A2: 2009 EN 61000-3-3: 2013 EN55024: 2010
EMS: IEC 61000-4-2: 2008 (ESD) IEC 61000-4-3: 2010 (RS) IEC 61000-4-4: 2012 (EFT) IEC 61000-4-5: 2014 (Surge) IEC 61000-4-6: 2013 (CS) IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC1100	Mini 10/100Base-TX to 100Base-FX Industrial Media Converter, Multi-mode, 2km, 1310nm, SC
LNK-IMC1100-20	Mini 10/100Base-TX to 100Base-FX Industrial Media Converter, Single-mode, 20km, 1310nm, SC
LNK-IMC1100S-20	Mini 10/100Base-TX to 100Base-FX Industrial Media Converter, Single-mode, Single Fiber, 20km, 1310/1550nm, SC
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
