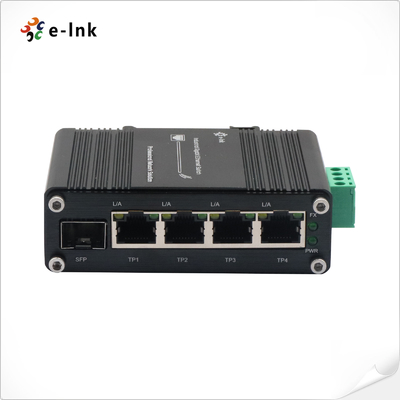

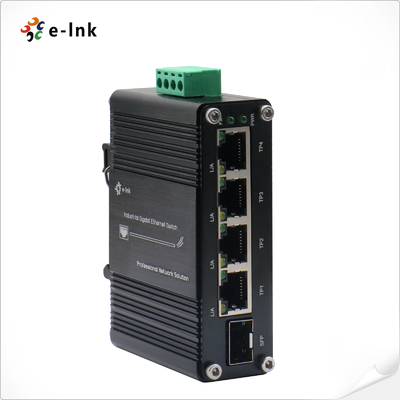

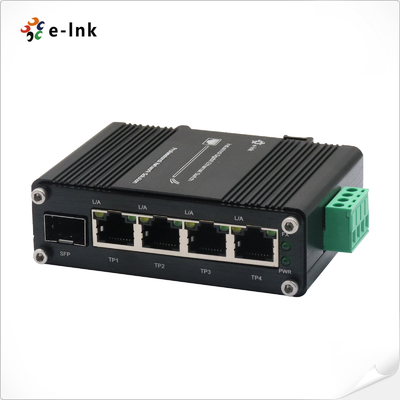

Mini Industrial 4-Port 10/100/1000T + 1-Port 100/1000X SFP Gigabit Ethernet Switch
Mini Industrial SFP Gigabit Ethernet Switch Overview
The LNK-IMC104G-SFP Series is a robust industrial-grade 4-port Gigabit Ethernet switch featuring
an additional 100/1000X SFP slot for flexible fibre connectivity. This compact unmanaged switch has been
designed to withstand the most challenging environments. It operates on a wide 12-48V DC power input range,
making it ideal for industrial automation, outdoor surveillance and harsh conditions. This industrial Ethernet switch
has been engineered to withstand extreme conditions and offers the following benefits:
- The product has been engineered to be robust, with vibration and shock resistance.
- The product's extended operating temperature range ensures reliable performance.
- The product has been certified by CE/FCC and has undergone 100% burn-in testing, ensuring its durability.
- The product is designed for simple plug-and-play operation, with no configuration required.
- The switch's industrial-grade components and rigorous testing ensure reliable network connectivity
- in manufacturing plants, transportation systems, and other challenging environments
- where standard commercial switches would fail. Its cost-effective design provides a dependable
- networking solution without compromising on industrial performance standards.
Mini Industrial SFP Gigabit Ethernet Switch Features
- 100/1000BASE-X SFP slot , supports automatic SFP type detection
- 4 10/100/1000BASE-T RJ45 ports with automatic MDI/MDI-X switching
- 12~48VDC wide range power input , compatible with various power supply environments
- Support IEEE 802.3x flow control to ensure stable network data transmission
- Complies with IEEE 802.3az Energy Efficient Ethernet (EEE) standards to reduce energy consumption

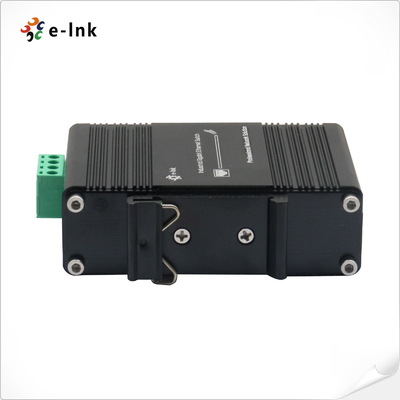

- Supports DIN rail and wall mounting , flexible and convenient installation
- Industrial grade IP40 dustproof and enclosed design , high-strength metal shell, sturdy and durable
- Wide operating temperature range : -40°C to 80°C (-40°F to 176°F) , suitable for extreme environments
Mini Industrial SFP Gigabit Ethernet Switch Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE 802.3 Ethernet
|
|
IEEE 802.3u Fast Ethernet
|
|
IEEE 802.3ab Gigabit Ethernet
|
|
IEEE 802.3x Full-Duplex Flow Control
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE)
|
|
Forward & Filtering Rate:
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
1,488,000pps (1000Mbps)
|
|
Packet Buffer:
|
1Mbits
|
|
Packet Length:
|
10Kbytes
|
|
MAC Address Table:
|
8K
|
|
Switch Fabric:
|
10Gbps/non-blocking
|
|
Exchange Property
|
Backplane bandwidth: 20Gbps;
Packet forwarding rate: 14.88Mpps
|
|
Connector:
|
4 10/100/1000BASET RJ45 auto-MDI/MDI-X ports
|
|
Interface
|
|
Connector:
|
4 x RJ45
|
|
Optical Port:
|
1 x SFP 1000Base-X or 100Base-FX (auto detection)
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 80°C (-40°F to 176°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Electrical and Mechanical
|
|
Input Power:
|
12~48VDC (Terminal Block)
|
|
Power Consumption:
|
<6W
|
|
Power Input Overload:
|
Automatic Resettable
|
|
Reverse Polarity:
|
Present
|
|
Dimensions (WxDxH):
|
95 x 70x 29mm
|
|
Weight:
|
0.25Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
LED Indicators:
|
|
PWR:
|
Power
|
|
L/A:
|
Link/Activity
|
|
SPD
|
Data Rate
|
|
Regulatory Approvals
|
|
ISO9001
|
|
EN55022:2010+AC: 2011, Class A
|
|
EN 61000-3-2: 2006+A1: 2009+A2: 2009
|
|
EN 61000-3-3: 2013
|
|
EN55032:2017
|
|
IEC 61000-4-2: 2008 (ESD)
|
|
IEC 61000-4-3: 2010 (RS)
|
|
IEC 61000-4-4: 2012 (EFT)
|
|
IEC 61000-4-5: 2014 (Surge)
|
|
IEC 61000-4-6: 2013 (CS)
|
|
IEC 61000-4-8: 2009 (PFMF)
|
Mini Industrial SFP Gigabit Ethernet Switch Ordering Information
|
Model
|
Description
|
|
LNK-IMC104G-SFP
|
Mini Industrial 4-Port 10/100/1000T + 1-Port 100/1000X SFP Gigabit Ethernet Switch
|
|
SFP Options
|
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
|
|
► SFP module is to be purchased separately.
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
|
Power Options
|
► Power Supply is to be purchased separately
|
Mini Industrial SFP Gigabit Ethernet Switch Application
After-Sales and Warranty Policy
It is composed of online customer service and telephone customer service,
providing product consultation, remote technical support, maintenance and acceptance services.
Service Policy: Three-month replacement and three-year warranty.
Replacement: Within three months of purchasing a series of products, after testing the product failure
by technicians and man-made damage caused by non-natural disasters, the purchaser can directly
go to the purchasing point to replace the same type of products.Or a product of comparable performance.
If there is no trouble in product testing, the original sample will be returned.
Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.
[The following circumstances do not fall within the scope of replacement and free maintenance]
1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
