Industrial Ethernet Switch PoE+ 12-48VDC Input Power Booster 120W DIN Rail Mount

Mini Industrial 4-Port 10/100/1000T 802.3at PoE + 1-Port 100/1000X SFP Ethernet Switch with 12~48VDC Input and Voltage Booster


Mini Industrial SFP Ethernet Switch Overview

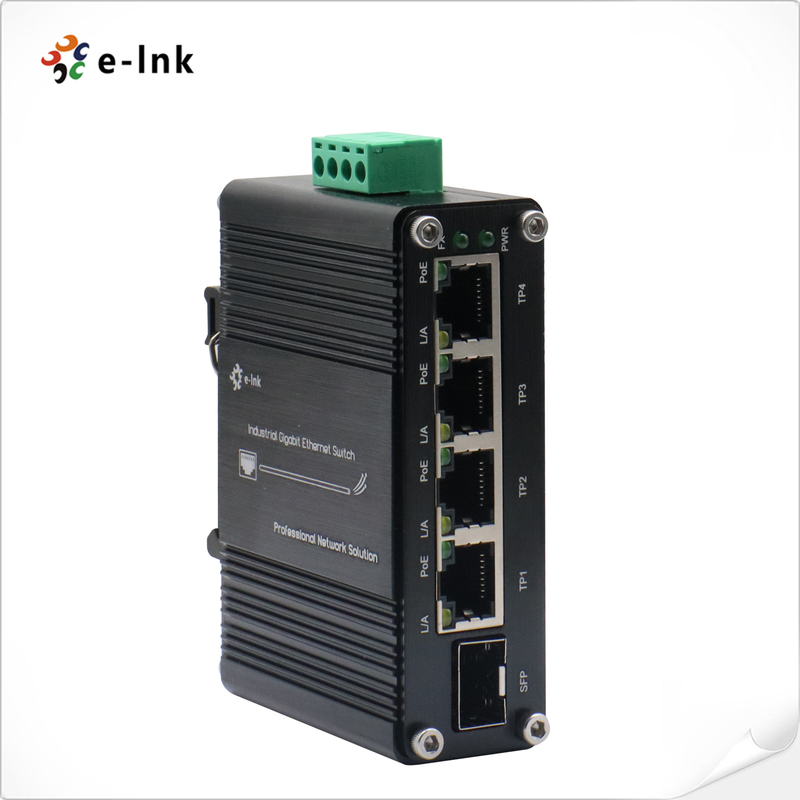

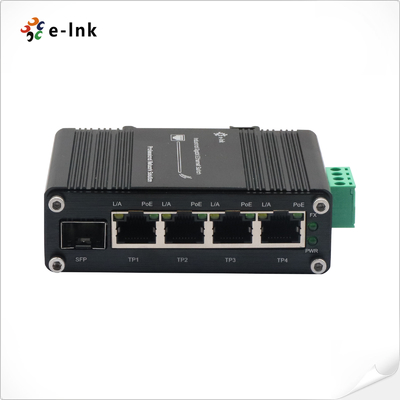

The LNK-IMC104GP-SFP Series represents a specialized industrial-grade networking solution engineered for off-grid and solar-powered deployments. This compact switch integrates 4x10/100/1000BASE-T PoE+ ports compliant with IEEE 802.3at standard, along with one 100/1000BASE-X SFP fiber optic slot, providing both electrical and optical connectivity options. The integrated voltage booster technology ensures stable operation with wide 12-48V DC input range, making it particularly suitable for renewable energy applications.

Designed to meet rigorous industrial requirements, this unmanaged Ethernet switch delivers exceptional reliability in challenging environmental conditions. Its robust construction provides inherent resistance to mechanical stress, vibration, and thermal extremes, maintaining consistent performance in temperature-sensitive applications from remote outdoor installations to mobile field operations.

Certified to CE and FCC standards, each unit undergoes comprehensive 100% burn-in testing to verify long-term operational durability. The LNK-IMC104GP-SFP offers an optimized connectivity platform for solar monitoring systems, agricultural IoT networks, and remote surveillance applications, delivering plug-and-play simplicity with enhanced power efficiency for sustainable industrial networking solutions.

Mini Industrial SFP Ethernet Switch Features

• Flexible Fiber Uplink Capability
  Equipped with 100/1000BASE-X SFP interface supporting automatic fiber optic transceiver detection, enabling seamless integration with both multi-mode and single-mode fiber backbone networks.

• High-Power PoE+ Port Configuration
  Four auto-negotiation Gigabit RJ45 ports with integrated IEEE 802.3at PoE+ injectors deliver up to 30W per port, providing simultaneous data and power connectivity for high-demand devices.

• Advanced Voltage Boosting Technology
  Integrated DC-DC power conversion circuitry maintains stable PoE output across 12-48V input range, ensuring consistent performance even with fluctuating solar or battery power sources.

• Intelligent Traffic Management
  Implements IEEE 802.3x flow control with full-duplex backpressure mechanism, preventing data packet loss during network congestion while optimizing bandwidth utilization.

• Versatile Mounting System
  Designed for universal DIN-rail attachment and flexible wall-mount installation, facilitating rapid deployment in control cabinets, electrical enclosures, and outdoor weatherproof boxes.

• Dynamic PoE Power Allocation
  Features smart power budgeting with maximum output of 120W (48V input), 90W (24V input), and 60W (12V input), automatically adjusting power distribution according to connected device requirements.

• Industrial-Grade Enclosure Design
  Constructed with IP40-rated sealed metal housing providing complete protection against dust intrusion and mechanical damage, ensuring long-term reliability in demanding outdoor environments.

• Extended Thermal Operation Range
  Maintains full operational stability across extreme temperatures from -40°C to 80°C, certified for deployment in arctic conditions and high-temperature industrial applications without performance degradation.

• Auto-Negotiation Ethernet Switching
  Supports automatic speed and duplex mode detection across all copper ports, enabling plug-and-play connectivity with mixed-speed devices while maintaining optimal data transfer rates.

Mini Industrial SFP Ethernet Switch Technical Indexes

Mini Industrial SFP Ethernet Switch Ordering Information

Mini Industrial SFP Ethernet Switch Application

• Solar-Powered and Off-Grid Communication Systems
  Provides reliable network infrastructure for remote solar farms and off-grid installations, enabling fiber-optic backhaul connectivity and PoE+ powered monitoring equipment through efficient DC power utilization and wide temperature operation.

• Intelligent Transportation and Roadside Infrastructure
  Supports traffic management systems with fiber optic connectivity and PoE+ for roadside units, vehicle detection sensors, and variable message signs, maintaining operation across extreme weather conditions.

• Industrial IoT and Automation Networks
  Enables machine-to-machine communication in manufacturing facilities, connecting sensors, controllers, and inspection cameras through Gigabit PoE+ ports while withstanding harsh industrial environments.

• Mobile and Temporary Deployment Solutions
  Ideal for rapid deployment in temporary sites, emergency response vehicles, and military field operations with flexible power input options and robust vibration-resistant construction.

• Outdoor Security and Surveillance Networks
  Powers high-resolution PTZ cameras and access control systems through PoE+ while providing fiber uplink capability for long-distance video transmission in perimeter security applications.

• Agricultural Technology and Precision Farming
  Supports smart agriculture applications with PoE+ for environmental sensors, automated irrigation controllers, and monitoring cameras in remote field locations using solar power systems.

• Utility and Energy Management Infrastructure
  Provides network connectivity for smart grid equipment, substation automation systems, and distributed energy resources with fiber optic reliability and industrial-grade protection.

• Telecommunications Network Edge Deployment
  Serves as compact access equipment for telecom operators, enabling fiber to the antenna (FTTA) and small cell deployments with power boosting capability for extended reach applications.
