Mini Industrial 1-Port 100/1000X SFP to 2-Port 10/100/1000T Ethernet Media Converter
Mini Industrial Media Converter Overview

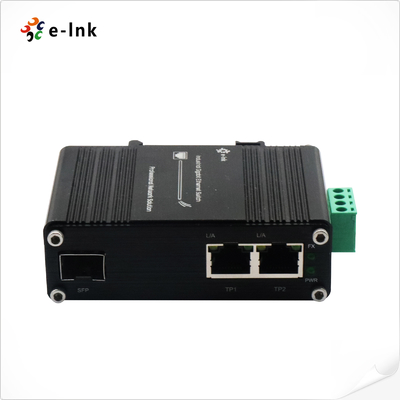

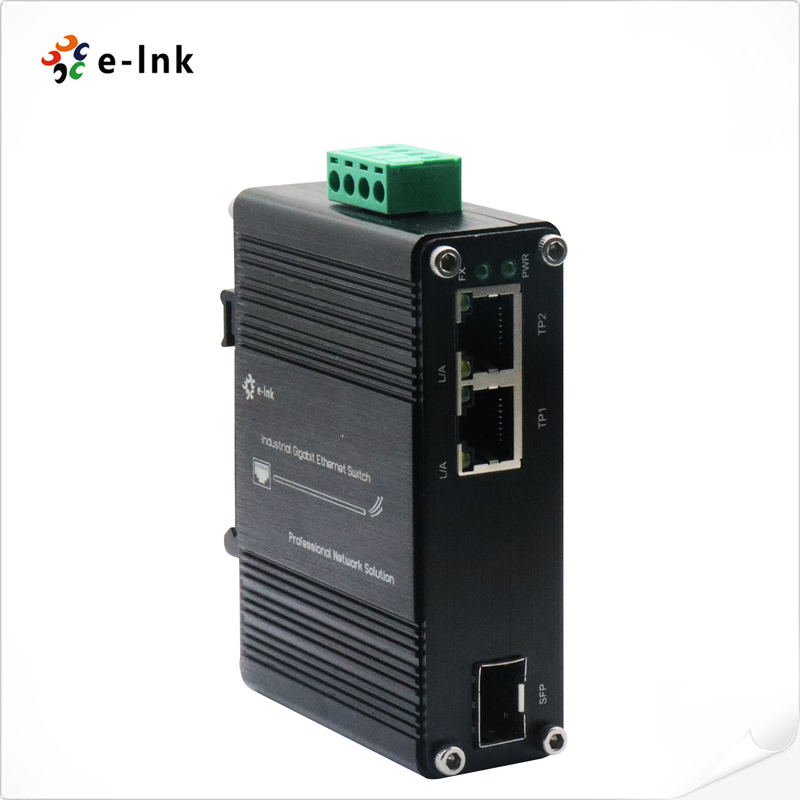

The LNK-IMC1200G-SFP Series Industrial DIN Rail Gigabit Media Converter is a reliable solution
for extending Ethernet over fiber in harsh environments. This hardened media converter has been designed
with a rugged enclosure and is compliant with EN55022 standards. It is able to operate in extreme temperatures
ranging from -40°C to +75°C, making it ideal for industrial automation, transportation and outdoor applications.
This Gigabit media converter is equipped with 10/100/1000Base-T copper ports and 100/1000Base-X SFP slots,
providing users with a range of flexible fibre options. These options include external SFP modules for single-mode
or multi-mode fibre(1 or 2-core) offering enhanced versatility. The Ethernet port supports full-duplex
and half-duplex modes for seamless connectivity and high-speed data transmission.
The LNK-IMC1200G-SFP is designed for straightforward installation and reliable performance
in critical networks, thanks to its DIN rail mounting and wide power input compatibility. This product is ideal
for extending network distances of up to 120 km when used with the appropriate SFP modules.
Mini Industrial Media Converter Features
- Dual Gigabit Ethernet Ports:
Features 2× 10/100/1000BASE-T RJ45 ports with auto MDI/MDI-X for simplified and flexible device connectivity.
- Flexible Fiber Connectivity:
Includes 1× SFP slot supporting auto-detection for both 100Base-FX and 1000Base-X, enabling reliable long-distance fiber optic transmission.
- Advanced Network Performance:
Supports auto-negotiation and full/half-duplex modes to optimize data flow and network efficiency.
- Energy-Efficient Operation:
Complies with IEEE 802.3az (Energy-Efficient Ethernet) to significantly reduce power consumption during low data activity.
- Wide-Range Power Input:
Accepts 12~48VDC via terminal block, offering adaptability to various industrial power sources.
- Versatile Mounting Options:
Supports both DIN-Rail and wall-mount installation for seamless integration into control cabinets or panels.
- Industrial-Grade Reliability:
Built with a hardened design capable of operating in temperatures from -40°C to +75°C (-40°F to +167°F), ensuring performance in harsh environments.
Mini Industrial Media Converter Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.3 10Base-T
|
|
IEEE802.3u 100Base-TX/FX
|
|
IEEE802.3ab 1000Base-T
|
|
IEEE802.3z 1000Base-X
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE)
|
|
Processing Type:
|
Store-and-Forward
|
|
Forward Filter Rate:
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
1,488,000pps (1000Mbps)
|
|
Packet Buffer Memory:
|
1 Mbit
|
|
Max Packet Length:
|
9K Bytes
|
|
Address Table Size
|
2K MAC Addresses
|
|
Interface
|
|
Connector:
|
2 x RJ45
|
|
Optical Port:
|
1 x SFP 1000Base-X or 100Base-FX (auto detection)
|
|
Electrical and Mechanical
|
|
Input Power:
|
12~48VDC, 4-pin terminal block
|
|
Power Consumption:
|
5W Max.
|
|
LED Indicators:
|
|
PWR:
|
Power Status
|
|
L/A:
|
Data LINK Status
|
|
SPD:
|
Ethernet Status
|
|
100M/1000M:
|
Fiber LINK Status
|
|
Dimensions (WxDxH):
|
95 x 70 x 30 mm
|
|
Weight:
|
0.25Kg
|
|
Casing:
|
Aluminum Case
|
|
Mounting Options:
|
DIN-Rail / Wall-mount
|
|
Environmental
|
|
Operating Temperature:
|
-40°C to 75°C (-40°F to 167°F)
|
|
Storage Temperature:
|
-40°C to 85°C (-40°F to 185°F)
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
MTBF
|
> 200,000 hrs
|
|
Regulatory Approvals
|
|
ISO9001, CE, FCC, RoHS
|
|
EMI:
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024: 2010
|
|
EMS:
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)
|
Mini Industrial Media Converter Ordering Information
|
Model
|
Description
|
|
LNK-IMC1200G-SFP
|
Hardened 2-Port 10/1001000BASE-TX to 100/1000BASE-X SFP Media Converter
|
|
SFP Options
|
► SFP option. Please select your SFP on our SFP Options Page (Industrial SFP).
|
|
► SFP module is to be purchased separately.
|
|
Mounting Options
|
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
|
|
Power Options
|
► 24W/1A 24VDC Power Supply. Open Wire for Terminal Block
|
|
► Power Supply is to be purchased separately.
|
Mini Industrial Media Converter Application
