Industrial PoE Injector, EN50155 Standard, M12 Interface, Wide Voltage 12~48V DC

EN50155 Industrial 10/100/1000M 90W PoE Injector with M12 connector

PoE Injector Overview

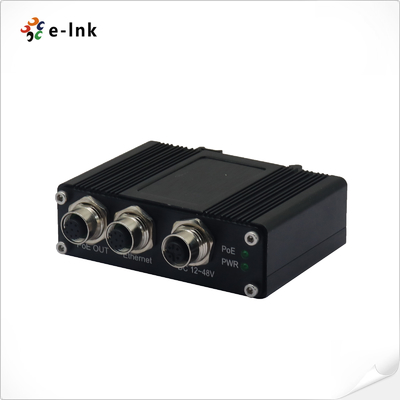

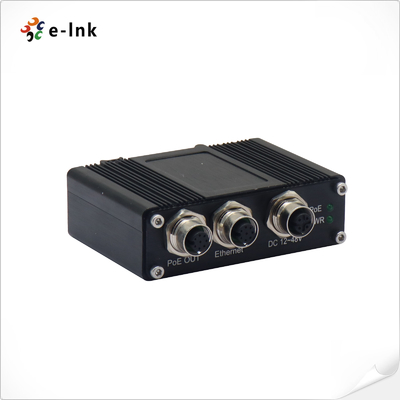

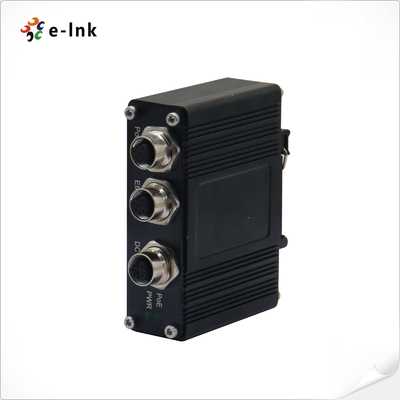

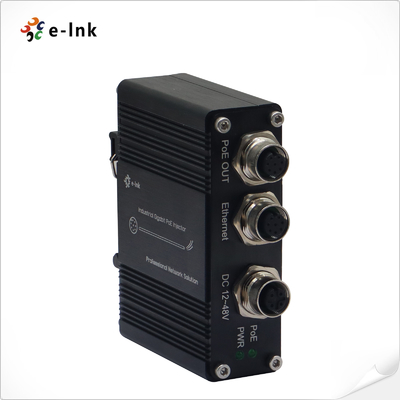

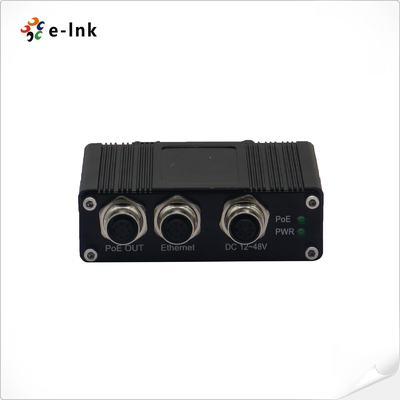

The E-link LNK-INJ301-90-M12 is an industrial-grade PoE injector compliant with the EN50155 standard , designed for harsh industrial applications such as railways, rolling stock, and rail transit. Compliant with the IEEE 802.3bt standard , it provides one 10/100/1000Base-T(X) PoE output port and features intelligent detection , supplying power only when a valid PoE device is detected, preventing damage to non-PoE devices. Its M12 connector ensures vibration and anti-loosening, making it suitable for high-shock and vibration environments. It supports a wide input voltage range of 12-48V DC , making it suitable for high-availability applications. Its high reliability, stable power supply, and intelligent protection make it an ideal choice for applications such as rail transit, vehicle networks, and industrial automation.

PoE Injector Features

► 12~48V DC Power Input

► Fully compliant with IEEE802.3af/at/bt

► Support 10/100/1000Base-TX for power and data output

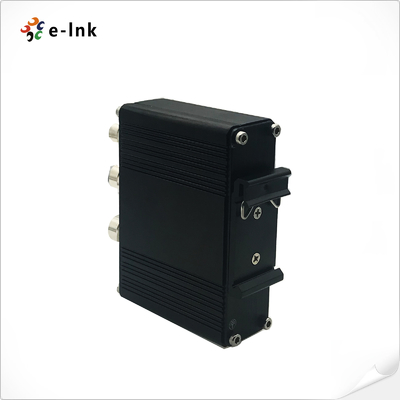

► Support DIN-Rail & Wall-mount installation

► Use Type-A M12 connectors to ensure tight and robust connections

► Small Size: 95 x 70 x 30mm

► Weight: 0.25KG

► Aluminum Case

► Extensive LED indicators for PoE diagnostics

► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature

PoE Injector Technical Indexes

PoE Injector Order Information

PoE Injector Application
