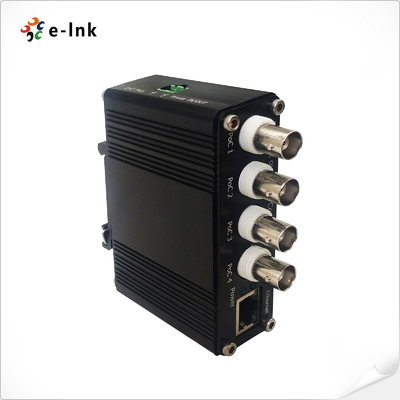

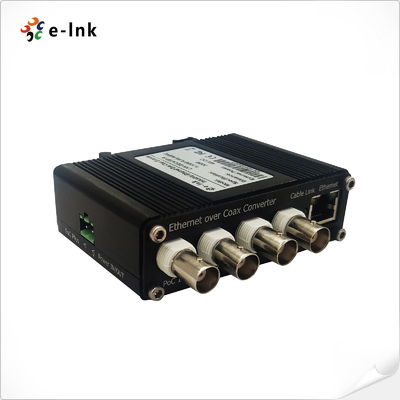

Coaxial to Ethernet Receiver DIN Rail Mount Ideal for Remote Network Expansion

DIN-Rail Receiver of 4-Port Coax to 1-port 10/100Base-TX Ethernet Switch with PoC

DIN-Rail Receiver of 4-Port Coax​ Overview

This DIN-rail EOC receiver, used in conjunction with the LNK-DEC110P-T transmitter, aggregates

four 10/100Base-TX Ethernet signals over coaxial cable to a single 10/100Mbps Ethernet port,

with a maximum transmission distance of 800 meters. Supporting PoC technology, it eliminates

the need for additional power at the transmitter or PoE-enabled IP camera. It's ideal for

upgrading analog surveillance systems to network-based systems using existing coaxial cables and

is widely used in CCTV system upgrades and remote network expansion.

DIN-Rail Receiver of 4-Port Coax Features

• Coaxial Network Extension:
  Extends Ethernet security links over existing coaxial cables, enabling seamless integration with analog infrastructure.

• High-Speed Full-Duplex Communication:
  Delivers 1000Mbps full-duplex data transmission for real-time video and data transfer.

• Multi-Device Connectivity:
  Supports connection of up to 4× LNK-DEC110P decoders and IP cameras over a single coaxial line.

• Power over Coaxial (PoC):
  Transmits both power and data over coaxial cable (RG59/U), simplifying installation and reducing wiring needs.

• Long-Distance Transmission:
  Achieves transmission distances of up to 800 meters over coaxial cable.

• Asymmetric Data Rates:
  Provides data rates up to 40Mbps (downlink) and 10Mbps (uplink) per port.

• Auto Cable Adaptation:
  Features auto MDI/MDI-X for automatic detection and correction of straight-through and crossover cables.

• Flexible Power Input:
  Supports external 48~57VDC power input for broad compatibility with industrial power systems.

• Dual Mounting Options:
  Supports both DIN-rail and wall-mount installation for versatile deployment in security and surveillance environments.

DIN-Rail Receiver of 4-Port Coax Technical Indexes

DIN-Rail Receiver of 4-Port Coax Dimension & Size

DIN-Rail Receiver of 4-Port Coax Ordering Information

DIN-Rail Receiver of 4-Port Coax Application
